2. Connect the Charger BATTERY port to the Battery.
WARNINGS!
• Be sure the external battery meets the requirements given at the
beginning of this section.
• Be sure AC power feed to the Charger is DISCONNECTED before
connecting or disconnecting the Charger to the battery.

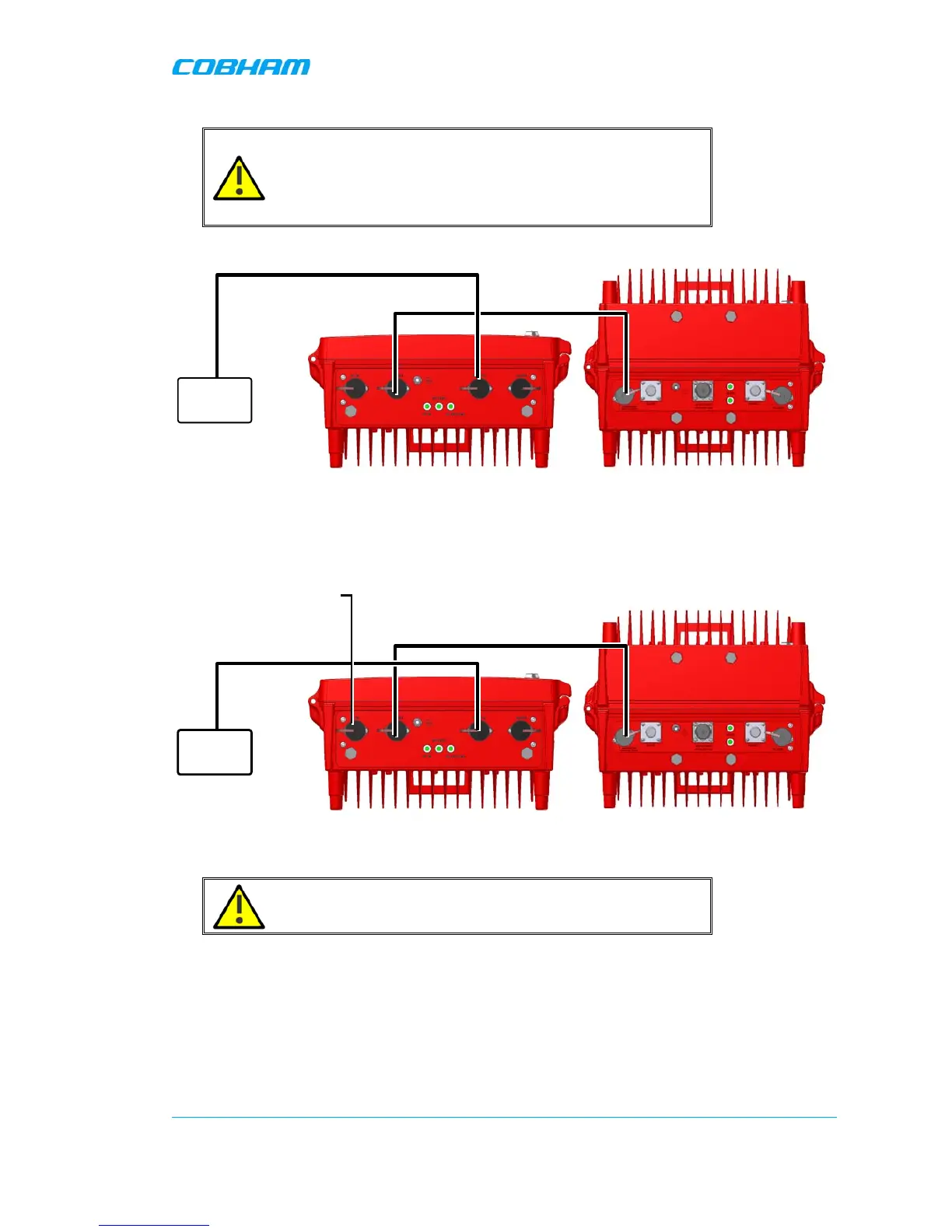

Figure 4-9 Battery Charger to Booster Power Connections
3. Connect the Charger AC IN to 110 VAC power outlet.
Figure 4-10 Battery Charger to Booster Power Connections
4. Recycle power to the Battery Charger.
WARNINGS!
(After installation), after connecting or
disconnecting battery, always recycle AC power to the Battery
Charger.
EXTERNAL
BATTERY
Charger to Battery
EXTERNAL
BATTERY
110 VAC feed
