C002332_02_CR3 User Manual - 11
Save Settings

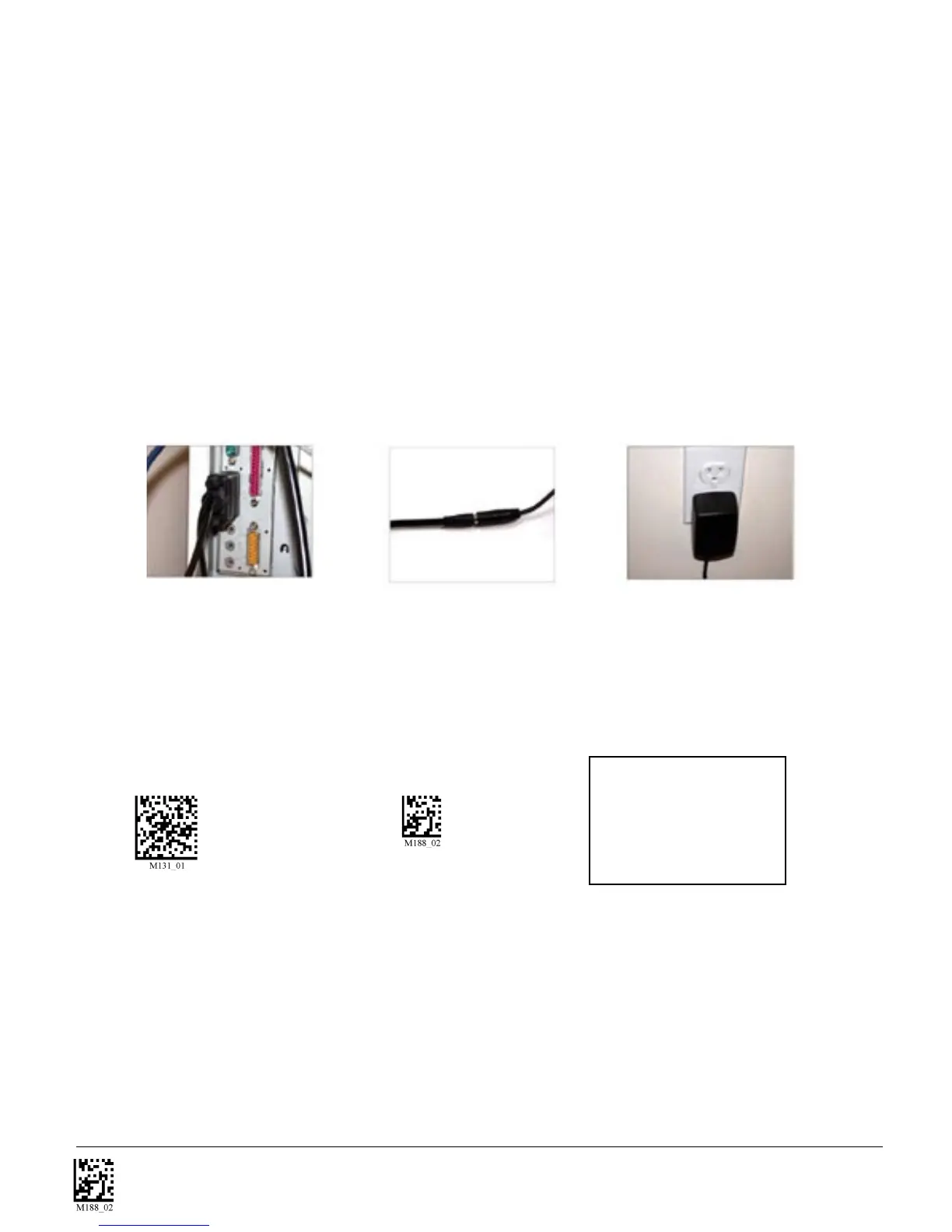

1.6.4 - RS232 Cable Installation Guide
To connect the CR3 to your host computer via RS232 interface:
1. Make sure the RS232 cable is sufficiently attached to your unit.
2. Connect the RS232 interface cable to your host computer (Figure 1.10). If you are unsure of the proper
location to connect the RS232 cable please consult the manual of your host computer.
3. The RS232 interface should have come with a power supply. Plug the power supply adapter into the
RS232 interface cable (Figure 1.11) and then plug the power adapter into a wall socket (Figure 1.12). The
RS232 interface does not require additional power. However, if you are using the RS232 interface and
utilizing Batch functionality, please read the Important Note in batch section. If you are using the 1950 mAH
battery for batch mode, the CR3 will recharge the battery whenever the unit is a attached to a RS232 cable
that is plugged into a wall socket.
4. The CR3 will power on automatically.
5. Scan the RS232 One Way Mode code then the Save Settings code to configure reader:
RS232 One Way Mode Save Settings
6. Your CR3 unit should be ready for use. Open the application on your host computer that will receive
scanned data and begin scanning.
Figure 1.11
Figure 1.10
Figure 1.12
RS232 Factory Default Settings
Mode: RS232 One Way Mode
Max Range
Baud Rate: 57600
Stop Bits: 1
Data Bits: 8
Parity: None
