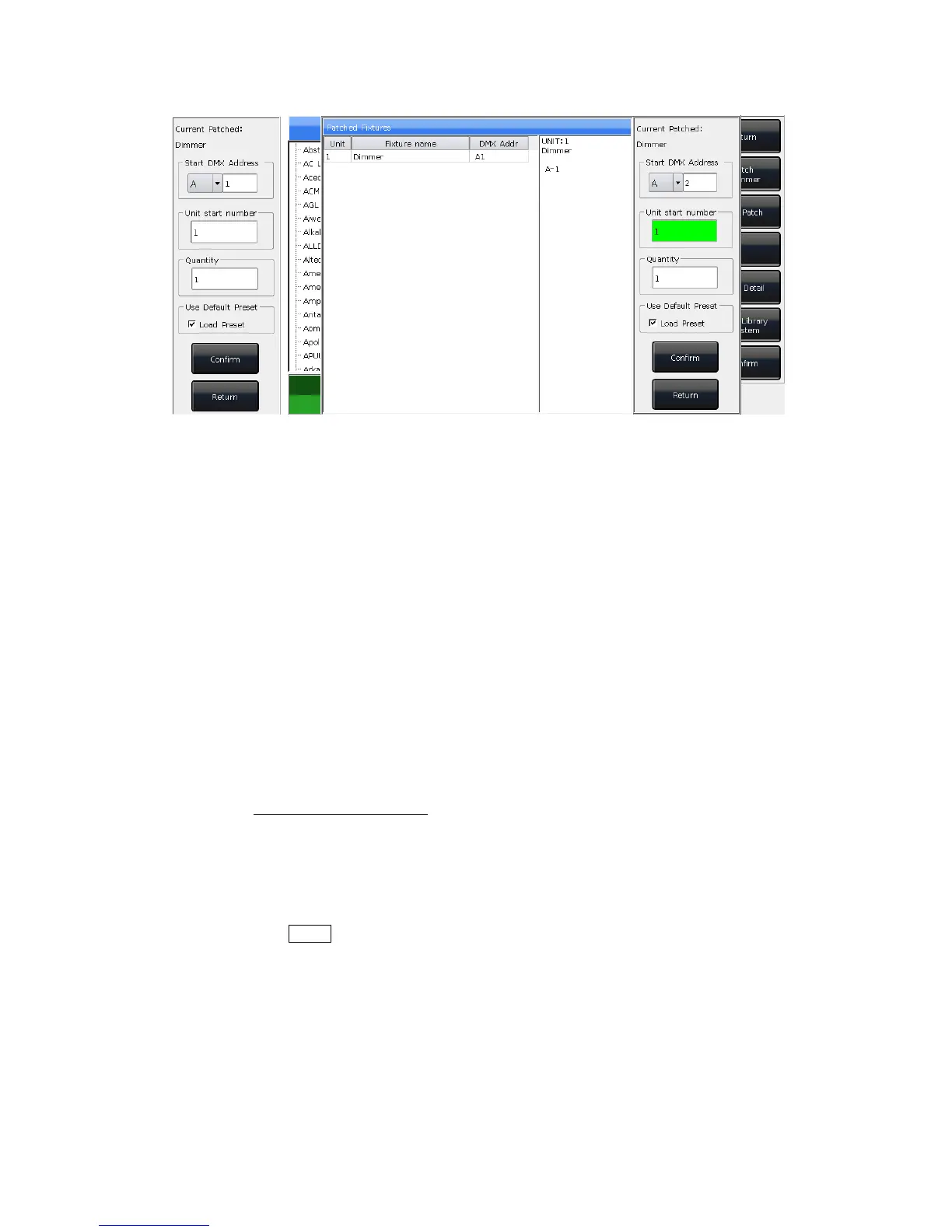

Photo 1 Photo 2
 You can also patch multiple dimmer channels on the same unit key. For example, you can
set the same “yyy” value on option “Unit start number” when patch dimmer. In that
case, if the key which had been patched, the blank will display in Green. The DMX
address will increase one after patched. (see photo 2 above)
 Press [Exit] to quit to “LIVE SHOW”.
2.2.2. Patch Intelligent Fixtures
There is a bit different on patching between intelligent fixtures and dimmer channels.
Because intelligent fixture has more attributes to control, such as Pan, Tilt, Colour and Gobo,
but dimmer channel has only one attribute, intensity. To control the intelligent fixture needs
library, you must find out and patch its corresponding library.
There are two kinds of fixture libraries for your choice in MINI 1000.
1> System library
MINI 1000 has its own system library inside. Users can download the latest library file
from http://www.codelight.com
for updating;
2> User library
If you can not find out your library in system, MINI 1000 offers you multi-way to create
or edit your library. (We will introduce you how to create or edit the user library on
chapter 8.3)
 Press Patch;
 Press [Patch New Fixture];
 Press [Used Library = System], can switch to [Used Library = User];

Code MINI 1000 Specifications

Power

power supply voltage	AC100-240V
power supply frequency	50-60Hz
auxiliary light voltage	12V

Weight and Dimensions

size	482mm × 445mm × 180mm
net weight	10Kg approx.
