MINI_1000_en.pdf http://www.codelight.com
20

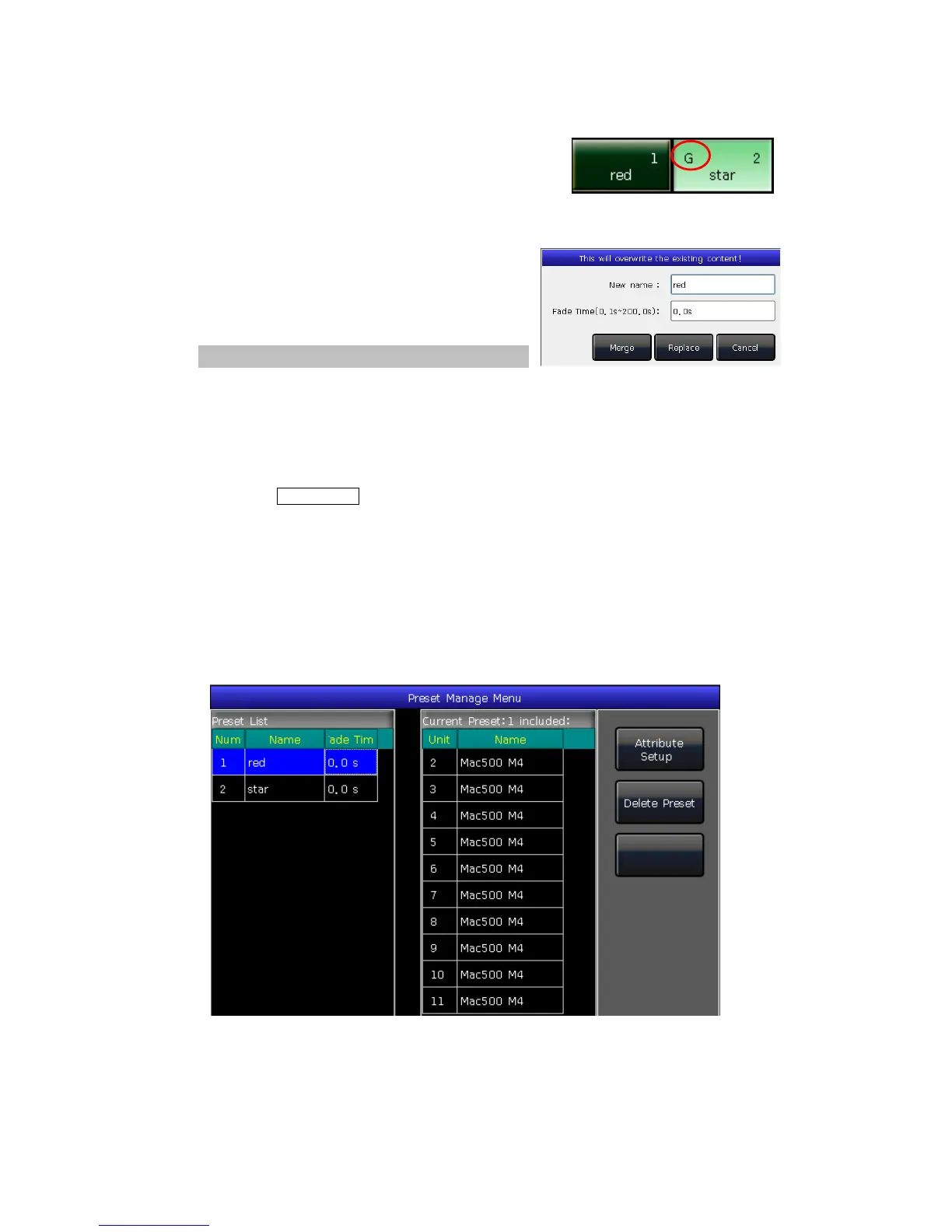

If there is nothing on the soft-key, users can name
the preset and set the fade in time. Press [Confirm] to
save, the soft-key will turn to dark green.
There will be a ‘G’ marks on the left top corner if the
preset is saved by Global mode.
If there is something in the soft-key, users can
also rename the preset and set the fade in time.
Then select [Merge]、[Replace] or [Cancel] to
finish operation.
Note: Fade in time only for LTP channels.
5> Press [Return] to quit.
4.2. Preset manage
Users can rename and set fade in time of preset in the “Preset Manage Menu”.
1> Press Edit Preset;
2> Press [Preset Manage];
3> Select the preset want to edit. It will list all fixtures which can use the preset;
4> Preset [Attribute Setup]. You can legend and set fade in time of the preset;
5> Press [Delete Preset] can delete the selected preset;
6> Press [Return] to quit.
