5. Shape Effects
MINI 1000 offers an effect generator for users to quickly create exciting light shows with
the minimum of programming.
5.1. How Effect Generator Works
Effect is a series of sequenced repeated movement preprogram. The representative
effects are circle, square, spiral and etc. They are the non repeat random effects. For example,
lighting beams move in a round route on the stage. When you run an effect, the fixtures will
work according to present setup. If the effect is applied to pan and tilt attribute of the fixtures,
the center of effect will depend on the present location of pan and tilt. By changing pan and
tilt position, the whole effect will show on the stage.
Effect generator can also be applied to other attributes of fixtures. You can use the effect
generator to create various colours, gobos, irises, and many other changes. Each effect can
be used to produce a regular change for one attribute.
5.2. Using Effect
1. Select the fixtures and light up;
2. Press [Effect];

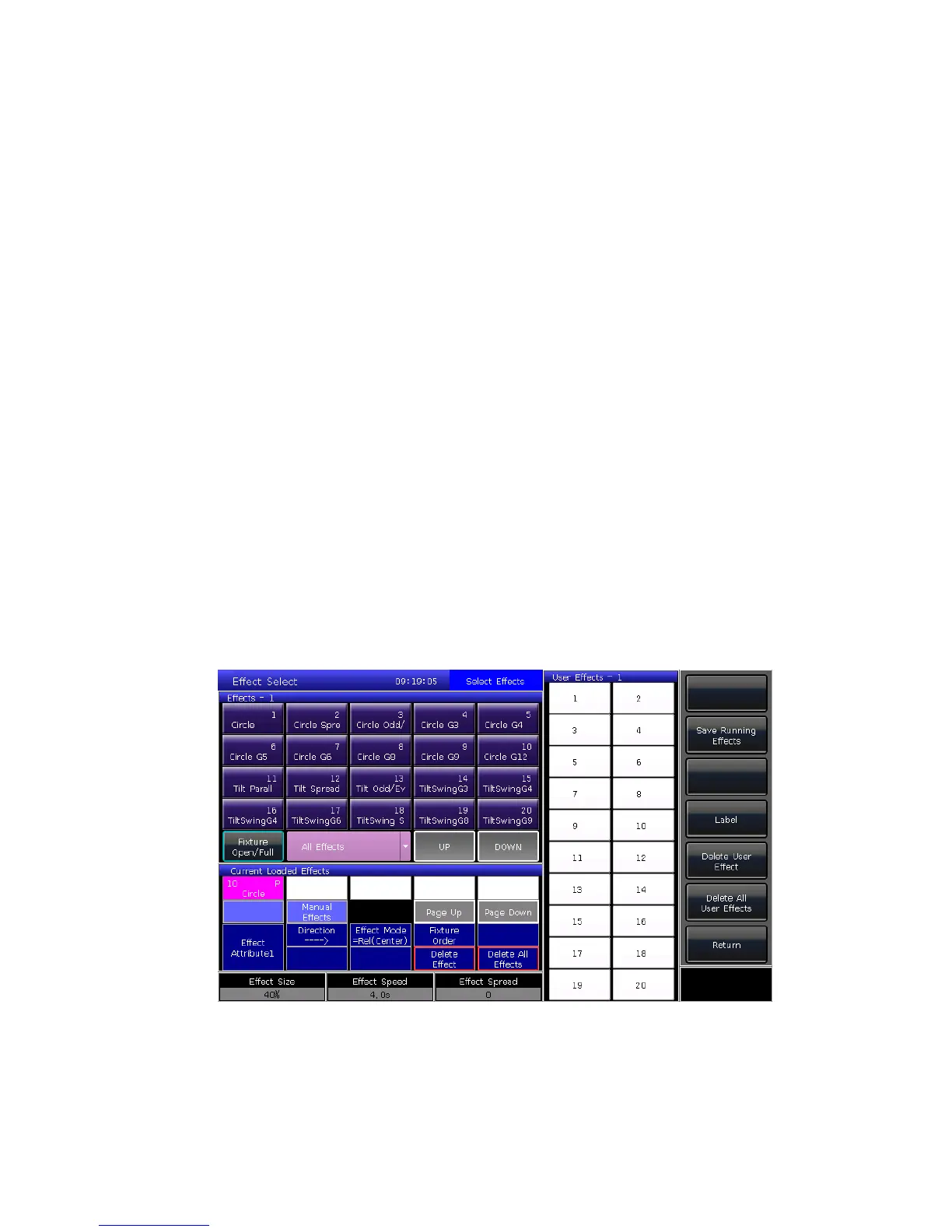

3. Select effects on soft-keys. When you want to select effect, you can search by their
types. Default option is [All Effects]. You can get other options by press the soft-key. Those
effects in selecting will display in “Current Load Effects”, for your convenient editing later;
The selecting effects will be listed on “Current Loaded Effects” window, which the
quantity of selecting fixtures shows on left top and the attribute type of effect shows
on right top.
Those different attribute types of effects include Intensity (I), Position (P), Colour (C)
and Beam (B) Effects.
