MINI_1000_en.pdf http://www.codelight.com
44

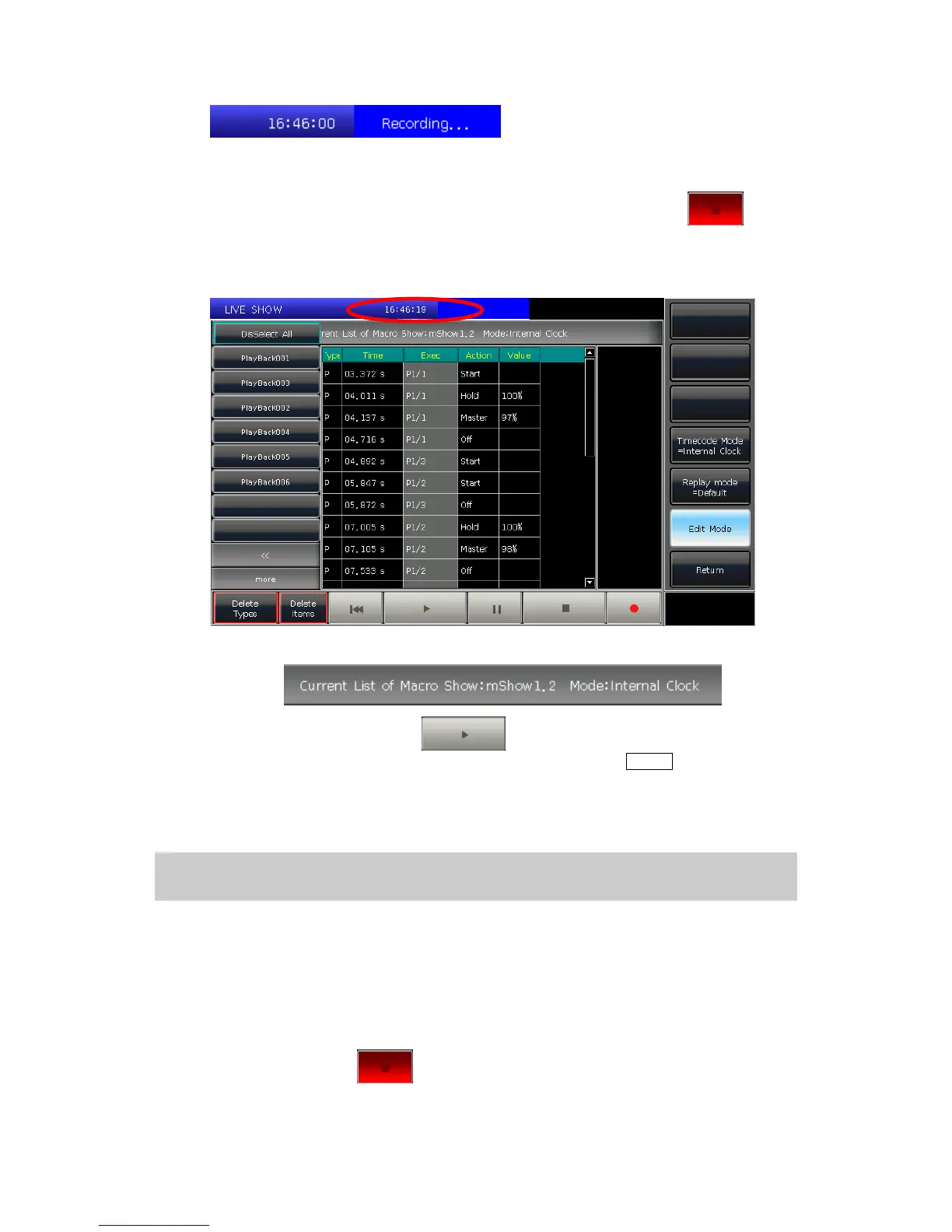

3. Put out the playbacks or presets follow the music as you need. If there is a Cue-lists
playback, you may use the GOTO function to record.
4. Fade out all playbacks when the music finished. And press the soft-key to stop
and save show record. Press [confirm] to save.
5. After saved, the window will list all the used playbacks and presets as well as the
operations.
6. The location of macro show and its record mode will be shown on top of the window.
7. Users may press the soft-key on record window when need to run the
macro show. But users can also press the corresponding key on Macro section to play the
macro if had exited the record window.
8. The macro show begins to run immediately once select the play soft-key.
9. The macro show will stop automatic when finished playing.
Note: The macro show begins to record once press the record key. If there is a time slot
without any operation at the beginning, it will run out as the fact when you begin to run
the macro show. You may skip it on console setting if you do not need the time slot.
7.6.3. Edit Macro show
Users are allowed to revise the macro show after created.
1. For example, you may add in some needed playback to the saved macro show record.
① Entry the show record needs to be edited;
② Press the record key
and play the music again;
③ Put out the playback or preset at the right time;
To Next Page
