Code MINI 1000 User Manual

MINI_1000_en.pdf http://www.codelight.com
50

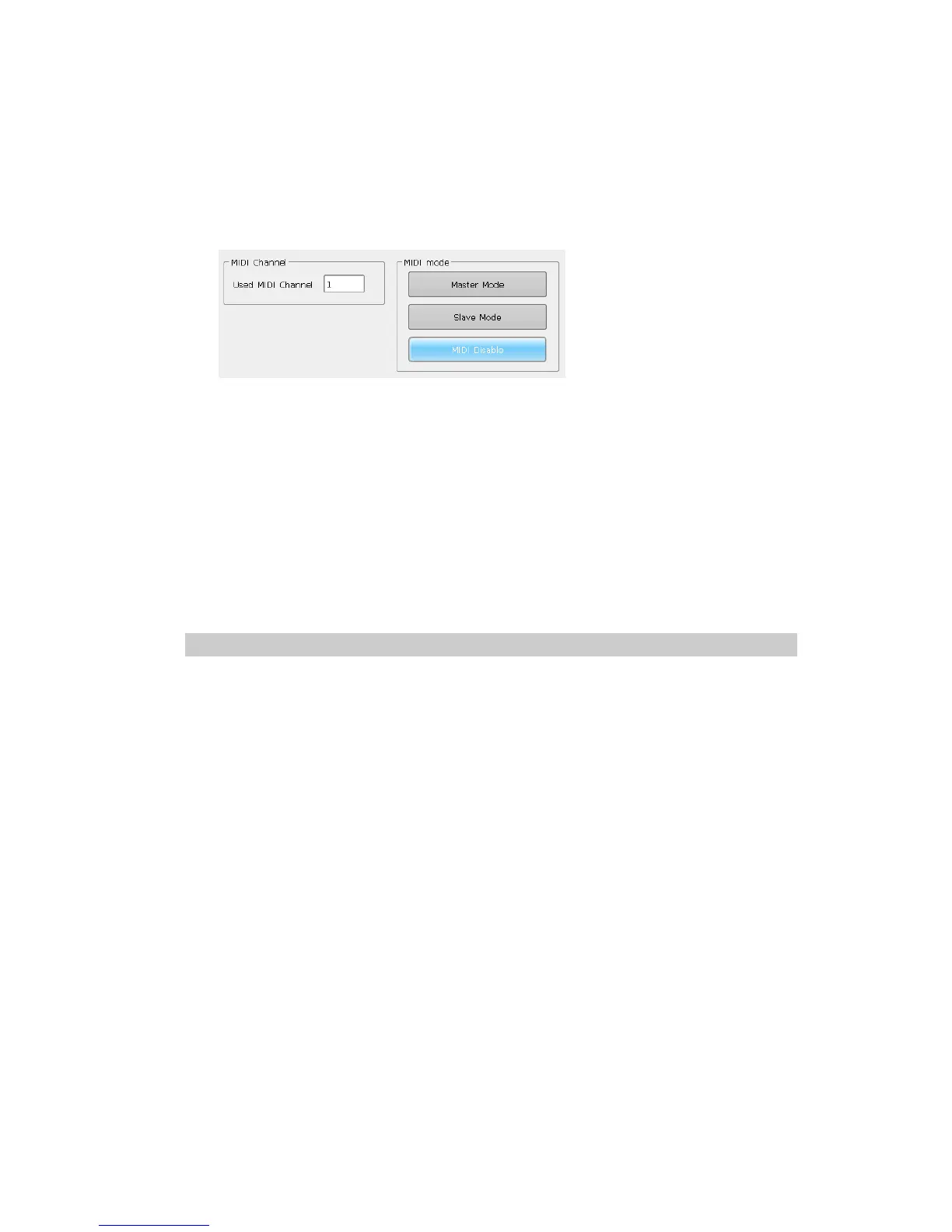

8.2.2. MIDI Setting
① MIDI Channel: setting range from 0-15.
② MIDI mode: You can set the console in [Master Mode], [Slave Mode] or [MIDI
Disable]. Default setting is in disable.
When in [Master Mode], the console is the master device which can control the slave
one; and while in [Slave Mode], console as the slave device which can be controlled by the
master device.
MIDI COMMAND:
Users may input the midi command on other midi device to trigger the playbacks of the
console.
The character ‘n’ (o to 15) below means the midi channel number (n=0 means
channel=1). The midi channel number should be the same as the setting on the console.
All numbers for the commands should be in hexadecimal notation.
 The midi Command for switching playback (PB) pages. (0 to 39)
Playback A pages: $Bn + PB page + 0
 The midi Command for running a playback (PB). (0 to 14)
Command: $9n + pp + ll
pp = playback number (decimal: 0 – 14)
ll = playback levels (decimal: 0-127)
Example: the midi channel on the console is 1.
a) If you want to switch playback page to page 3. Command: B0 02 00
b) If you want to run the playback 1 fully. Command: 90 00 7F
c) If you want to run the playback 15 with level 50%. Command: 90 0E 3F

Code MINI 1000 Specifications

Power

power supply voltage	AC100-240V
power supply frequency	50-60Hz
auxiliary light voltage	12V

Weight and Dimensions

size	482mm × 445mm × 180mm
net weight	10Kg approx.
