Code MINI 1000 User Manual

MINI_1000_en.pdf http://www.codelight.com
11

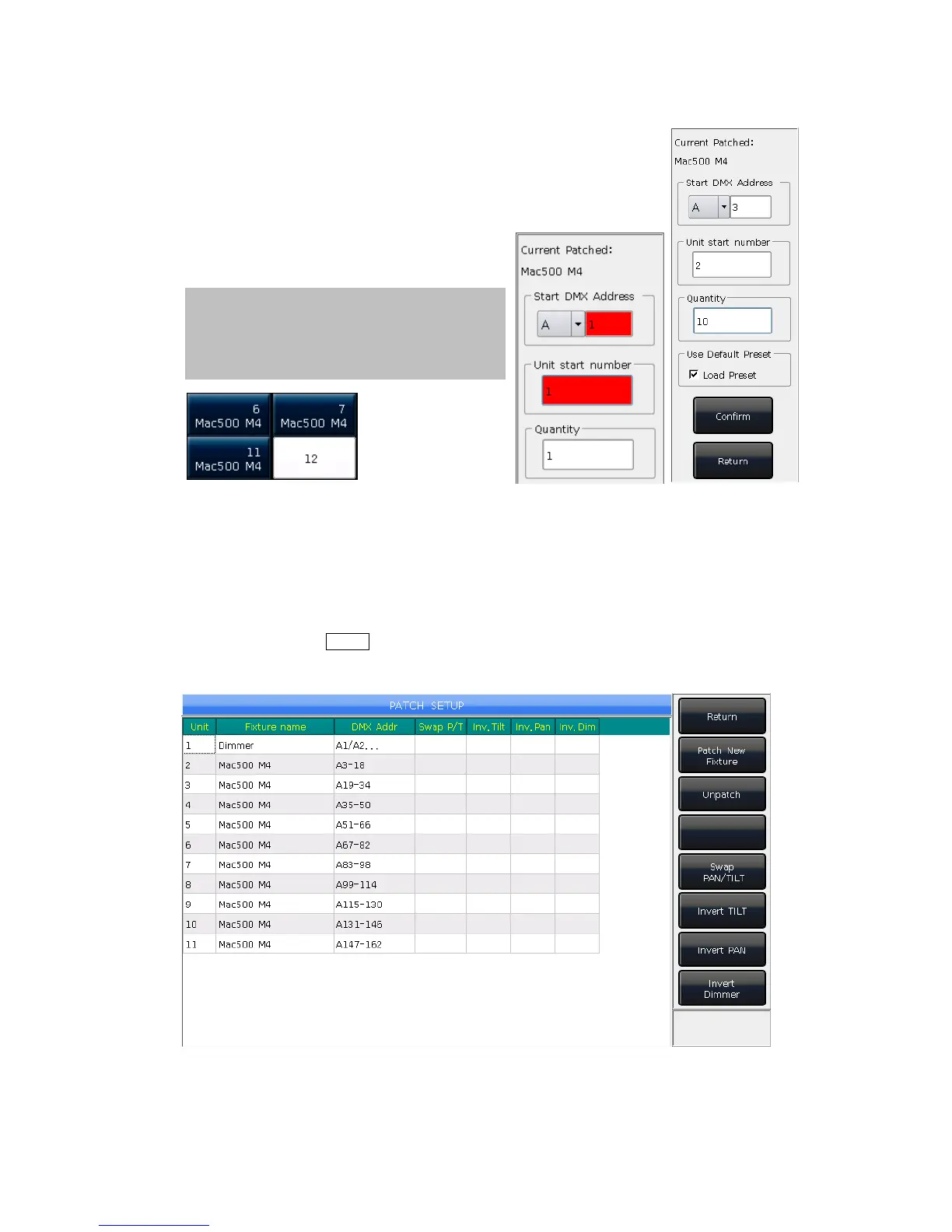

 Press Wheel D can switch the cursor to option “Unit start
number”. Input value “yyy” on the blank;
 Press Wheel D can switch the cursor to option “Quantity”. Input
value “zzz” on the blank.
 Press [Confirm] to finish patching, the “PATCH SETUP” will be
renewed automatically;
 Press [Return] and quit to “LIVE SHOW”.
Note: The blank will turn RED if the
DMX address or unit number was used
when setting the “initial DMX address” or
“Unit start number”.
After patched, the soft-key on touch screen will turn to dark blue, and the model name
will be shown on the soft-key.
2.3. Check and Setup the Patch
Users can press Patch to entry “PATCH SETUP” to check the DMX address or other
information of the patched fixtures.

Code MINI 1000 Specifications

Power

power supply voltage	AC100-240V
power supply frequency	50-60Hz
auxiliary light voltage	12V

Weight and Dimensions

size	482mm × 445mm × 180mm
net weight	10Kg approx.
