Code MINI 1000 User Manual

MINI_1000_en.pdf http://www.codelight.com
53

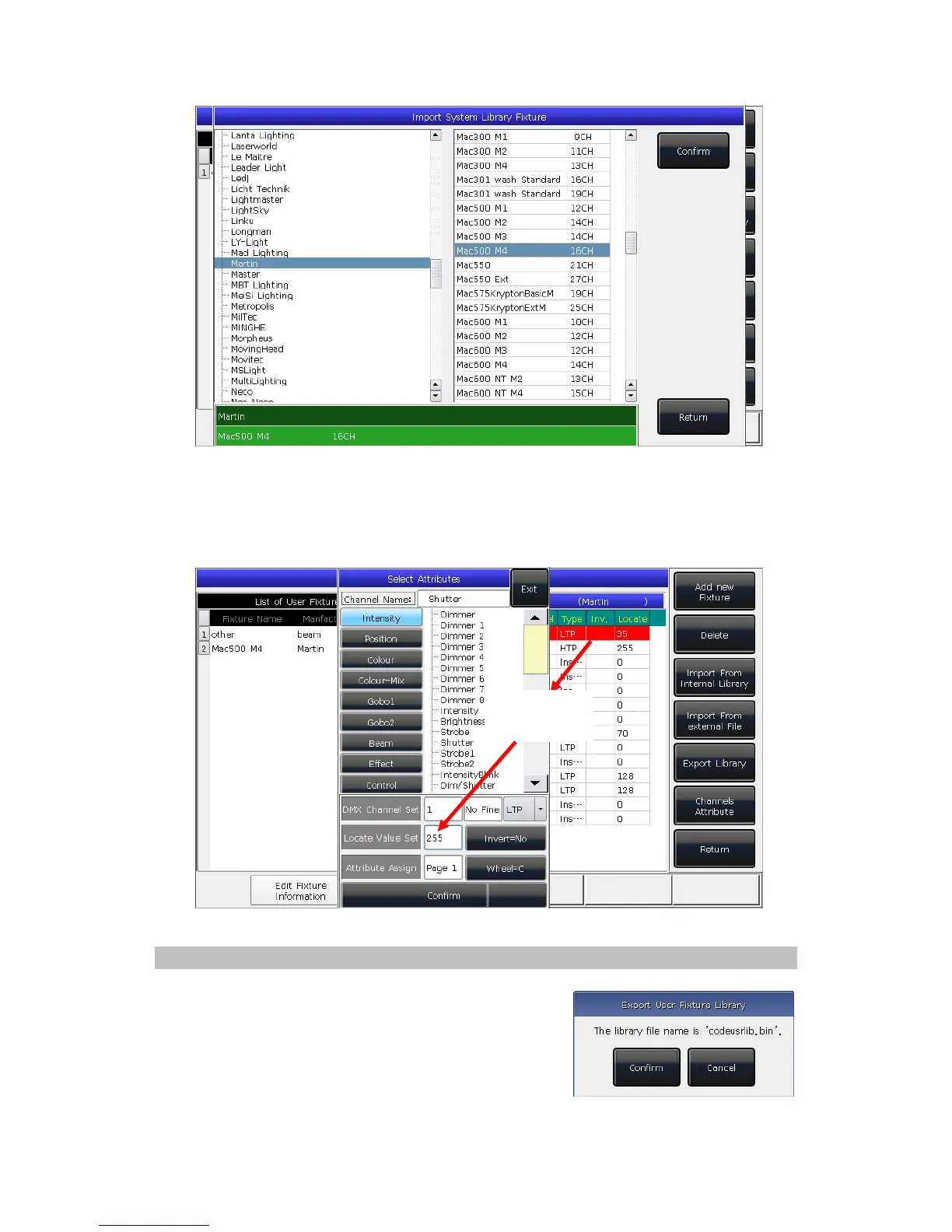

④ Select the library then press [Confirm];
⑤ The import library will be listed on “List of User Fixtures”;
⑥ Select the import library and select the needed channel;
⑦ Press [Channels Attribute] and amend the information of the channel;
⑧ Press [Return] and [Confirm] to save.
Note: All preset, range table and macro details will be delete after edited the library.
8.3.2.4. Export Library
Users can export all the user libraries to USB driver.
You can backup the user libraries which may use in
another MINI 1000. Default name of backup file is
‘codeusrlib.bin’.
Adjust locate
value

Code MINI 1000 Specifications

Power

power supply voltage	AC100-240V
power supply frequency	50-60Hz
auxiliary light voltage	12V

Weight and Dimensions

size	482mm × 445mm × 180mm
net weight	10Kg approx.
