2.3.1 Supported configuration and monitoring tools
InteliConfig - complete configuration and single gen-set monitoring
WebSupervisor - web-based system for monitoring and controlling
WebSupervisor mobile - supporting application for smart-phones
WinScope - special graphical monitoring software
Note: Use the InteliConfig PC software to read, view and modify configuration from the controller or disk and
write the new configuration to the controller or disk.
The firmware of controller contains a large number of binary inputs and outputs needed for all necessary
functions available. However, not all functions are required at the same time on the same gen-set and also the
controller hardware does not have so many input and output terminals. One of the main tasks of the
configuration is mapping of “logical” firmware inputs and outputs to the “physical” hardware inputs and outputs.
2.3.2 Configuration parts
Mapping of logical binary inputs (functions) or assigning alarms to physical binary input terminals
Mapping of logical binary outputs (functions) to physical binary output terminals
Assigning sensor characteristics (curves) and alarms to analog inputs
Selection of peripheral modules, which are connected to the controller, and doing the same (as mentioned
above) for them
Selection of ECU type, if an ECU is connected
Changing the language of the controller interface

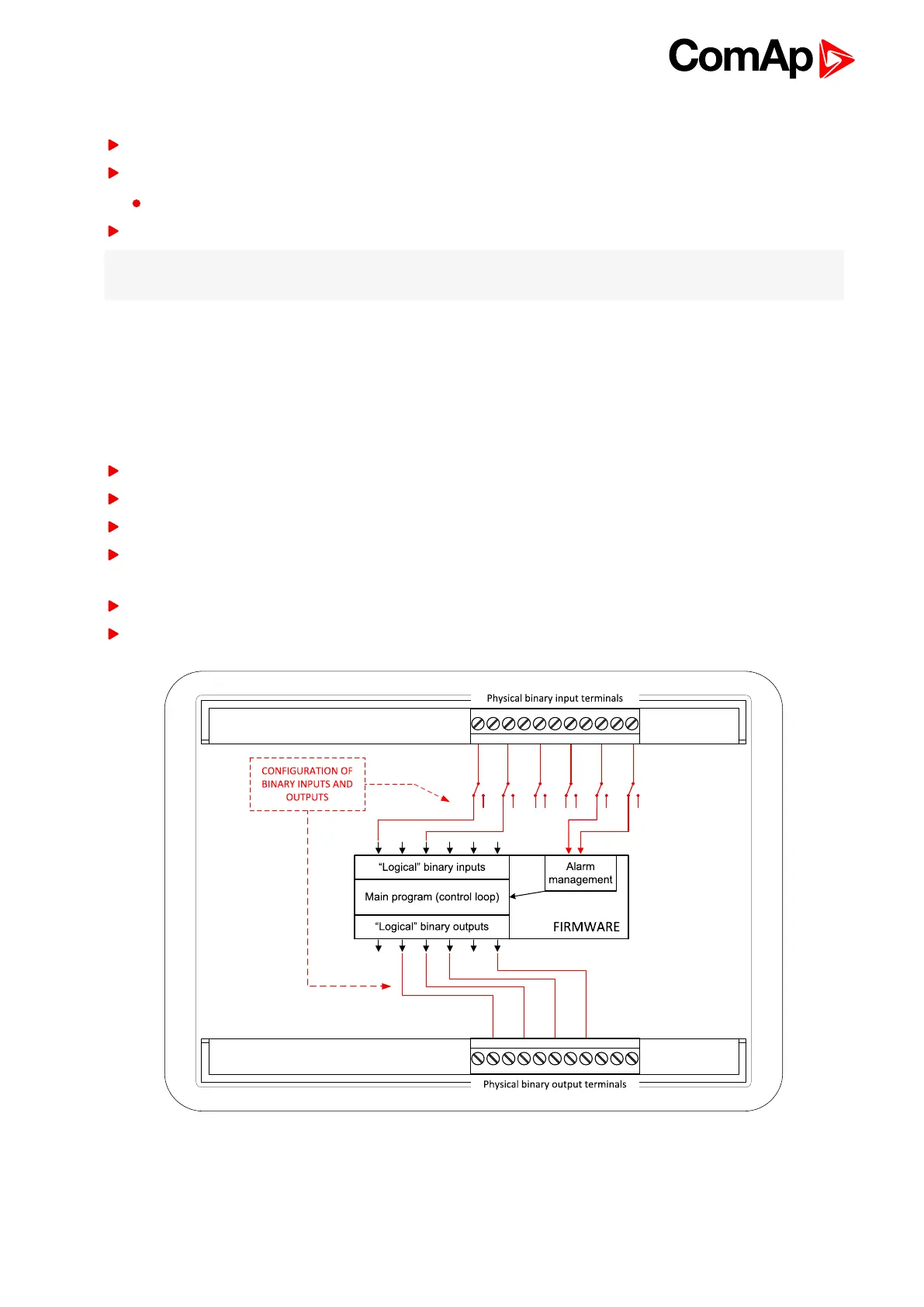

Image 2.1 Principle of binary inputs and outputs configuration
