If engine will not start:
Check ground connection from pick-up to controllers, eventually disconnect ground connection to one of
them.
Note: In some cases the controller will measure a RPM value even though the gen-set is not running: RPM is
measured from the generator voltage (Gear Teeth = 0). Controller is measuring some voltage value on input
terminals due to open fusing. If RPM > 0 the controller will be put into a Not ready state and the engine will not
be allowed to start.
4.4.6 Binary inputs
Use minimally 1 mm
2
cables for wiring of Binary inputs.

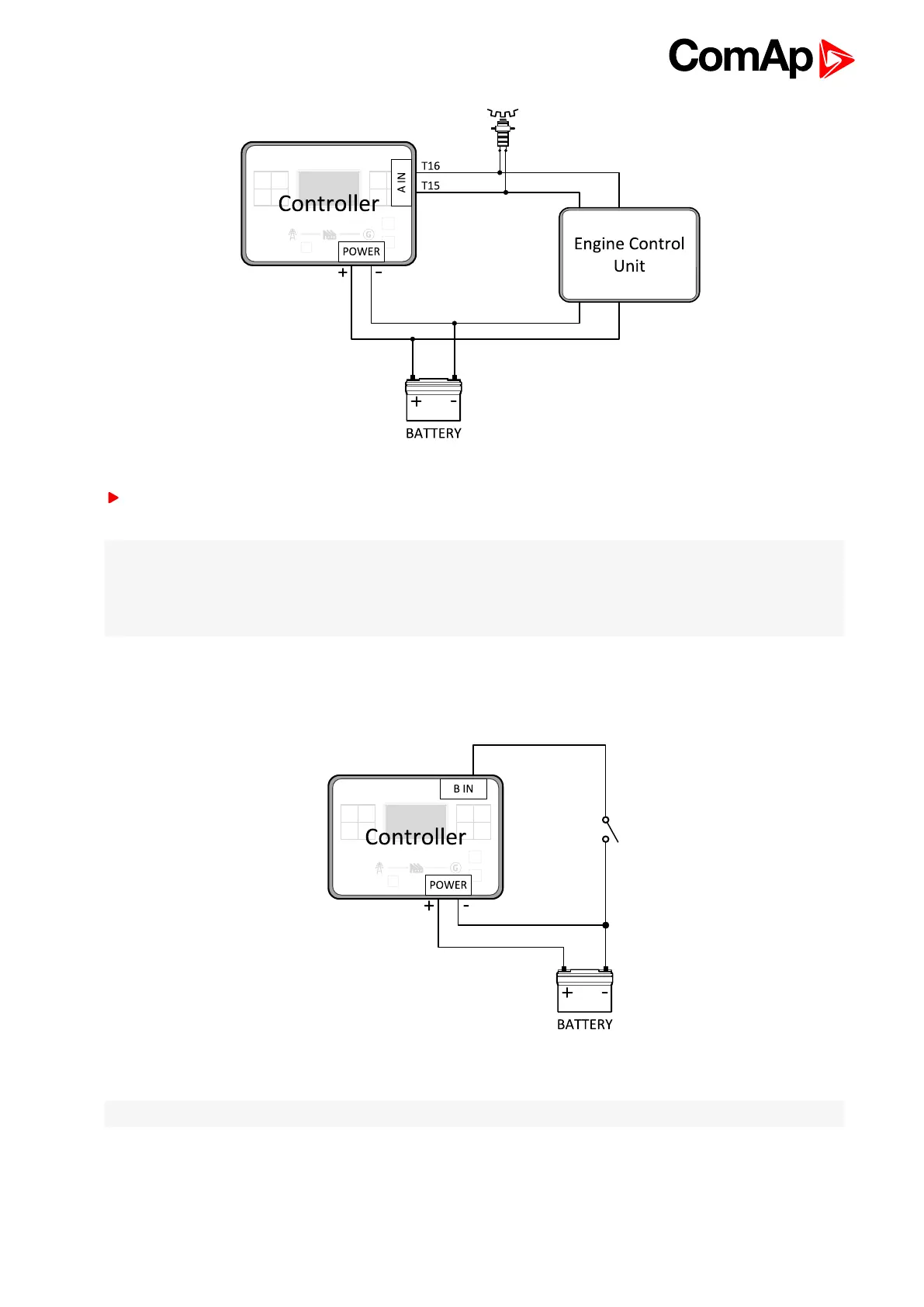

Image 4.17 Wiring binary inputs
Note: The name and function or alarm type for each binary input have to be assigned during the configuration.

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
