ComAp InteliLite AMF25 User Manual

InteliLite Global Guide
22
Note: Dimension x depends on plug-in module
Note: Dimensions are in millimeters and are the same for all versions of InteliLite.
Note: Cutout is in millimeters and is the same for all versions of InteliLite.
4.2.2 Mounting

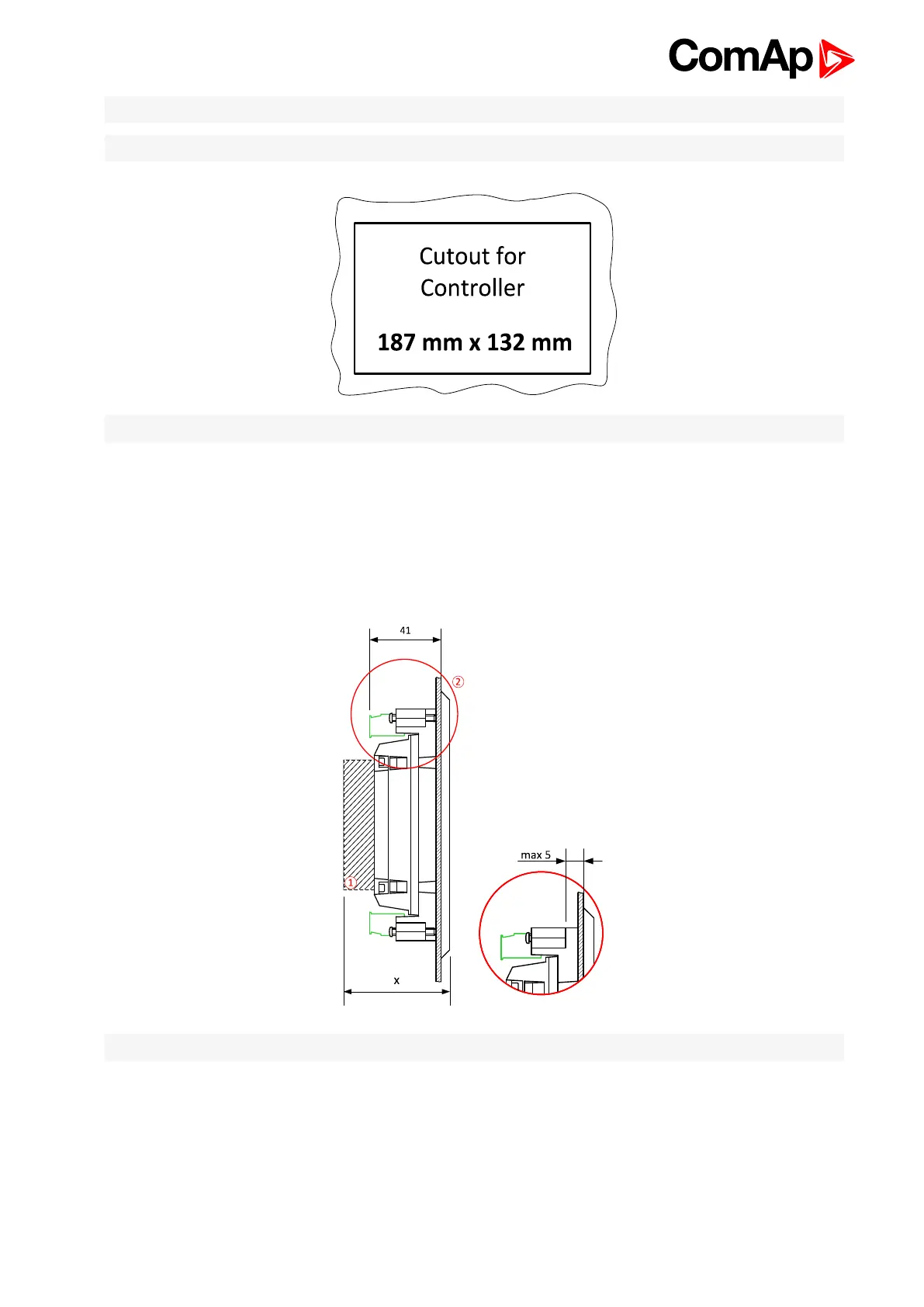

The controller is to be mounted onto the switchboard door. Requested cutout size is 187 x 132 mm. Use the
screw holders delivered with the controller to fix the controller into the door as described on pictures
below.Recommended torque for holders is 0.15N·m.
Panel door mounting
Note: Enclosure Type rating with mounting instruction - For use on a Flat surface of a type 1 enclosure.

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
