InteliLite Global Guide
26
4.4 Recommended wiring
Current inputs 28 - 31 Current measurement wiring (page 30)
Generator voltage inputs 35 - 38
Voltage measurement AMF wiring (page 32)
Voltage measurement MRS wiring (page 39)
Mains voltage inputs 39 - 42 Voltage measurement AMF wiring (page 32)
Binary inputs 43 - 50 Binary inputs (page 47)
CANbus and RS485 H, COM, L CAN bus and RS485 wiring (page 54)
Analog inputs 15 - 21 Analog inputs (page 49)
Binary outputs 04 - 11 Binary Outputs (page 48)

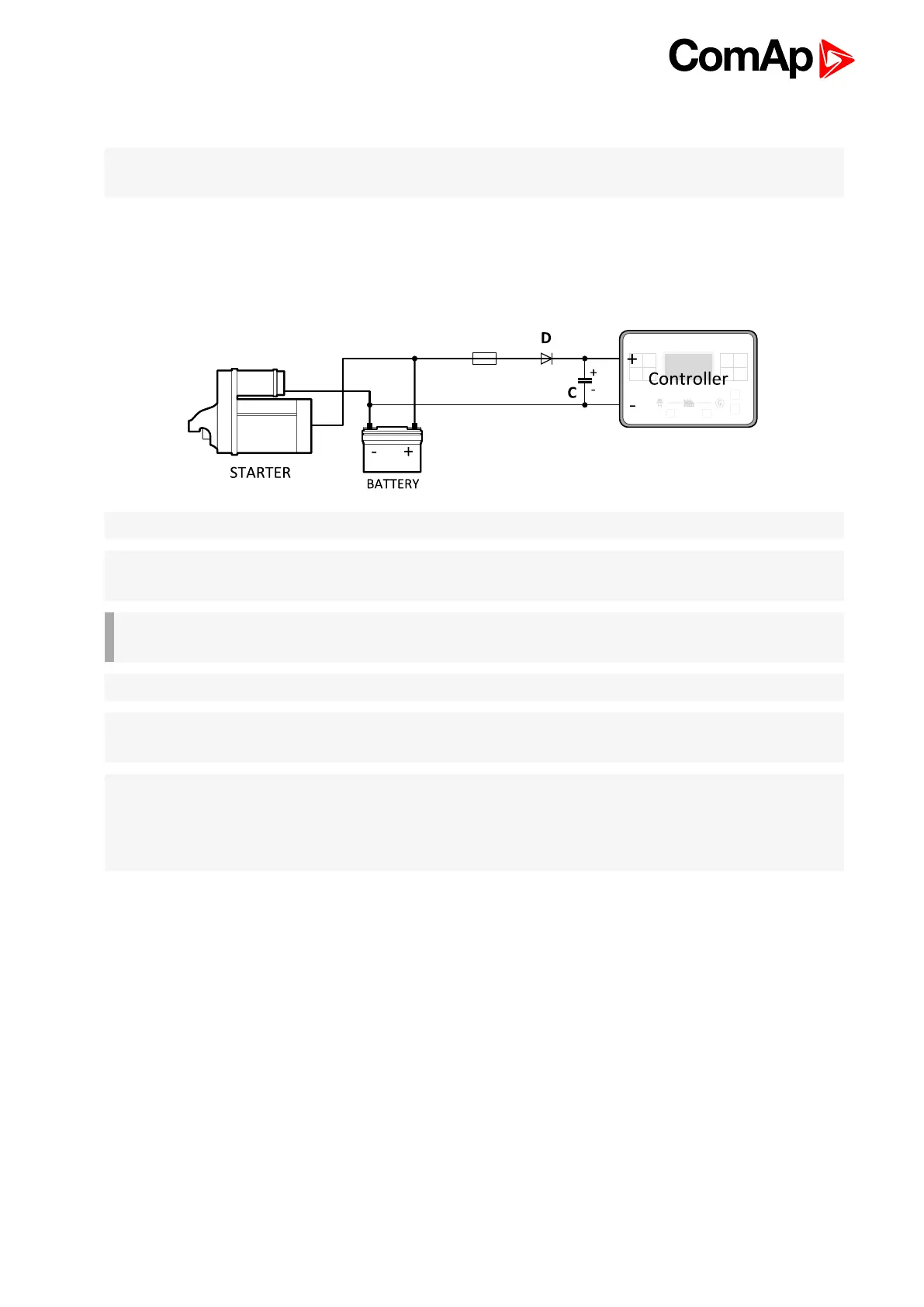

Power supply "+", D, "-" Power supply (page 27)
USB USB (page 57)
Note: Wiring terminal markings to included tightening torque: 0,5 N-m (4,5 lb-in)., and wire size: 2 mm
2
(12-
26AWG).
