InteliLite Global Guide
83
5.4.1 General description
Remote display software works as “remote display and control” for the Master InteliLite family controller. Gen-
set can be controlled using Remote display and Master controller simultaneously and independently. All
Remote display screens (Measurement screens, Setpoint screens and History Log) displays the same data as
Master controller. Front panel buttons on both controllers work the same way. All remote display LEDs shows
the same state as corresponding LEDs on Master controller.
5.4.2 IL3-RD Firmware installation
The IL3-RD Remote display firmware is installed in the same way as any other InteliLite firmware using
InteliConfig PC tool. Reverting Remote display controller back to regular gen-set controller is carried out the
same way.

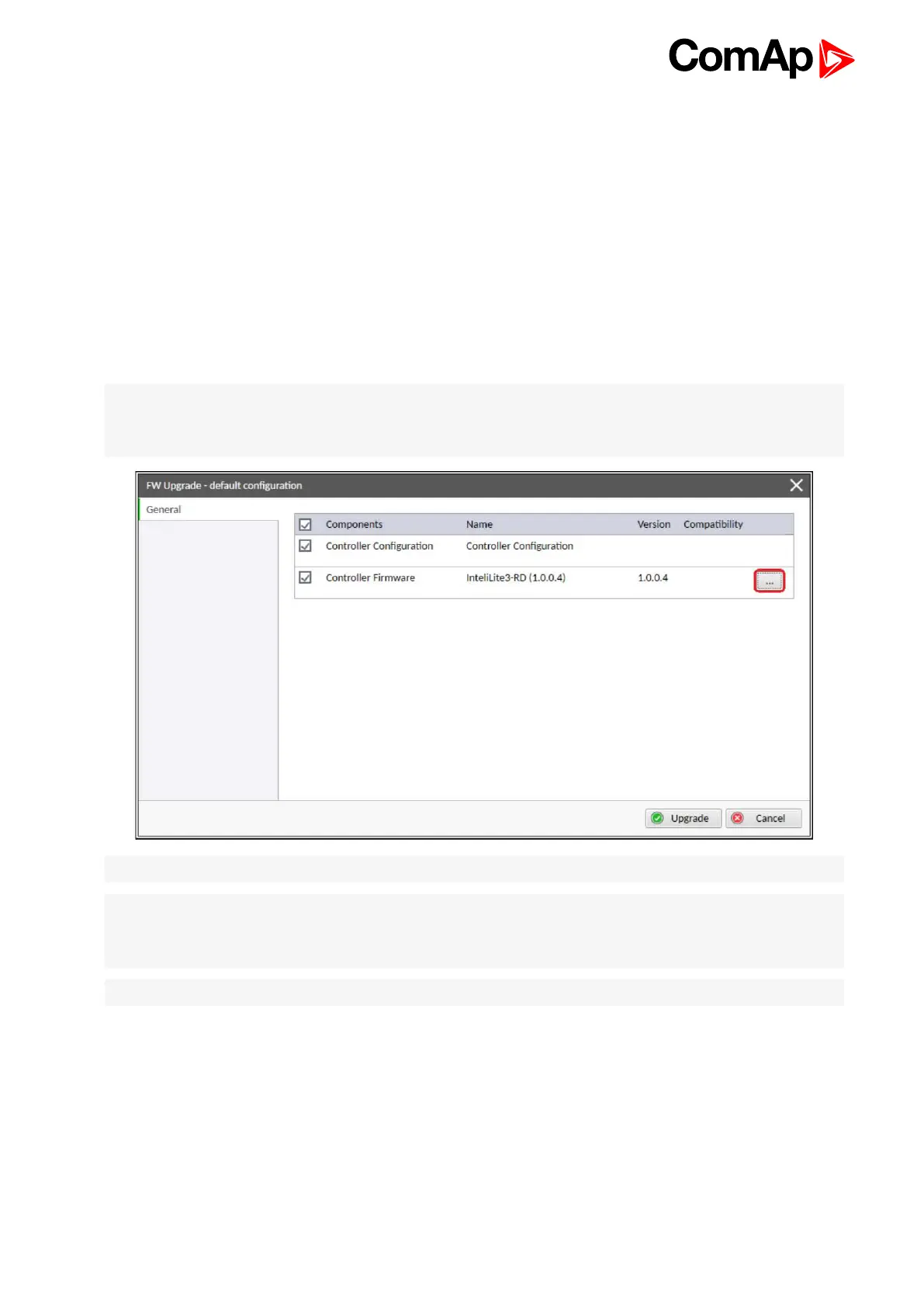

Note: InteliConfig shows the most compatible and the most recent firmware as default option. Thus, it is
necessary use “More options” (…) button to pick IL3-RD firmware for uploading to controller. (See details on
picture below.)
Note: IL3-RD consists firmware only, there is no archive included.
Note: When IL3-RD firmware is uploaded to controller there is only possible connect InteliConfig using USB
connection. InteliConfig serves only for firmware update when connected to Remote display. There is no
Master controller SCADA displayed, no possibility to adjust Setpoints, display Values etc.
Note: Please refer to InteliConfig Global Guide for details about firmware uploading to controller.
5.4.3 Wiring
IL3-RD can be connected to InteliLite family controller via external RS232 or RS485 communication line on CM-
232-485 communication module. It is possible to connect only up to two Remote displays to one Master
controller, if they are using different communication COMs. To connect two or more remote displays to one
communication line (e.g. RS485) is not possible. Using one Remote display it is possible to monitor only one
Master controller at the time.
