you want to program into the module (in InteliConfig).
Press the OK button to start upgrade of firmware.
The firmware update process may be performed via any kind of connection including connection via the same
module in which the firmware is to be updated. The connection is reestablished again automatically when the
update process is finished.
8.3.2 CAN modules
Extension modules 707
The available extension CAN modules are:
Inteli AIN8 - extension CAN module with 8 analog inputs
Inteli IO8/8 - extension CAN module with 8 binary inputs, 8 binary outputs and 2 analog outputs
this CAN module can be switched to Inteli IO 16/0 - extension CAN module with 16 binary inputs and 2
analog outputs
Slot Inteli AIN8 Inteli AIN8TC Inteli IO8/8 Inteli IO 16/0 IGL-RA15 IGS-PTM Inteli AIO9/1
1
2
3
4
5

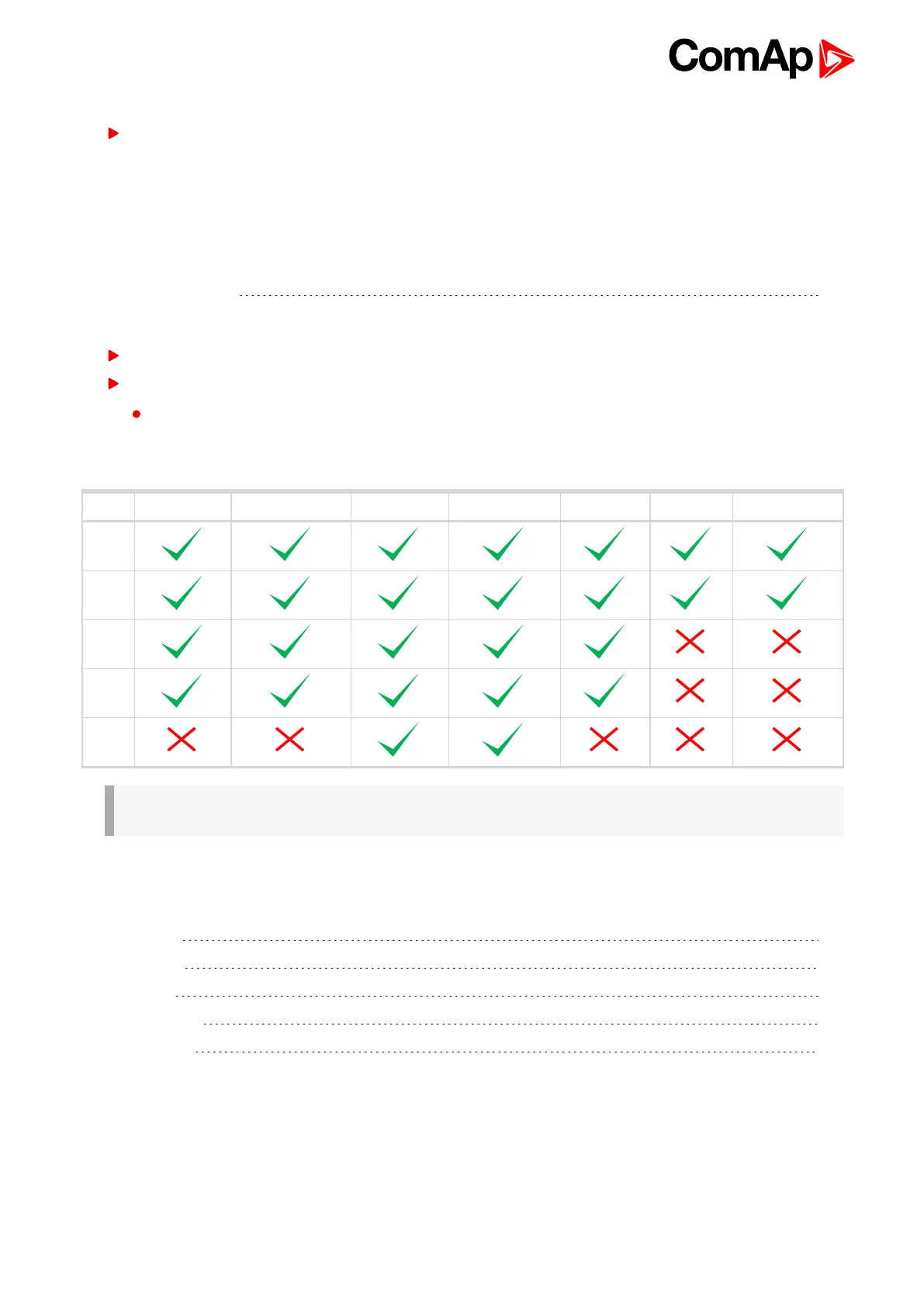

Supported combinations of modules
IMPORTANT: In slot 3, 4 and 5 CAN modules Inteli IO8/8 and Inteli IO 16/0 are supported without
analog outputs. Analog outputs of these CAN modules are supported only in slot 1 and 2.
It is possible to add up to 80 binary inputs or up to 68 binary outputs or up to 32 analog inputs on CAN modules.
Extension modules
Inteli AIN8 707
Inteli IO8/8 713
IGS-PTM 720
Inteli AIN8TC 726
Inteli AIO9/1 730
Inteli AIN8
Inteli AIN8 module is extension module equipped with analog inputs. Inteli AIN8 module is connected to
controller by CAN1 bus.

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
