ComAp InteliLite AMF25 User Manual

InteliLite Global Guide
120

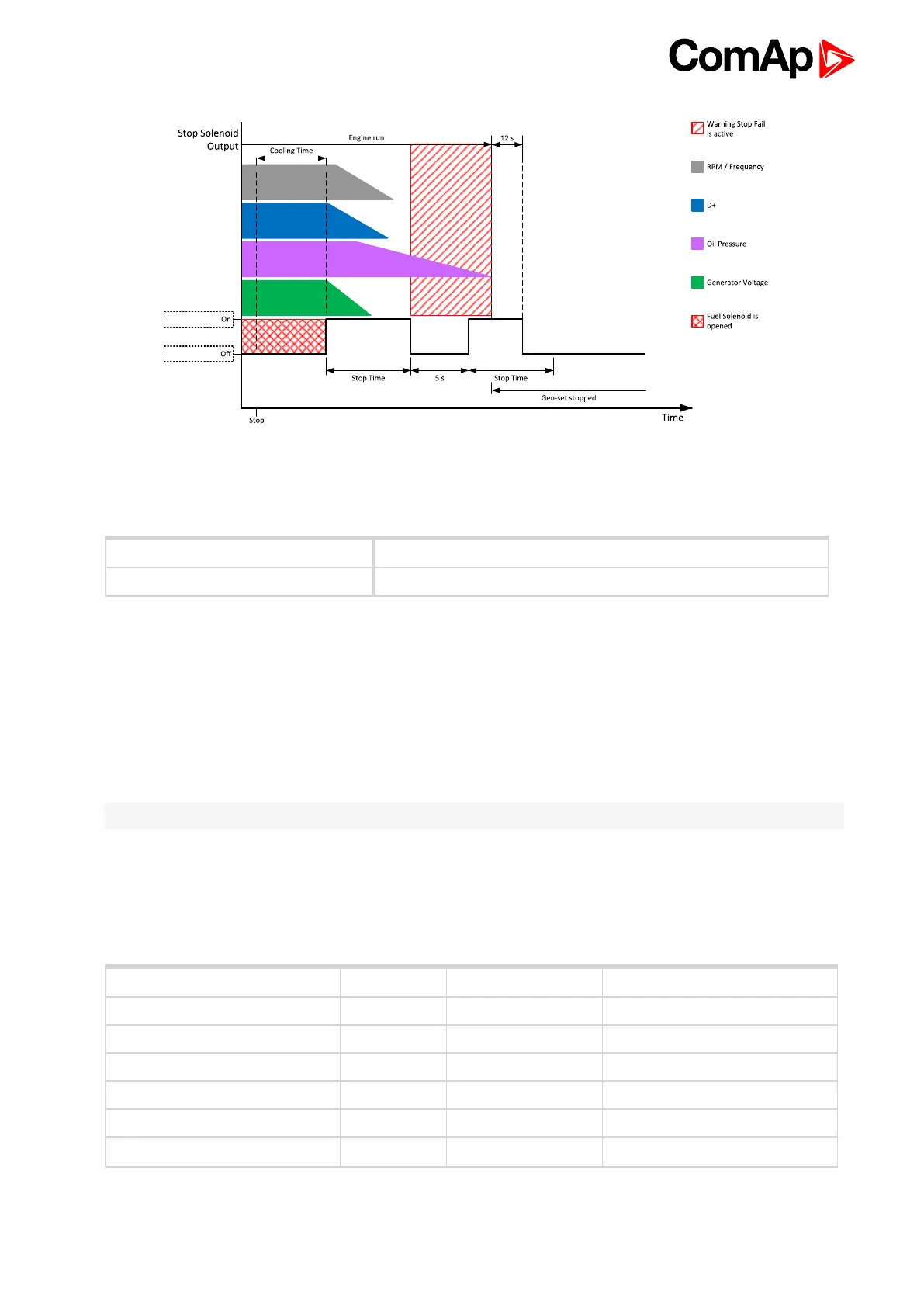

Image 5.31 Engine stops after first Stop Time (page 203)
Electric state machine
IslOper Island operation
BrksOff GCB opened
5.5.19 Sensor curves
Background of the sensor calibration
To correct measuring error of each analog input (pressure, temperature, level, etc.) calibrating constants should
be set. Calibration is made by adding the value of setpoint CU AIN1 Calibration (page 327), or CU AIN2
Calibration (page 328), or CU AIN3 Calibration (page 328), or CU AIN4 Calibration (page 329) directly to
the calculated value at analog input.
Note: The calibration must be done at the operational point of the analog input (e.g. 80°C, 4.0Bar etc..)
Default sensor curves
There are 16 default resistive curves available. The following table provides information on minimum/maximum
values of respective sensors. Actual values especially of temperature curves may differ. Meaning is to prolong
curve to the lower temperature values, so the cold engine will not raise alarm fail sensor.
Curve Min [Ohm] Max [Ohm] Units
VDO 10 Bar 0-2400ohm 0 2400 Bar
VDO40-120°C0-2400ohm 0 2400 °C
VDOLevel%0-2400ohm 0 2400 %
General line 1 0 1000 ohm
General line 2 0 1000 ohm
General line 3 0 1000 ohm

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
