ComAp InteliLite AMF25 User Manual

InteliLite Global Guide
24

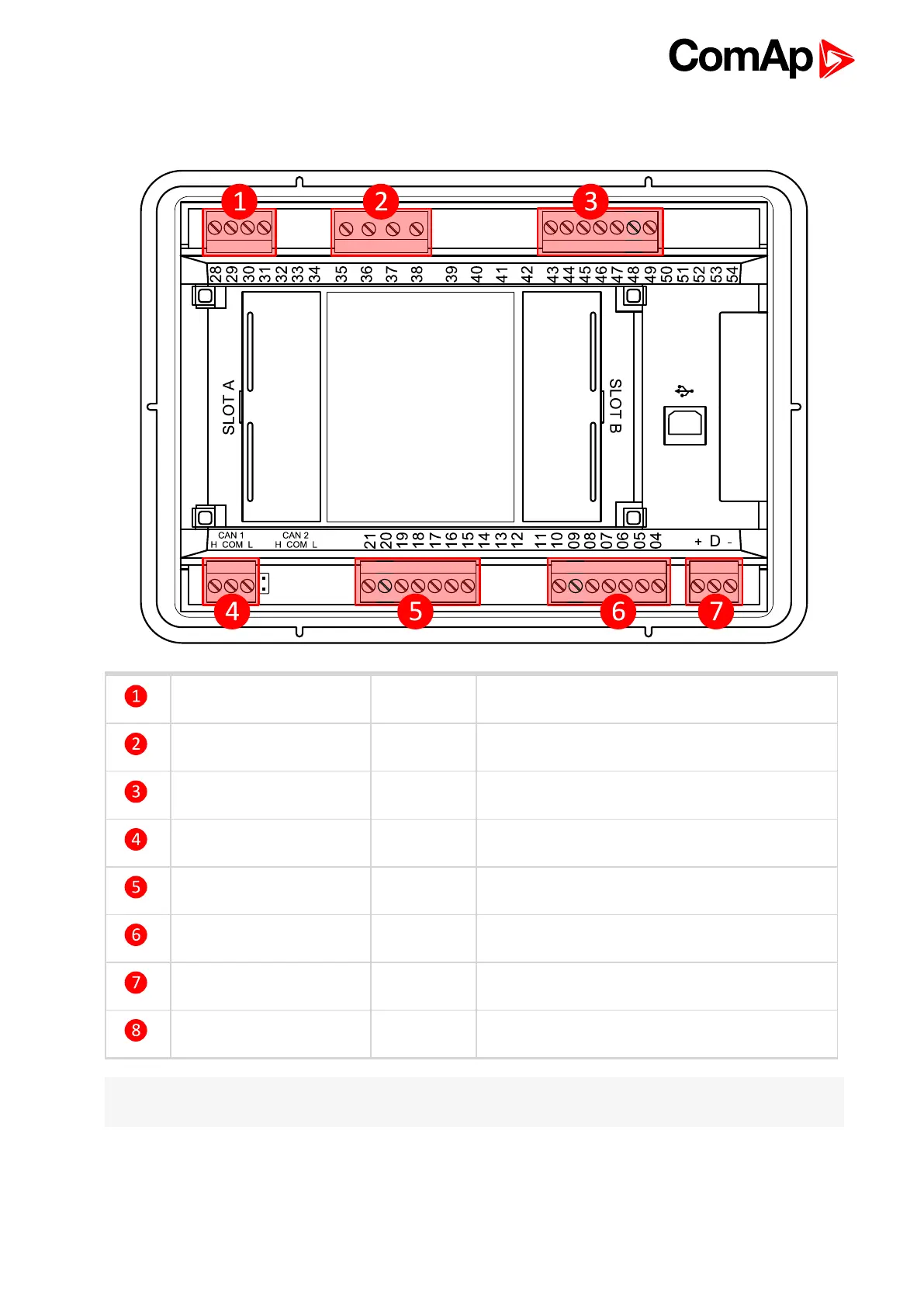

4.4 Recommended wiring
Current inputs 28 - 31 Current measurement wiring (page 27)
Voltage inputs 35 - 38 Voltage measurement MRS wiring (page 30)
Binary inputs 43 - 49 Binary inputs (page 38)
CANbus and RS485 H, COM, L CAN bus and RS485 wiring (page 44)
Analog inputs 15 - 21 Analog inputs (page 40)
Binary outputs 04 - 10 Binary Outputs (page 39)
Power supply "+", D, "-" Power supply (page 25)
USB USB (page 47)
Note: Wiring terminal markings to included tightening torque: 0,5 N-m (4,5 lb-in)., and wire size: 2 mm
2
(12-
26AWG).

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
