ComAp InteliLite AMF25 User Manual

InteliLite Global Guide
27

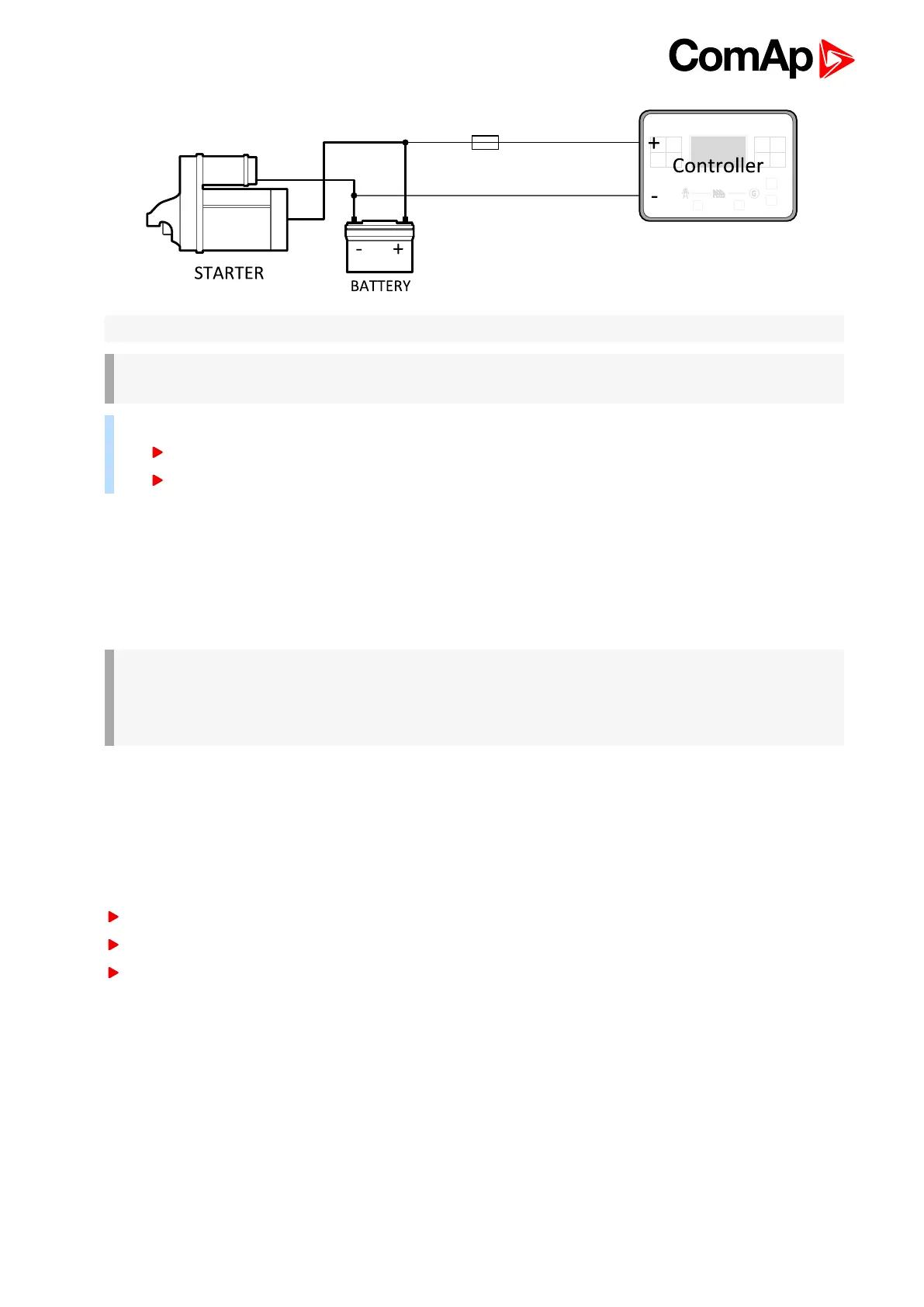

Note: Recommended fusing is 3 A fuse.
IMPORTANT: 3 A fuse is calculated without BOUT consumption nor extension modules. Real value
of fuse depends on consumption of binary outputs and modules.
Example: Maximal consumption of binary outputs can be 22 A
2 x 10 A on high current outputs (for 10 seconds)
2 A on all others binary outputs
4.4.4 Measurement wiring
Use 1.5 mm
2
cables for voltage connection and 2.5 mm
2
for current transformers connection. Adjust
Connection type (page 177), Nominal Voltage Ph-N (page 179), Nominal Voltage Ph-Ph (page 179),
Nominal Current (page 176), PT Ratio (page 180) and CT Ratio (page 177) by appropriate setpoints in the
Basic Settings group.
IMPORTANT: Risk of personal injury due to electric shock when manipulating voltage terminals
under voltage. Be sure the terminals are not under voltage before touching them.
Do not open the secondary circuit of current transformers when the primary circuit is closed. Open
the primary circuit first.
Current measurement wiring
The number of CT’s is automatically selected based on selected value of setpoint Connection type (page 177)
[3Ph4Wire / High Leg D / 3Ph3Wire / Split Ph / Mono Ph].
Generator currents and power measurement is suppressed if current level is bellow <1 % of CT range.
To ensure proper function:
Use cables of 2.5 mm
2
Use transformers to 5 A
Connect CT according to following drawings:

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
