ComAp InteliLite AMF25 User Manual

InteliLite Global Guide
28
3 phase application:
Image 4.2 3 phase application
IMPORTANT: It is necessary to ensure that potential difference between current COM terminal and
power supply “-” terminal is maximally ± 2 V. There are 2 options how to ensure this:
"Red" option - properly ground both terminals
"Blue" option - interconnect these two terminals
Always apply only one option. Never realize both options on one installation.

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs

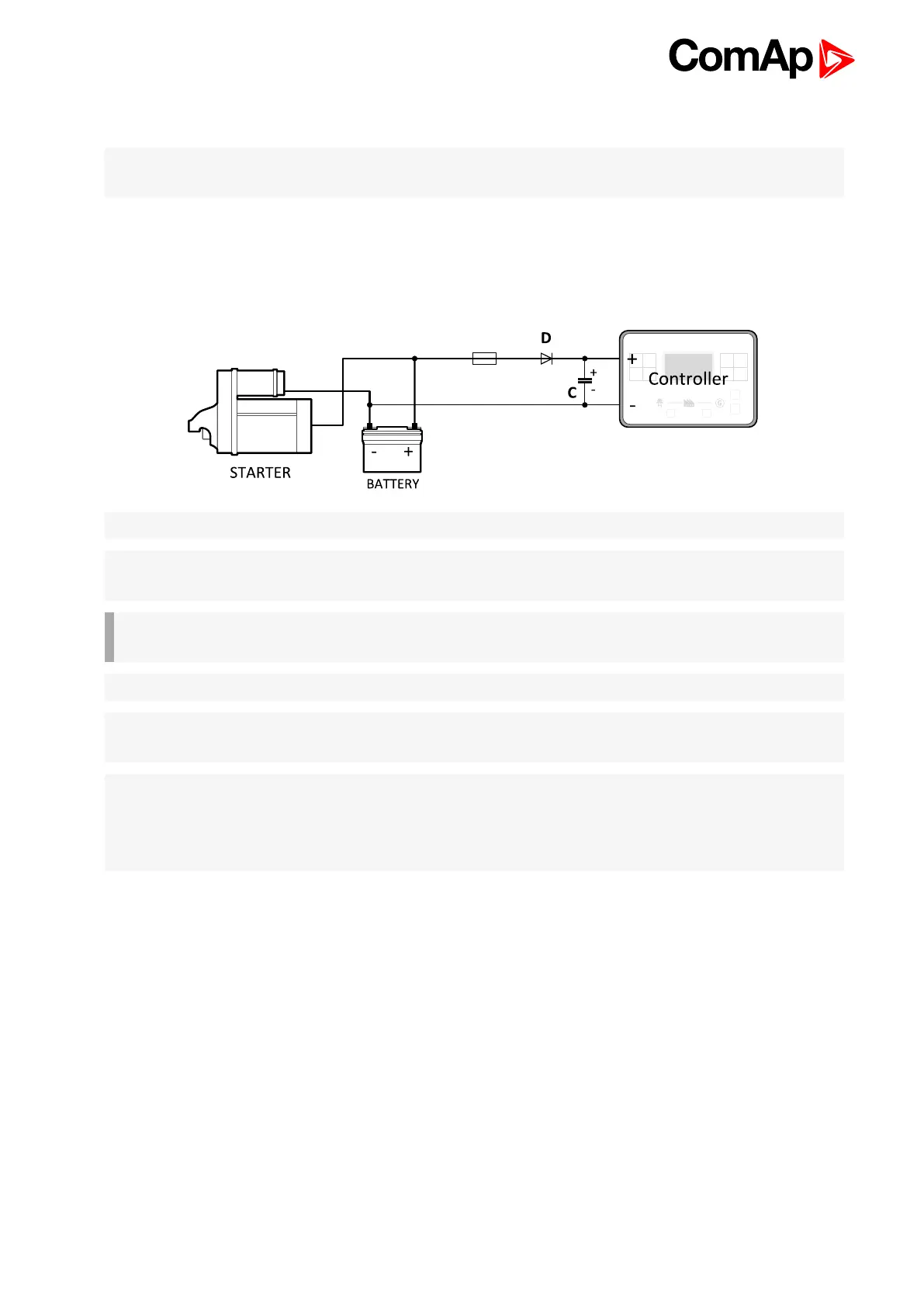

Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
