Short period mode
Set-up via InteliConfig
To set-up timer via InteliConfig go to the setpoint ribbon, setpoint group scheduler and setpoint Timer 1 Setup.
Note: First of all function of timer has to be adjusted via setpoint Timer 1 Function (page 303).

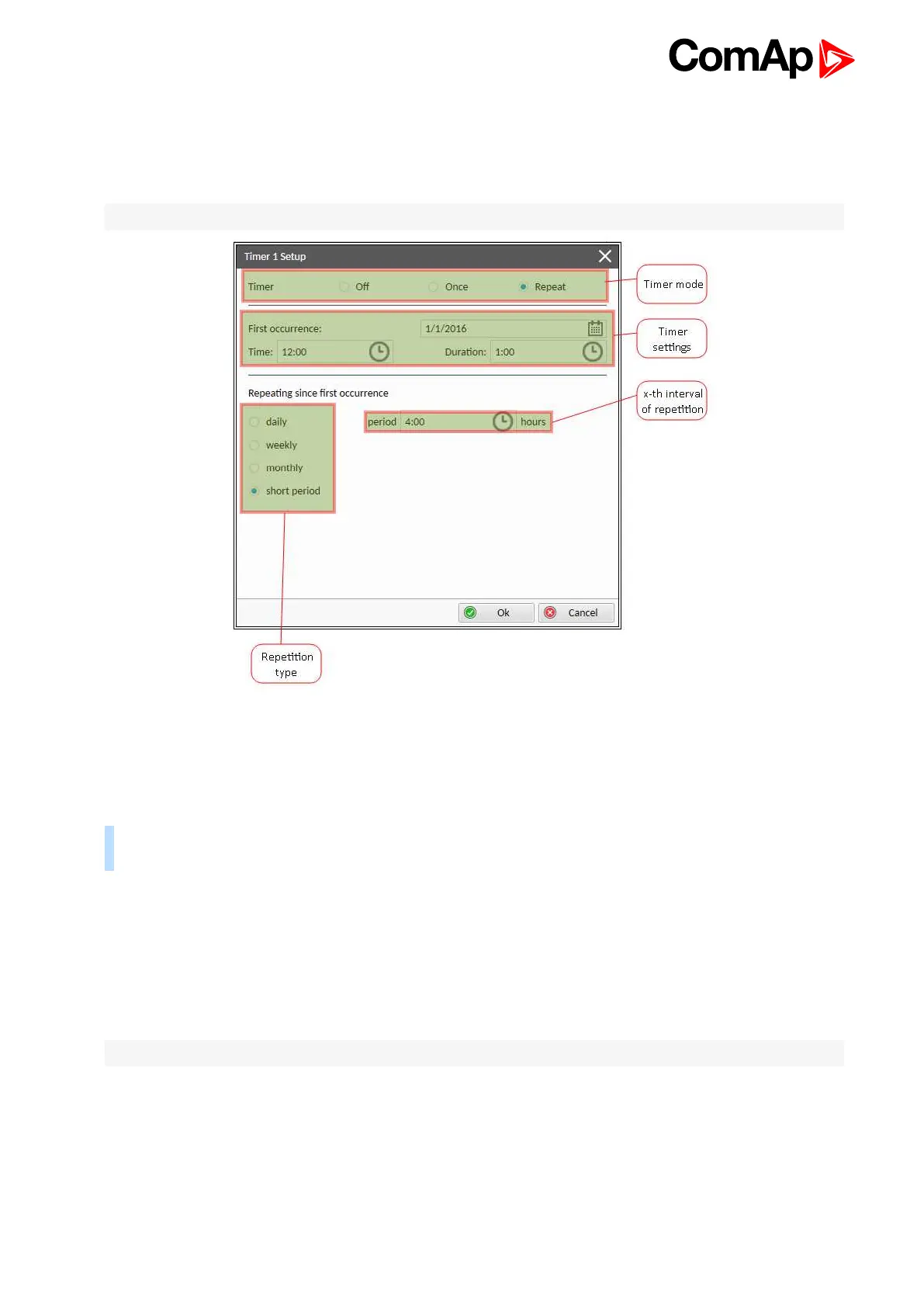

Image 5.28 Short period mode - InteliConfig
In timer mode select Repeat. In repetition type select Short period. In timer settings adjust date and time of first
occurrence of timer. Also adjust the duration of each occurrence of timer. Than select the interval of repetition
(shorter than 1 day).
Example: On image example first start of timer will be 1/1/2016 at 12:00. Duration will be 1 hour. Timer will
be again activated every 4th hour for 1 hour.
Set-up via controller interface
In controller go to the Scheduler setpoint group. Select the function of timer via Timer 1 Function (page 303)
setpoint. Than go to Timer 1 Setup and press enter button. In Timer 1 Repetition (page 304) setpoint select
Repeated mode. Than adjust Timer 1 First Occur. Date (page 305), Timer 1 First Occur. Time (page 305)
and Timer 1 Duration (page 305). In setpoint Timer 1 Repeated (page 306) select Short Period and adjust
Timer 1 Refresh Period (page 307) (interval of repetition).
Note: Use left and right buttons to move between timer setpoints.
5.5.13 Rental Timers
In controller are two timers which are designed like rental timer. Rental timers will stop gen-set after their
elapse.

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
