ComAp InteliLite AMF25 User Manual

InteliLite Global Guide
733
Analog outputs
1 channel AOUT1. Type of output:
0-10V DC
0-20mA
PWM (5V, freq 2,4Hz ÷2,4kHz)
Analog output has 4-pins connector – GND and one pin for each type of output.
All analog inputs can be configured to any logical function or protection.
Supported sensors
Sensors
User curves
PT1000 [°C] (fix)
NI1000 [°C] (fix)
0-2400Ω (fix linear)
± 65 V DC (fix linear)
+-75mV (fix linear)
Thermocpl J [°C] (fix)
Thermocpl K [°C] (fix)
Thermocpl L [°C] (fix)
Thermocpl (nc) J [°C] (fix)
Thermocpl (nc) K [°C] (fix)
Thermocpl (nc) L [°C] (fix)
Thermocpl (nc) J [°F] (fix)
Thermocpl (nc) K [°F] (fix)
Thermocpl (nc) L [°F] (fix)
Address and DIP switch setting
Address configuration
DIP switch determinates CAN address for analog inputs and outputs.
Programming Firmware
Firmware upgrade is via AT-link (TTL). For programming it is necessary to close jumper TEST and switch OFF
and switch ON the power supply.
For programming use FlashProg PC tool version 4.4 or higher.
LED indication
LED status Description
Dark Fw in module does not work correctly.
Flashing Module does not communicate with controller (in case non-zero CAN address)

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC

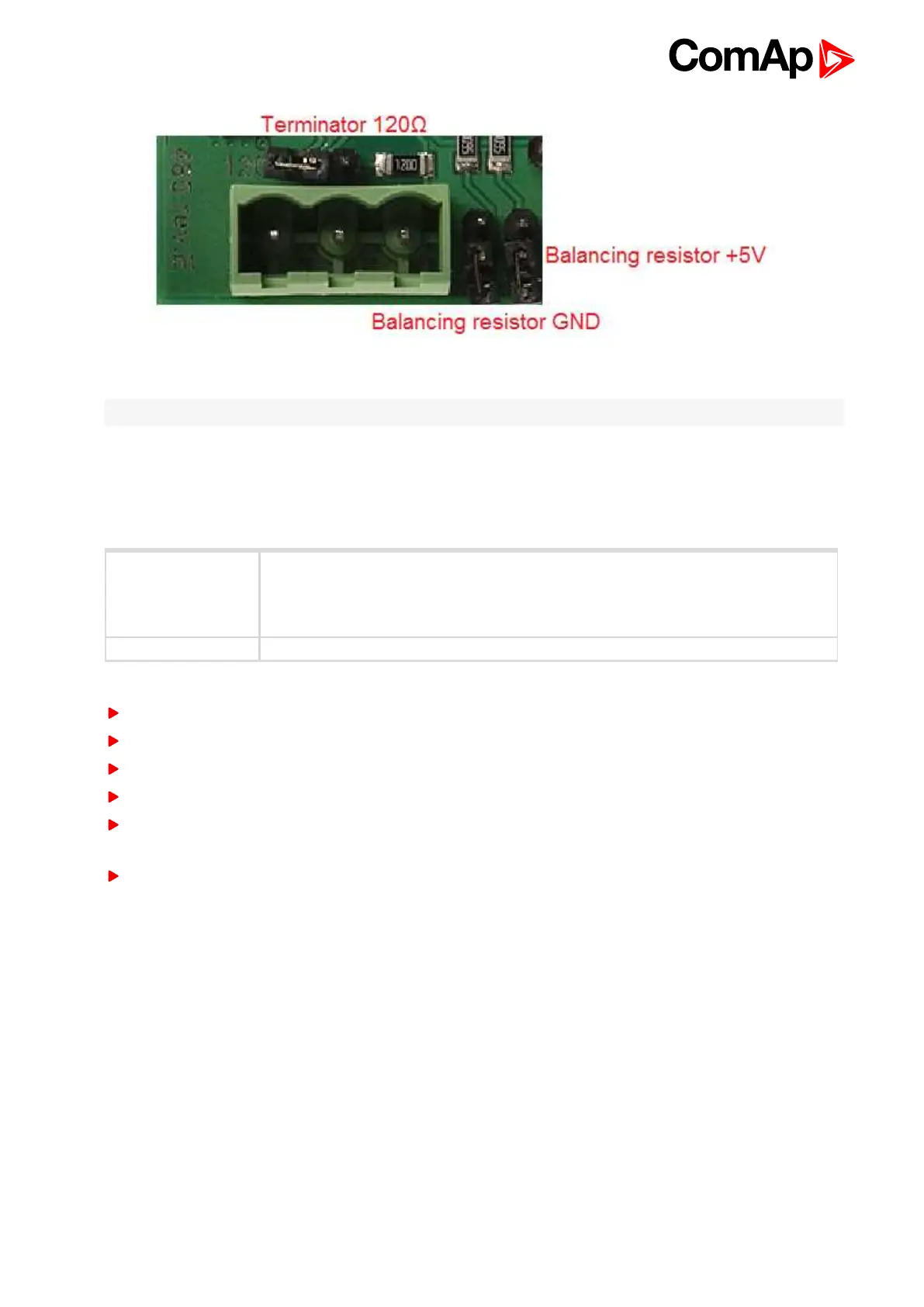

Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
