N.B. The module must be programmed via the BUS line, using the SimpleHome/RS232 interface (20022611) and the SimpleProg
programming software.
Specifi cations are subject to change without notice.

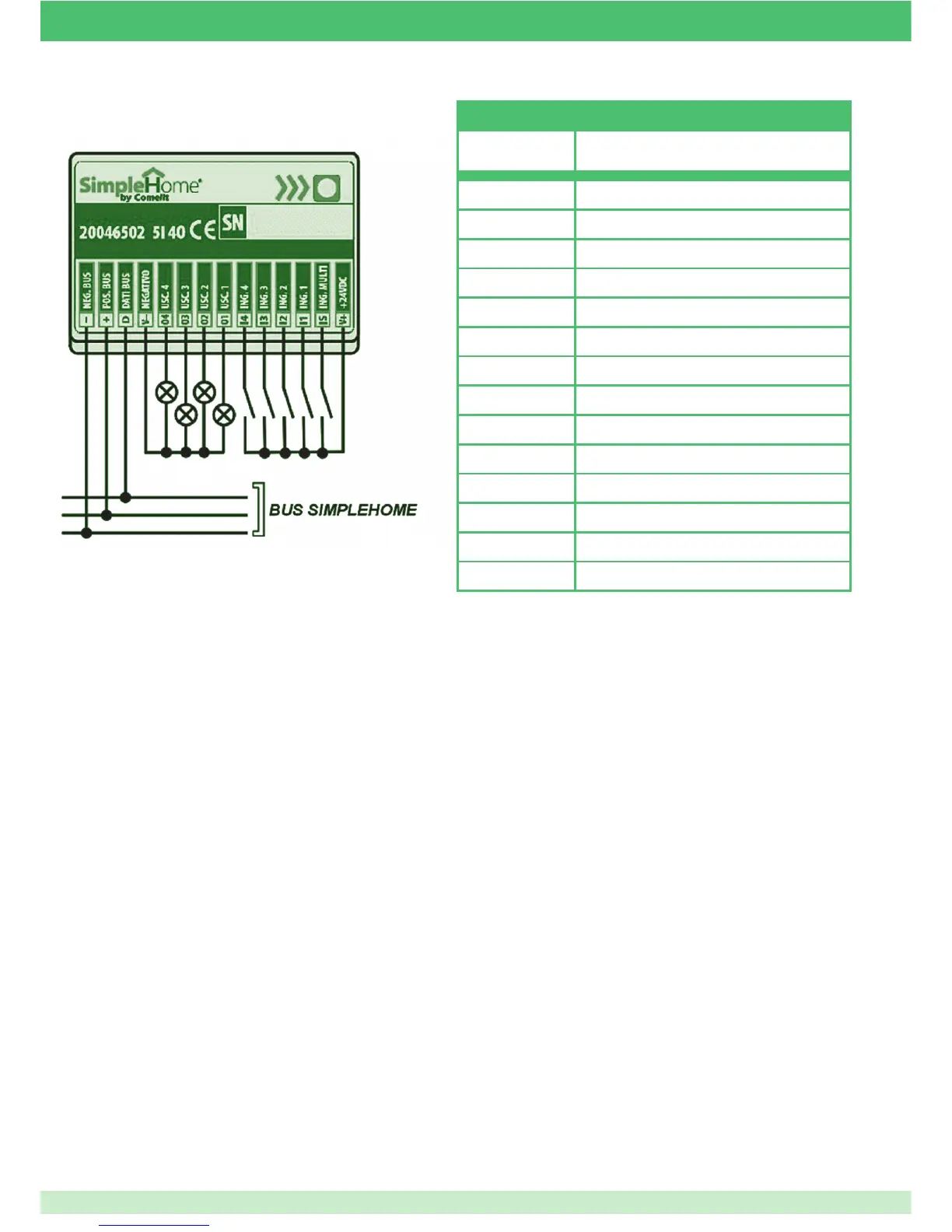

CONNECTION TERMINALS
Term. Function
- BUS power supply negative
+ BUS power supply +24 Vdc
D Bus data line
V- Support negative (outputs)
O4 Output 4
O3 Output 3
O2 Output 2
O1 Output 1
I4 Input 4
I3 Input 3
I2 Input 2
I1 Input 1
IS Multiple command (scenario)
V+ +24 Vdc support (inputs)
green (bus)
red (+)
blue (-)
