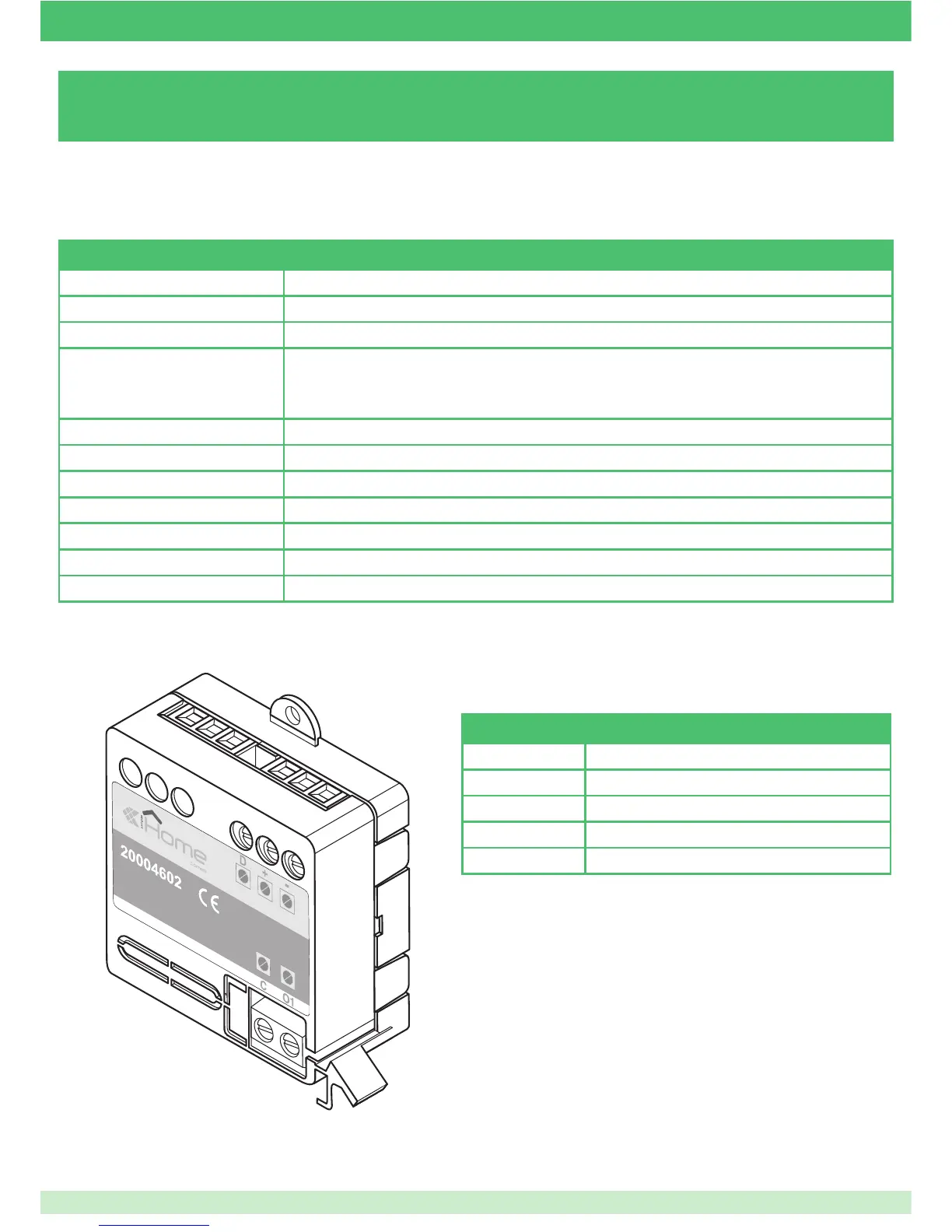

2.16 - ART. 20004602 – MODULE WITH 1 OUTPUT
SimpleHome module Art. 20004602 has 1 output, which controls an on-board 16A relay (can be programmed as a NO. NC. output using
suitable programming software).
Module Art. 20004602 allows fl ush mounting in residential series boxes or on DIN rails.
Technical characteristics
Power supply voltage 24 Vdc ± 5%
Absorption MAX. 20 mA
Outputs • 1 16A relay output (230 Vac), resistive loads
Indications • 1 LEDs (red) indicating relay active
• 1 LED (yellow) indicating bus status:
- fl ashing indicates data transmission over the bus
- lit steadily indicates lack of power supply negative or incorrect connection of the device
Positioning On DIN rail or in fl ush-mounted boxes
Approvals CE
Operating temperature 0° to 50°C
Storage temperature -10° to +70°C
Relative air humidity 5 to 95% with no condensation
Weight 70 g (not including packaging)
Dimensions 58x53x18 mm (1 DIN module)
CONNECTION TERMINALS
Terminal Function
- BUS power supply negative
+ BUS power supply +24 Vdc
D BUS data line
O1 / C On-board 16A relay output
