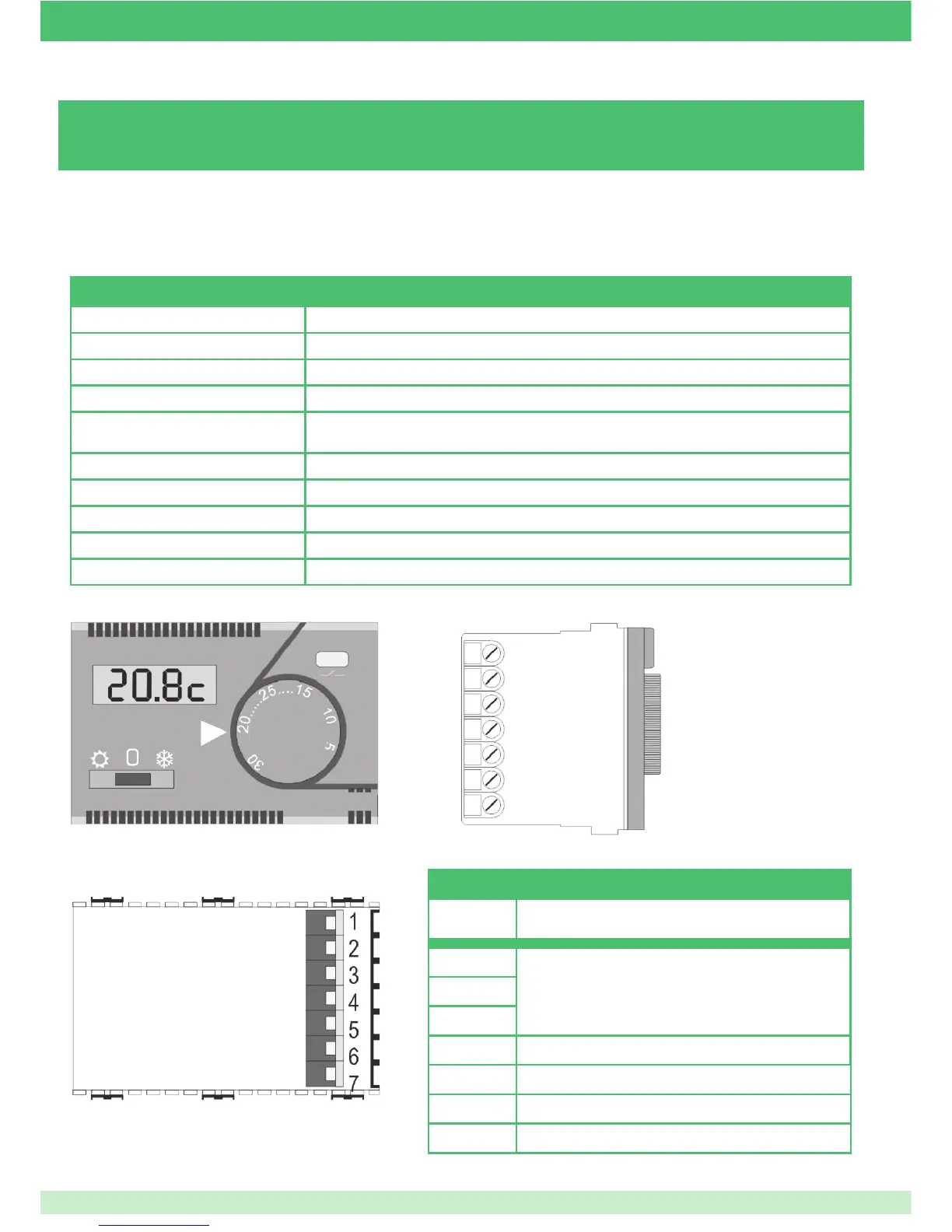

2.7 - ART. 20046709 - SIMPLEHOME FLUSH-MOUNTED LCD THERMOSTAT MODULE

Room thermostat with LCD display, offering the option of connection to the SimpleHome system for supervisor control. It allows temperature

adjustment between 5 and 30°C by means of a knob, and the temperature can be viewed via the LCD display. The device sends a data package

containing the measured temperature value over the bus at regular intervals and, immediately afterwards, measures the room temperature. Then,

depending on the setpoint values, it updates the local relay and sends a remote output activation or deactivation command over the bus.

Technical characteristics

Power supply voltage 24 Vdc ± 5%

Absorption min. 5.5 mA, max. 20 mA

Sensor range +5°C to +30°C

Positioning In  ush-mounted boxes compatible with the most common civil series

Applicable standards

electromagnetic compatibility: EN 50081-1 (interference emission)

and EN50082-2 (resistance to interference)

Approvals CE

Operating temperature 0° to 50°C

Storage temperature -10° to +70°C

Relative air humidity 5 to 95% with no condensation

Dimensions 3  ush-mounted modules from the most common civil series

TEMPERATURE MODULE

Term. Function

Local relay intended for controlling a local pump/valve (NC-

C-NO)

4 Temperature reduction (active if closed at negative)

5 BUS data line

6 +24 Vdc power supply

7 Power supply negative
