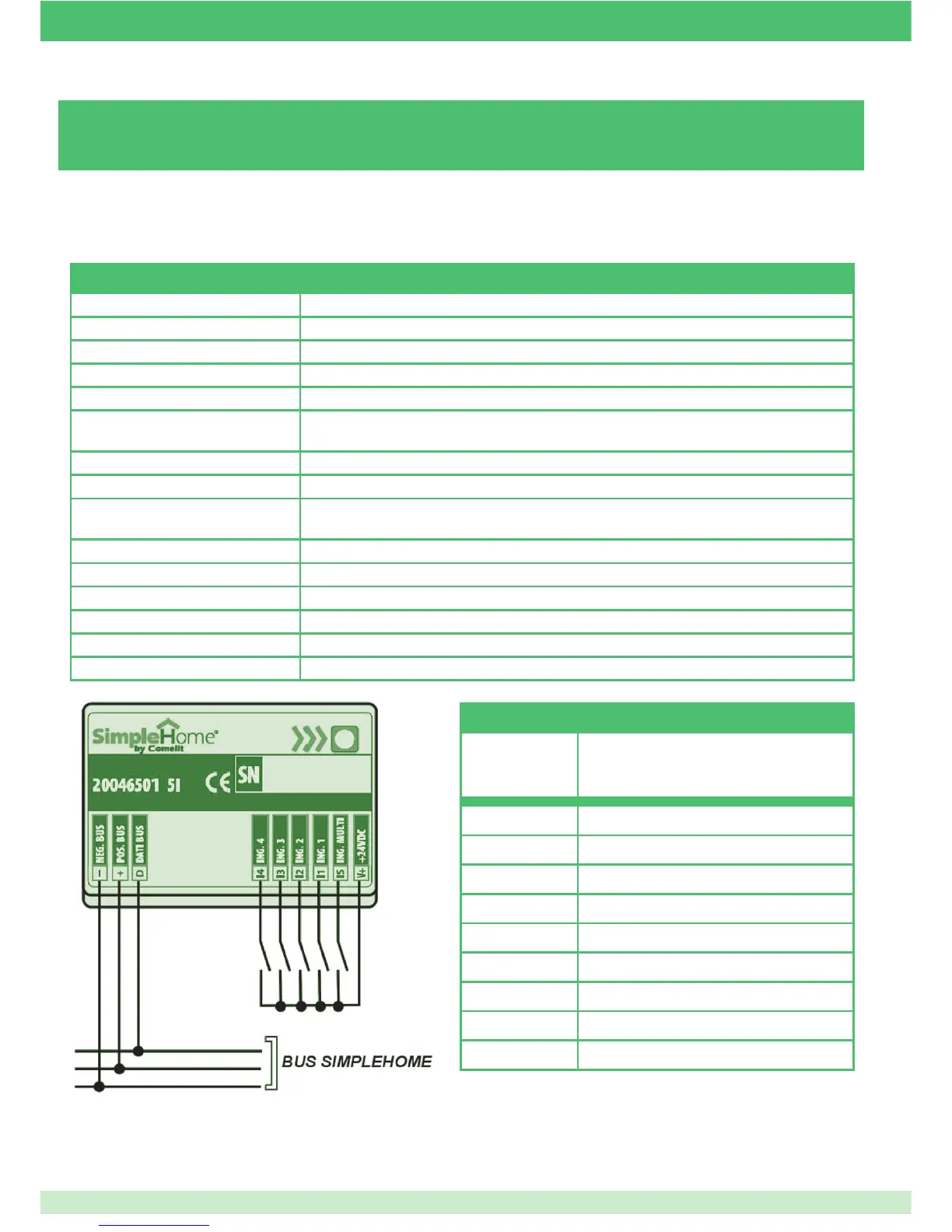

2.2 - ART. 20046501 - SIMPLEHOME FLUSH-MOUNTED MODULE WITH 5 DIGITAL INPUTS (5I)

The module with 5 digital inputs allows the connection of up to 5 contacts (buttons, switches, diverters, inverters, general sensors...)

for controlling the outputs on the SimpleHome system module. The compact interface can be installed in traditional "3-module"

boxes (concealed behind the electromechanical modules in the civil series) or in junction boxes. The module with 5 digital inputs

is powered directly by the bus.

N.B. The module must be programmed via the BUS line, using the SimpleHome/RS232 interface (20022611) and the SimpleProg

programming software.

Speciﬁ cations are subject to change without notice.

Technical characteristics

Power supply voltage 24 Vdc ± 5%

Absorption min. 5 mA, max. 22 mA

Inputs 4+1, optically coupled digital type

Max. input cable length 25 m

Protection against reverse polarity

Indications

1 indicator LED: when ﬂ ashing, indicates data transmission via bus, when lit steadily indicates lack of

power supply negative or incorrect device connection

Terminals removable for BUS connection

Positioning in ﬂ ush-mounted boxes

Applicable standards

electromagnetic compatibility: EN 50081-1 (interference emission)

and EN50082-2 (resistance to interference)

Approvals CE

Operating temperature 0° to 50°C

Storage temperature -10° to +70°C

Relative air humidity 5 to 95% with no condensation

Weight 24 g (not including packaging)

Dimensions 41x29x9 mm

green (bus)

red (+)

blue (-)

CONNECTION TERMINALS

Term. Function

- BUS power supply negative

+ BUS power supply +24 Vdc

D Bus data line

I4 Input 4

I3 Input 3

I2 Input 2

I1 Input 1

IS Multiple command (scenario)

V+ +24 Vdc support
