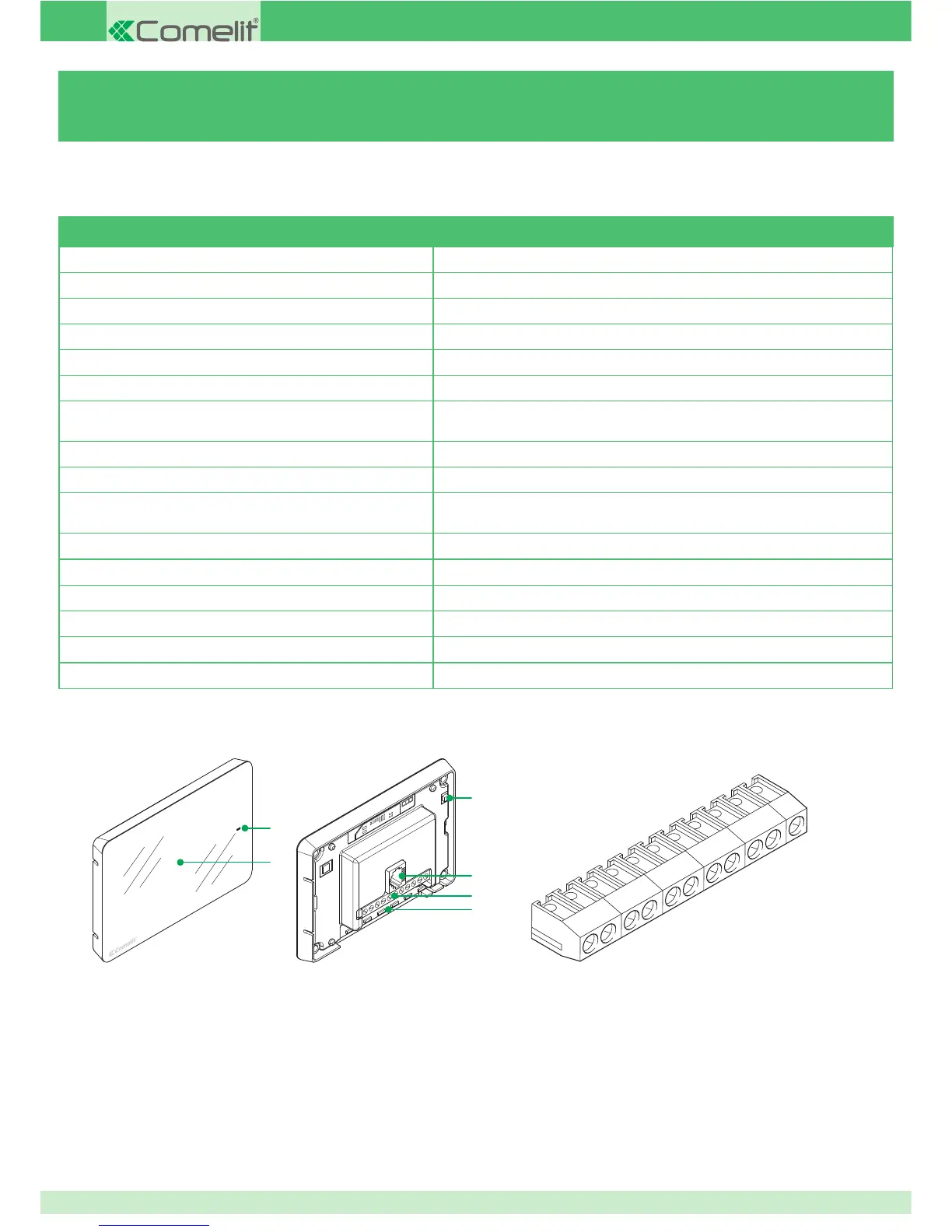

2.21 - MINITOUCH MONITOR ART. 20034607
3.5" MiniTouch with supervisor function. To be connected to the SimpleHome BUS for automation system management, controlling lights,
loads, shutters, climate, scenarios or irrigation, and to the SimpleSafe System for anti-intrusion system viewing and control.
V+ V-: Power supply terminals
D: SimpleHome bus data terminal
A B: 485 terminals for alarm control panel
NC COM NO: Thermostat relay voltage-free contacts
I1 I2 I3: Open Collector outputs for multi-speed Fan-coil
connection.
1 RFID reader.
2 3.5” touch screen.
3 Tamper.
4 Ethernet connector (for future use).
5 Terminal block for connection.
6 Magic light.
Technical characteristics
Colour Black
Magic Light RGB LED illumination
Display 3.5" (7 cm) colour touch screen with 320x240 pixel resolution
Viewing angle (right / left / high / low) 50° / 50° / 45° / 50°
Micro SD card slot YES (for future uses)
Power supply • 13.8 Vdc / 25 Vdc
Current absorption
355 mA @ 13.8 Vdc
175 mA @ 25 Vdc
Size (HxWxD) 85 x 123 x 28.6 mm
O.C. outputs YES (500 mA MAX.)
Relay output
• 30 Vdc / 5 A
• 250 Vac / 10 A
Operating temperature -15° / +55°C
Weight 150 g
On-board thermostat YES
On-board RFID reader YES
Mounting of box 503 - 503E or similar YES
Ethernet port YES (for future uses)
1
2
3
4
5
6
V+
V-
D
A
B
NC
COM
NO
I1
I2
I3
