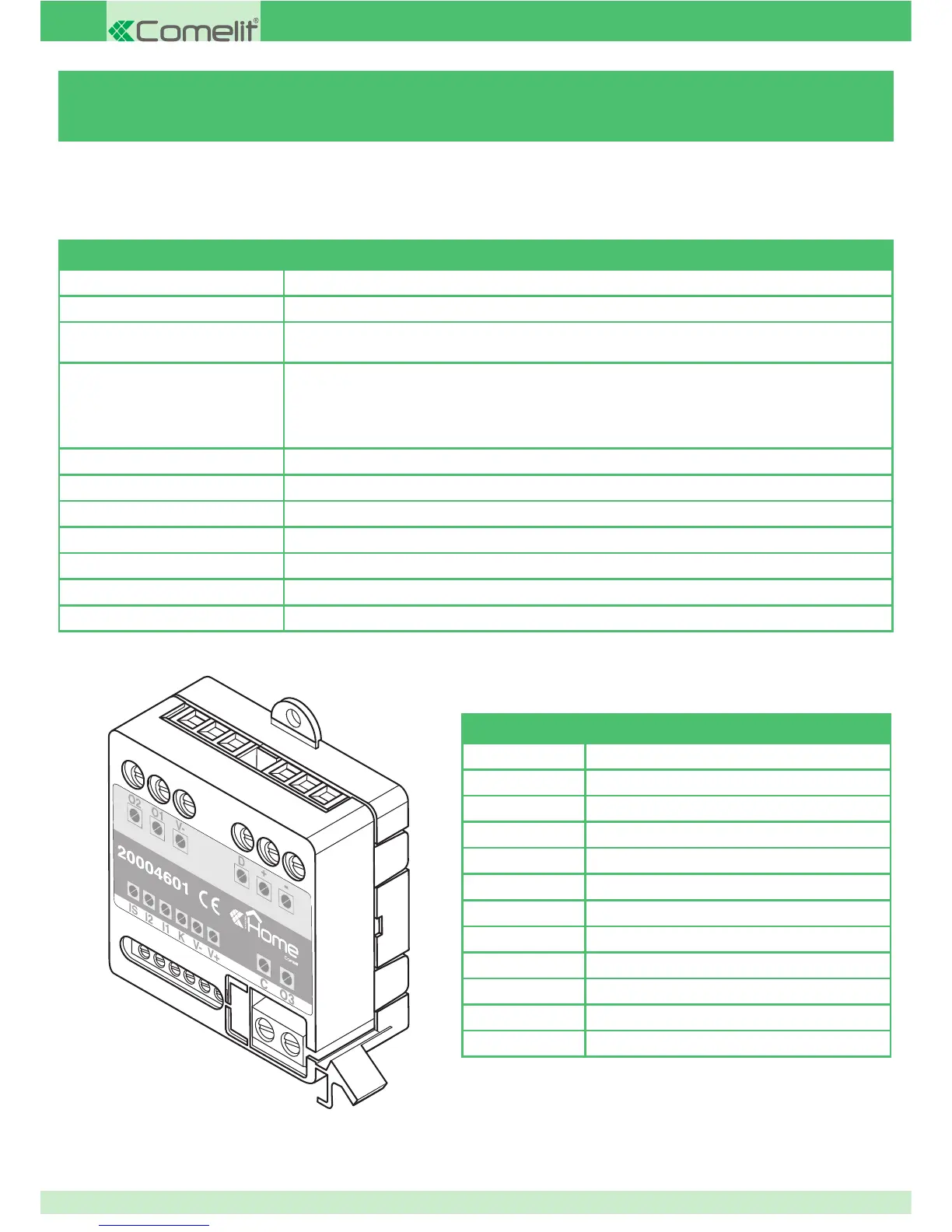

2.15 - ART. 20004601 – MODULE WITH 3 INPUTS AND 3 OUTPUTS (3I3O)
SimpleHome module Art. 20004601 has 3 inputs (voltage-free contacts, E.G. buttons, sensors, etc...) and 3 outputs, 2 of which require
connection of an external relay (E.G. Art. 20004603) while the other controls an on-board 16A relay (this can be programmed as a NO. NC.
output using suitable programming software).
Module Art. 20004601 allows fl ush mounting in residential series boxes or on DIN rails.
Technical characteristics
Power supply voltage 24 Vdc ± 5%
Absorption MAX. 115 mA
Outputs • 1 16A relay output (230 Vac), resistive loads
• 2 transistor outputs +24 Vdc with output active, Max. 50 mA
Indications • 1 LEDs (red) indicating relay active
• 1 LED (yellow) indicating bus status:
- when fl ashing, indicates data transmission over the bus, when lit
- steadily, indicates lack of power supply negative
or incorrect connection of the device
Positioning On DIN rail or in fl ush-mounted boxes
Approvals CE
Operating temperature 0° to 50°C
Storage temperature -10° to +70°C
Relative air humidity 5 to 95% with no condensation
Weight 70 g (not including packaging)
Dimensions 58x53x18 mm (1 DIN module)
CONNECTION TERMINALS
Terminal Function
- BUS power supply negative
+ BUS power supply +24 Vdc
D BUS data line
V- Common for outputs O1 and O2
O1 / O2 Transistor outputs (+24 Vdc with output active)
O3 / C On-board 16A relay output
V+ reference +24 Vdc for inputs
V- / K Leave shorted for input reference at +24 Vdc
I1 Input 1
I2 Input 2
IS Scenario input
