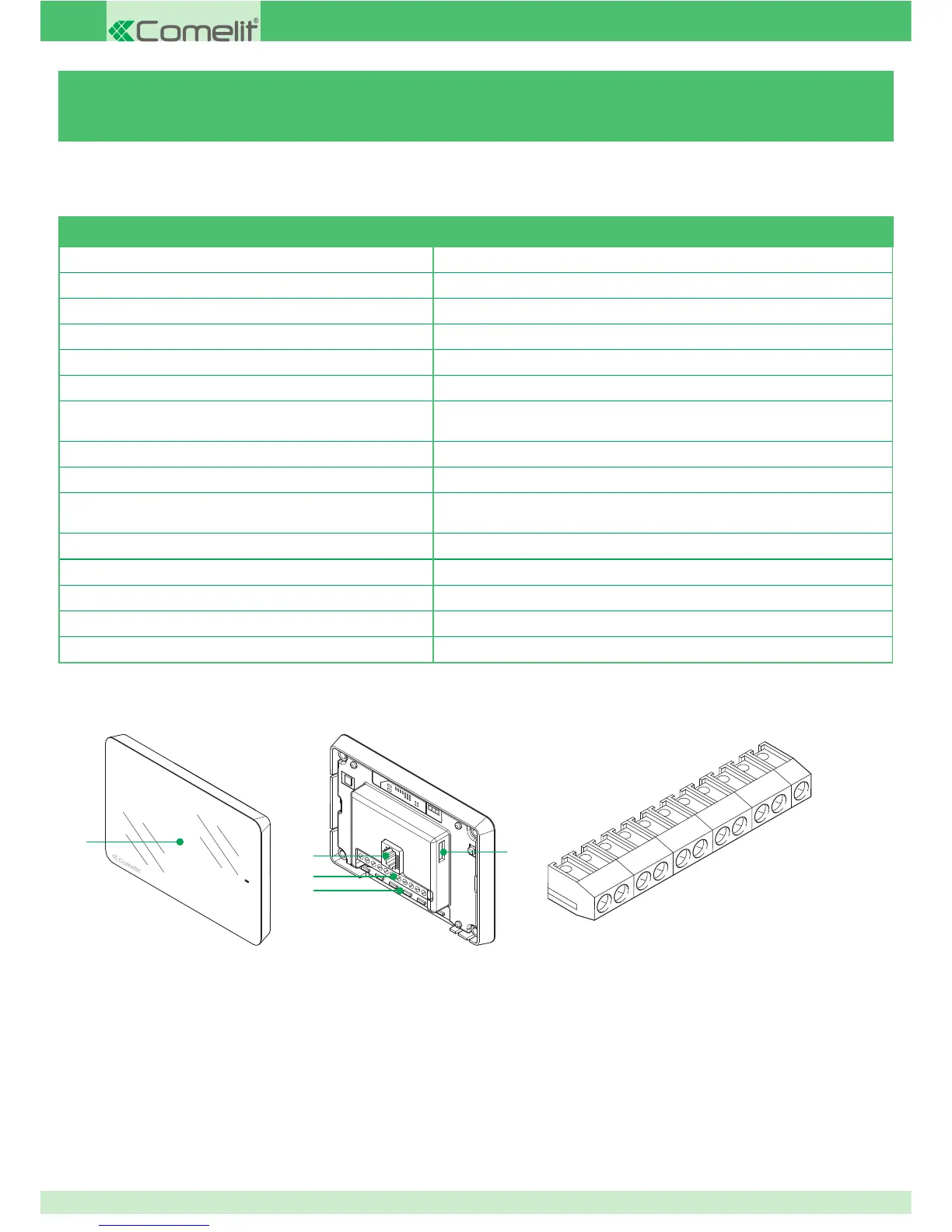

2.19 - ART. 20003001 – MINITOUCH TIMER-THERMOSTAT
1
2
3
4
5
3.5" MiniTouch with timer-thermostat function. To be connected to the SimpleHome bus. Allows control, monitoring and scheduling of all
climate zones within the system (sensors, thermostats, Minitouch)
Technical characteristics
Colour Black
Smart Light RGB LED illumination
Display 3.5" (7 cm) colour touch screen with 320x240 pixel resolution
Viewing angle (right / left / high / low) 50° / 50° / 45° / 50°
Micro SD card slot YES (used for loading the home automation system confi guration)
Power supply • 12 Vdc / 24 Vdc
Current absorption
355 mA @ 13.8 Vdc
175 mA @ 25 Vdc
Size (HxWxD) 85 x 123 x 28.6 mm
O.C. outputs YES (500 mA MAX.)
Relay output
• 30 Vdc / 5 A
• 250 Vac / 10 A
Operating temperature -15° / +55°C
Weight 150 g
On-board thermostat YES
Mounting of box 503 - 503E or similar YES
Ethernet port YES (for future uses)
1: 3.5” touch screen.
2: Ethernet connector (for future uses).
3: Terminal block for connection.
4: Smart light.
5: Micro SD card slot.
V+
V-
D
A
B
NC
COM
NO
I1
I2
I3
V+ V-: Power supply terminals
D: SimpleHome bus data terminal
A B: Not used
NC COM NO: Thermostat relay voltage-free contacts
I1 I2 I3: Open Collector outputs for multi-speed Fan-coil
connection.
