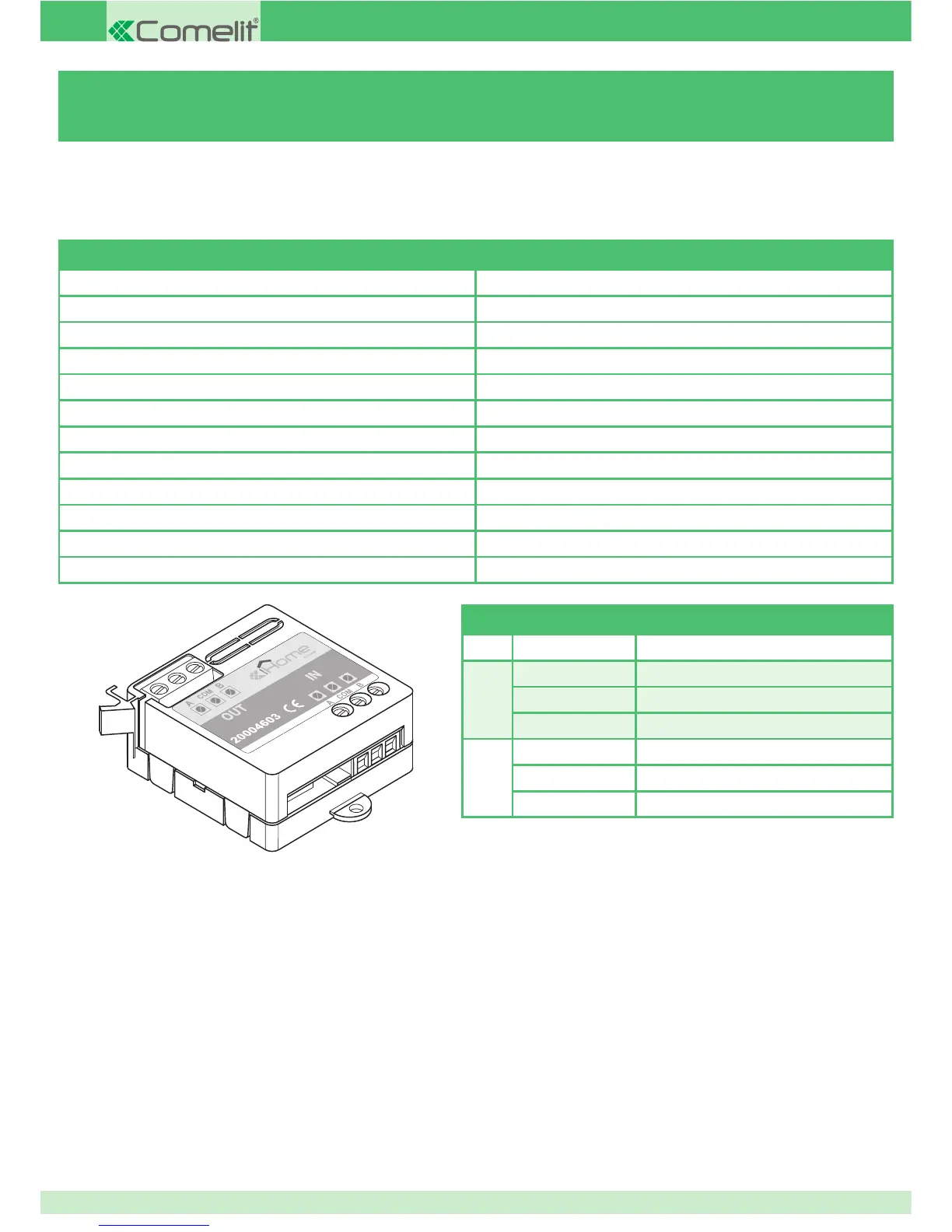

2.17 - ART. 20004603 – MODULE WITH 2 RELAYS
SimpleHome module Art. 20004603 has two 10A relay outputs which are activated from +24 Vdc transistor outputs found, for example, on
modules 20004601 or 20046502.
Module Art. 20004603 allows fl ush mounting in residential series boxes or on DIN rails.
Technical characteristics
Relay activation voltage +24 Vdc
Relay activation current 14 mA per relay
Absorption MAX. 30 mA
Outputs • 2 10A N.O. relay outputs (230 Vac), resistive loads
Indications • 2 LEDs (red) indicating relay active
Positioning On DIN rail or in fl ush-mounted boxes
Approvals CE
Operating temperature 0° to 50°C
Storage temperature -10° to +70°C
Relative air humidity 5 to 95% with no condensation
Weight 70 g (not including packaging)
Dimensions 58x53x18 mm (1 DIN module)
CONNECTION TERMINALS
Terminal Function
IN
A Input 1 +24 Vdc
COM Input common
B Input 2 +24 Vdc
OUT
A Relay output 1
COM Output common
B Relay output 2
N.B. the module cannot be connected directly to the SimpleHome BUS
