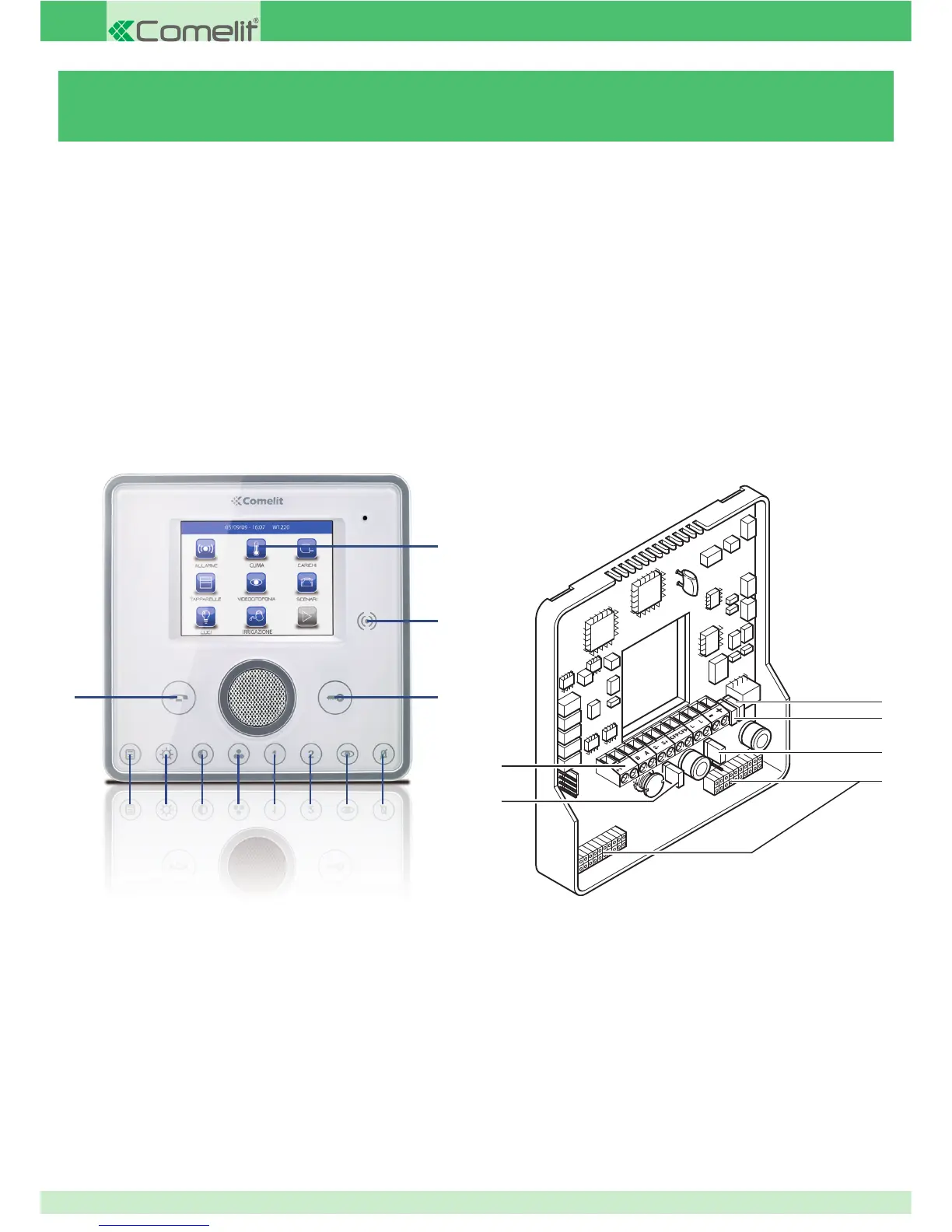

2.20 - PLANUX MANAGER MONITOR ART. 20034801W/B + PLANUX MANAGER BRACKET ART. 6214C
1
4
2
3
5
6
D
1. CN4 CN5 Monitor-bracket connectors.
2. Terminal block for system connection:
S- S+ Terminals for call repetition device.
CFP CFP Floor door call input.
L L Door entry monitor Bus line connection terminals.
- + Terminals for bracket and monitor power supply.
A B Bus for communication with the Simple Safe S series and
Vedo series alarm system.
D (TC/THC) Simple Home home automation Bus.
+VS Not used.
3. CV5 Jumper for video closure.
4. JP10 DO NOT ADJUST.
5. CV6 DO NOT REMOVE.
6. CV8 Termination 485.
2
3
11 10
9
87
654
1
2
1 Touch screen
2 Key sensor
3 Door lock key
4 Privacy / Doctor key (programmable)
5 Self-ignition key (programmable)
6 Programmable key 2
7 Programmable key 1
8 Colour key
9 Contrast key
10 Brightness key
11 Menu key
12 Audio key
3.5” touch screen colour monitor. Full-duplex video door entry function, audio adjustment, customisable ringtones. To be connected to the
SimpleHome BUS for automation system management, e.g. lights, loads, shutters, climate, scenarios or irrigation, and to the SimpleSafe
System for anti-intrusion system viewing and control.
