Comelit simplehome - Page 15

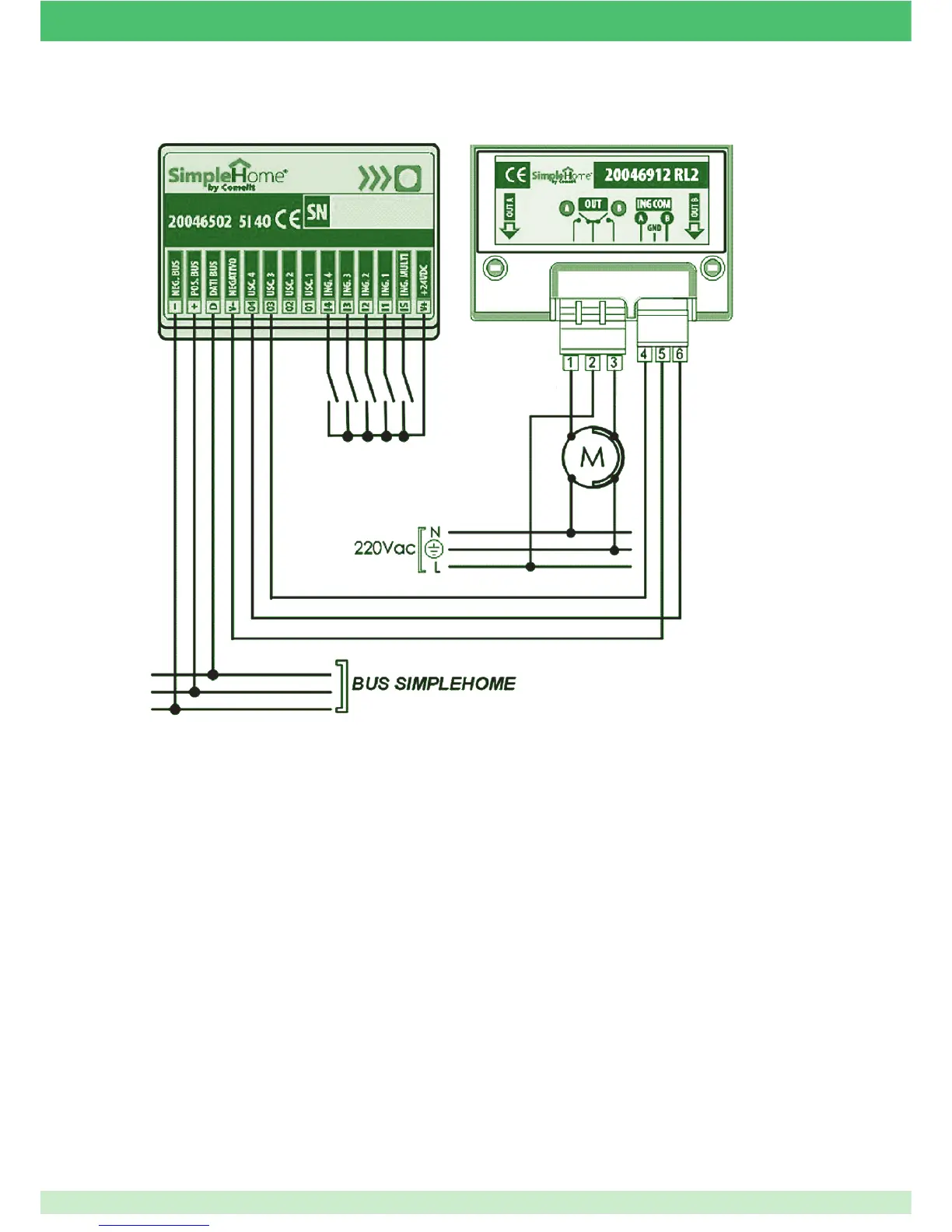

Connection example for module with 5 inputs / 4 transistor outputs used to control an automated rolling shutter
Speci cations are subject to change without notice.
raisecommon
lower
green (bus)
red (+)
blue (-)
15
