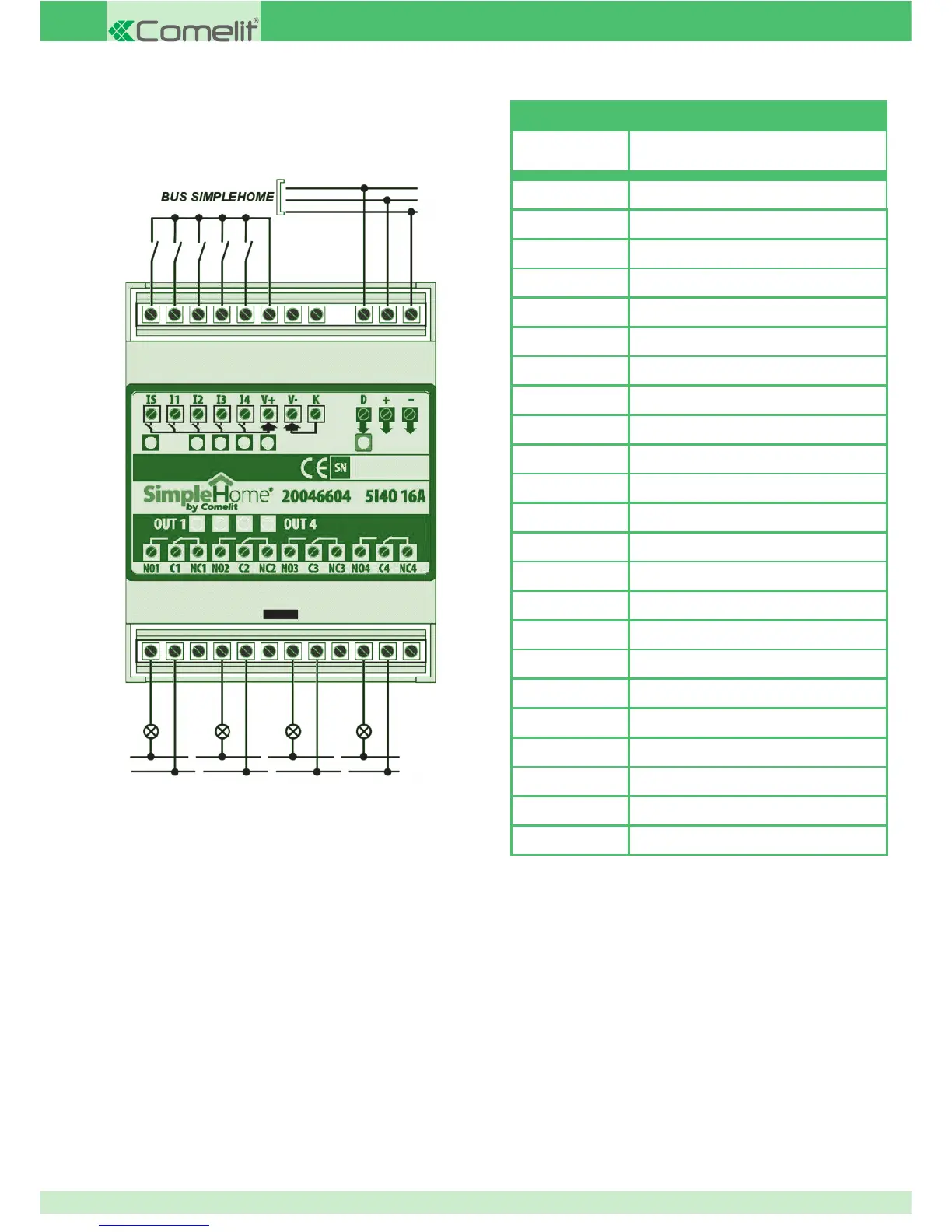

CONNECTION TERMINALS
Term. Function
- BUS power supply negative
+ BUS power supply +24 Vdc
D BUS data line
K Common
V- Support negative
V+ +24 Vdc support
I4 Input 4
I3 Input 3
I2 Input 2
I1 Input 1
IS Multiple command (scenario)
NO1 Output 1 – NO contact
C1 Output 1 – Common
NC1 Output 1 – NC contact
NO2 Output 2 – NO contact
C2 Output 2 – Common
NC2 Output 2 – NC contact
NO3 Output 3 – NO contact
C3 Output 3 – Common
NC3 Output 3 – NC contact
NO4 Output 4 – NO contact
C4 Output 4 – Common
NC4 Output 4 – NC contact
N.B. The module must be programmed via the BUS line, using the SimpleHome/RS232 interface (20022611) and the SimpleProg programming
software.
Speci cations are subject to change without notice.
green (bus)
red (+)
blue (-)
24
