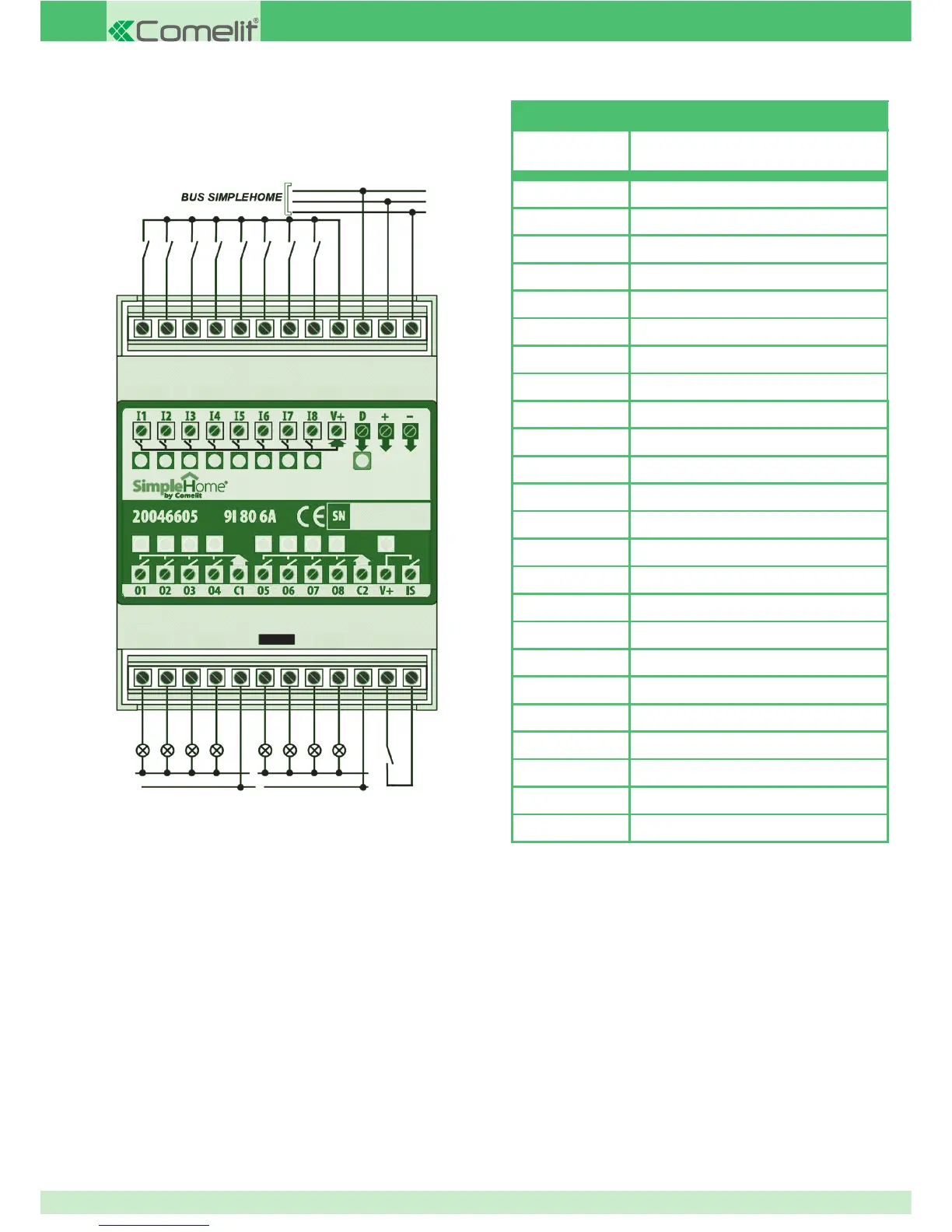

CONNECTION TERMINALS
Term. Function
- BUS power supply negative
+ BUS power supply +24 Vdc
D BUS data line
V+ +24 Vdc support
I8 Input 8
I7 Input 7
I6 Input 6
I5 Input 5
I4 Input 4
I3 Input 3
I2 Input 2
I1 Input 1
O1 Output 1 – NO contact
O2 Output 2 – NO contact
O3 Output 3 – NO contact
O4 Output 4 – NO contact
C1 Output common 1-2-3-4
O5 Output 5 – NO contact
O6 Output 6 – NO contact
O7 Output 7 – NO contact
O8 Output 8 – NO contact
C2 Output common 5-6-7-8
V+ +24 Vdc support
IS Multiple command (scenario)
N.B. The module must be programmed via the BUS line, using the SimpleHome/RS232 interface (20022611) and the SimpleProg programming
software.
Speci cations are subject to change without notice.
green (bus)
red (+)
blue (-)
