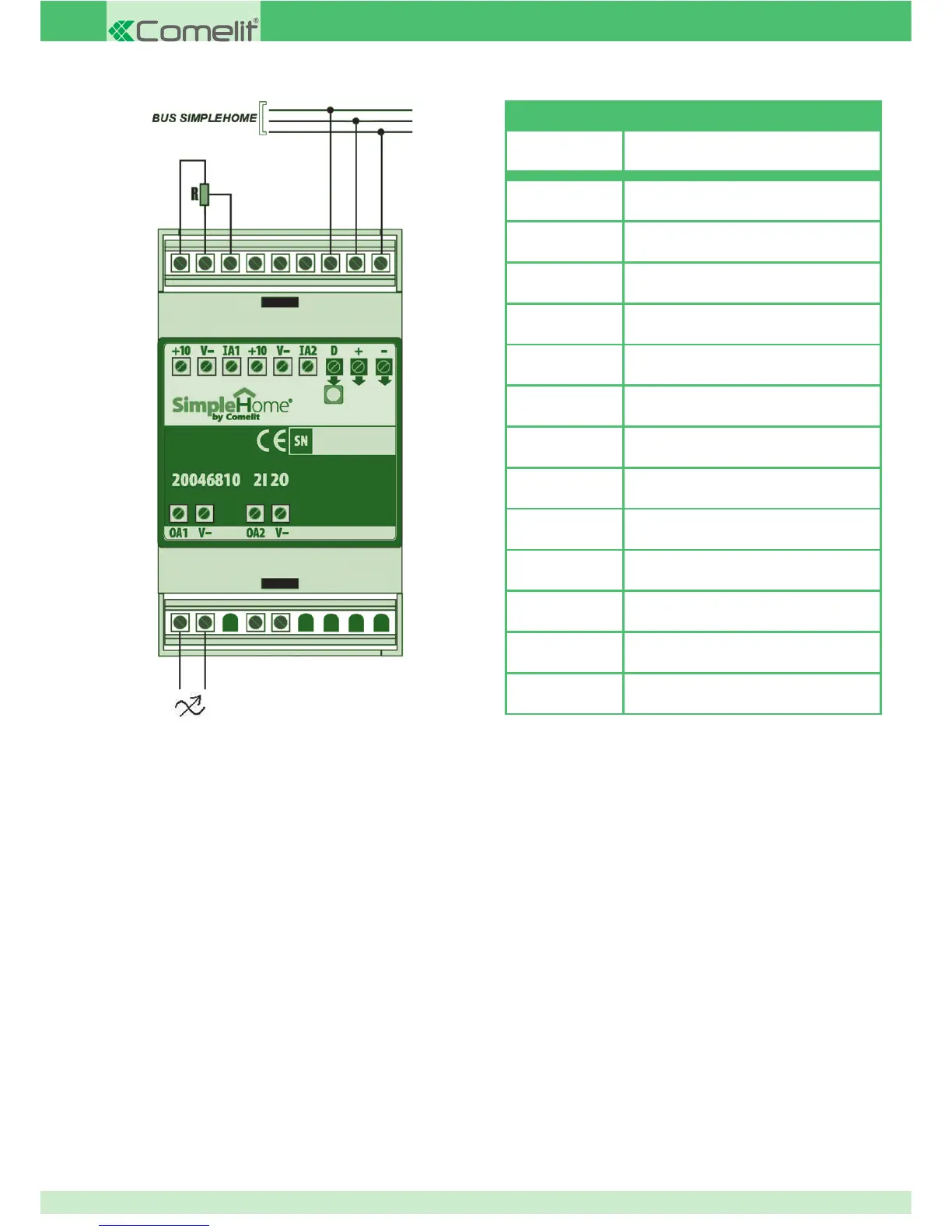

CONNECTION TERMINALS
Term. Function
- BUS power supply negative
+ BUS power supply +24 Vdc
D BUS data line
IA2 Input 2 (0-10 V)
V- GND
+10 +10 Vdc support at input 2
IA1 Input 1 (0-10 V)
V- GND
+10 +10 Vdc support at input 1
OA1 Output 1 (0-10 V)
V- Output 1 support negative
OA2 Output 2 (0-10 V)
V- Output 2 support negative
N.B. The module must be programmed via the BUS line, using the SimpleHome/RS232 interface (20022611) and the SimpleProg
programming software.
Specifi cations are subject to change without notice.
green (bus)
red (+)
blue (-)
DIMMER OR BALLAST
ELECTRONIC
