Installing CAP Ms
6 SecuretheMountingBrackettothewall
(orothersuitableverticalsurface)
showntotheright.
a Installthemountingbracketusing4
M6screwanchors(notincluded)or
suitablelagboltsaccordingtothe
drillinglayout.
b ConfirmthattheMountingBracket
issecurelyfastenedtothewall.
The M6 screw anchors do not ship
with the CAP M as the anchor type is
dependent on the on-site conditions
(wall structure and materials). Use
screw anchors that are rated for the
mounting surface.

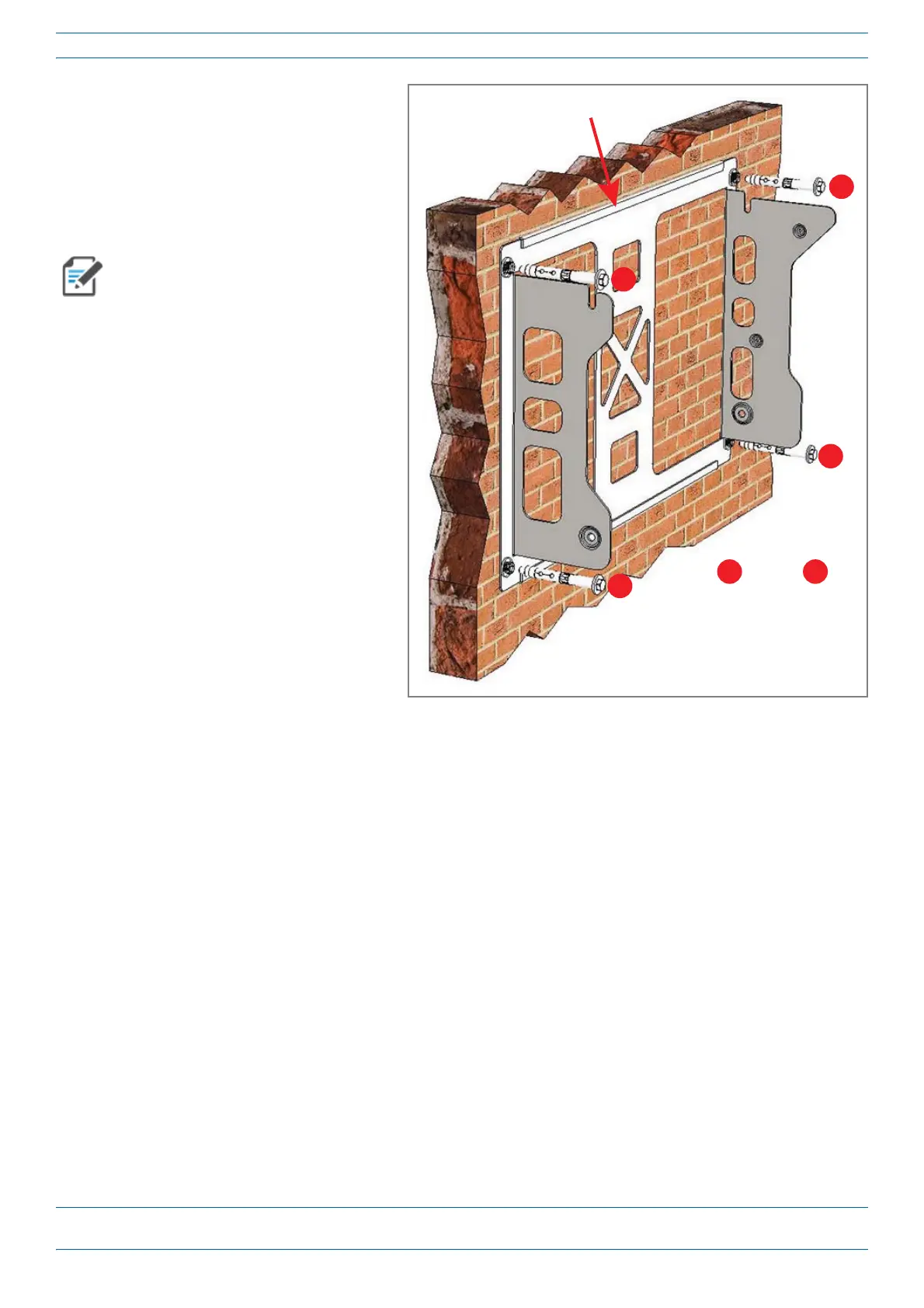

Single Mounng Bracket
1
2
3
4
1
through
4
are the four screw anchors
