CommScope Era CAP M 9 - Mount Two CAP Ms Using a Dual Mounting Bracket

M0201AJB Era
™
Medium Power Carrier Access Point Installation Guide
© October 2018 CommScope, Inc. Page 27
Installing CAP Ms

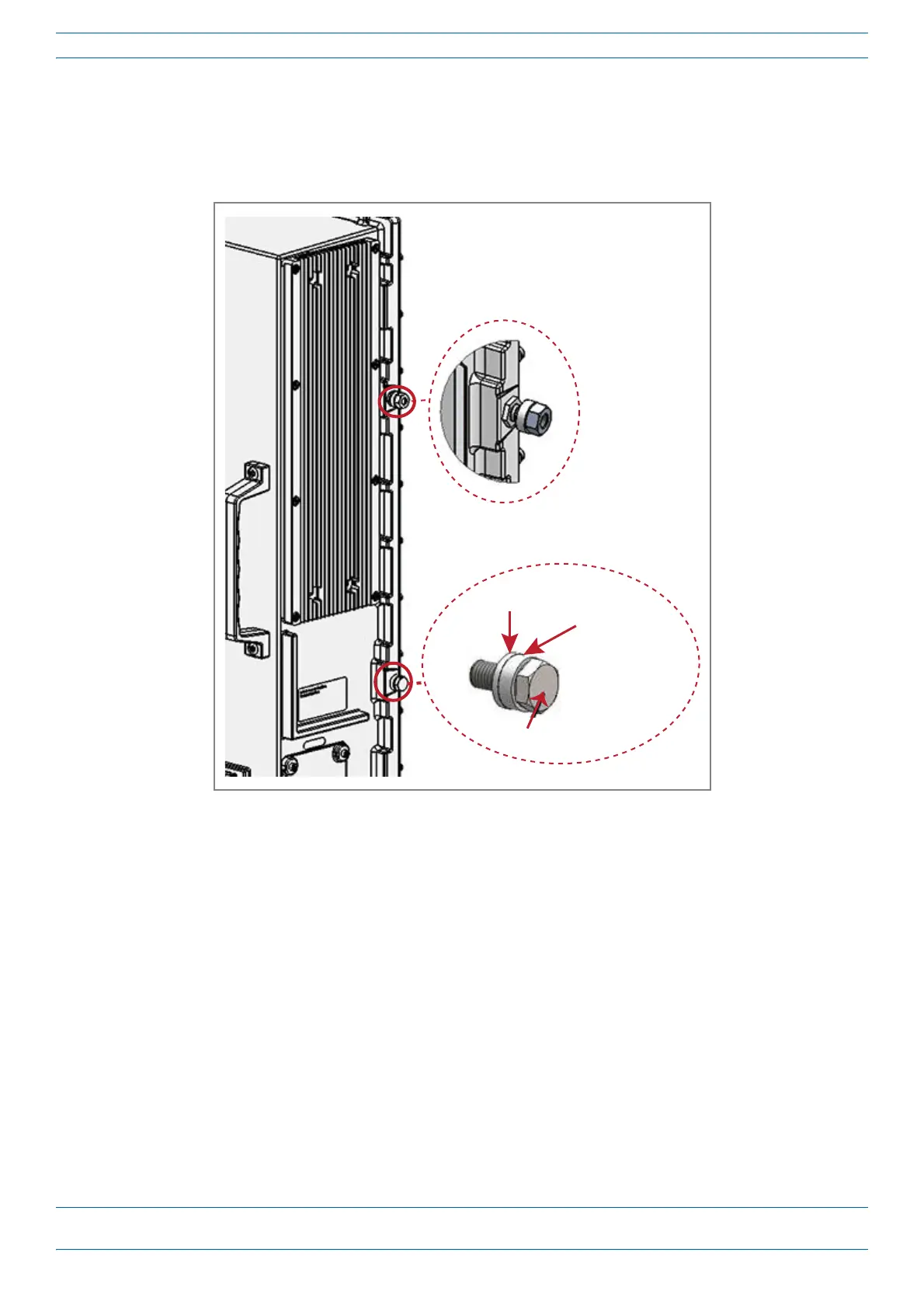

7 FrombothsidesoftheCAPM:
a LoosentheM6pins,leavingitswasherinplace.
b RemovethetwoM6screwsandtheirM6plainandM6split-lockwashers;reservethescrewsand
washersasyouwilllaterreinstallthem.
M6 plain washer
M6 split-lock washer
M6x12 screw
Loosen the M6 pin
Remove the M6x12 screw and its washers
