Installing CAP Ms

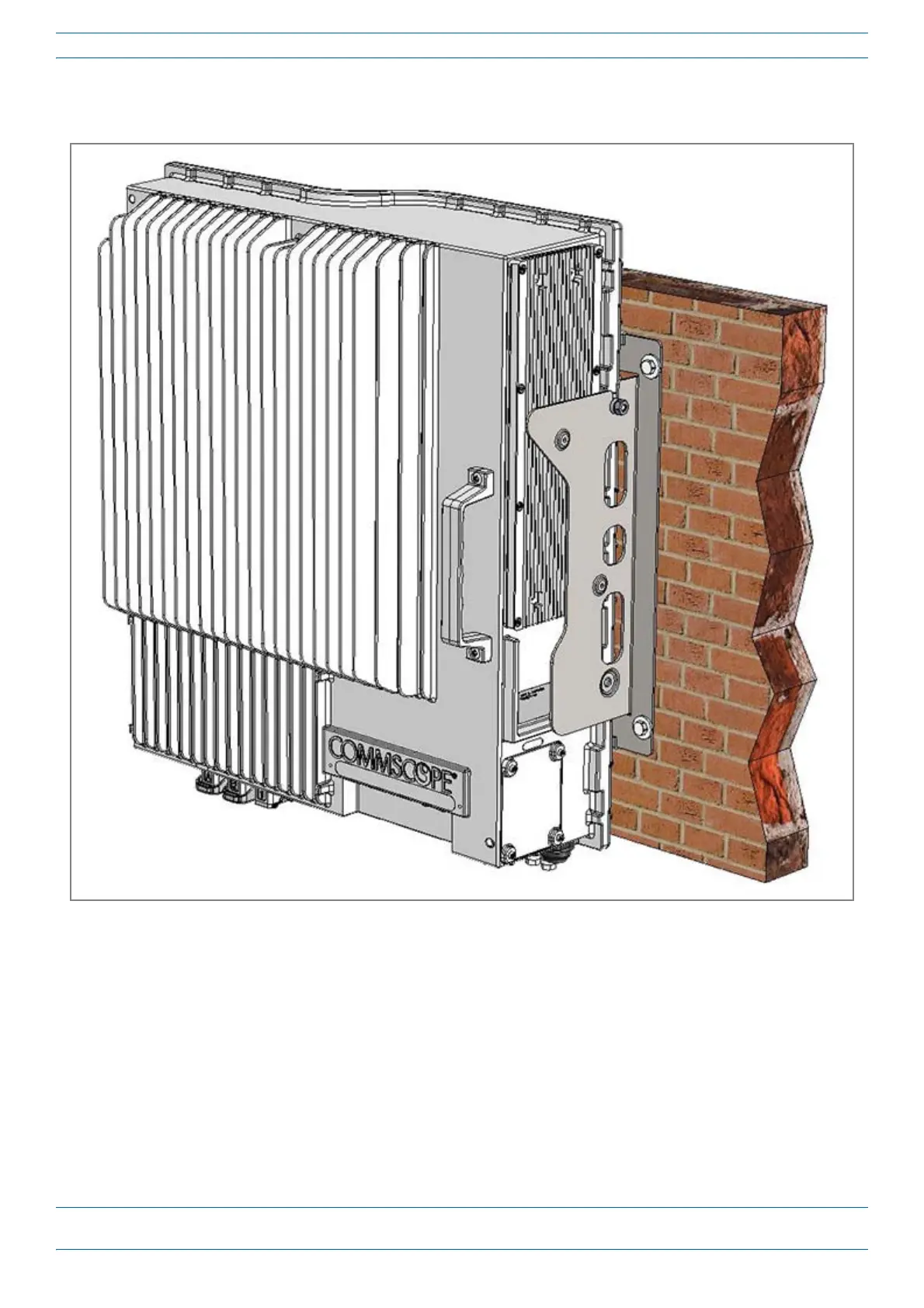

8 UsebothhandlesontheCAPMtoliftitabovetheMountingBracket,andthenloweritintoplace.TheM6
pinsthatyouloosenedin
Step7onpage27mustalignwiththeMountingBracketslots,asshownbelow.
