M0201AJB Era
™
Medium Power Carrier Access Point Installation Guide
© October 2018 CommScope, Inc. Page 29
Installing CAP Ms
9 OntherightsideoftheCAPM,slideawasheroverthethreadedM6pin,andthensecuretheCAPMtothe
MountingBracketbytorquingtheM6pinto11N-m.
10 RepeatStep9ontheleftsideoftheCAPM.

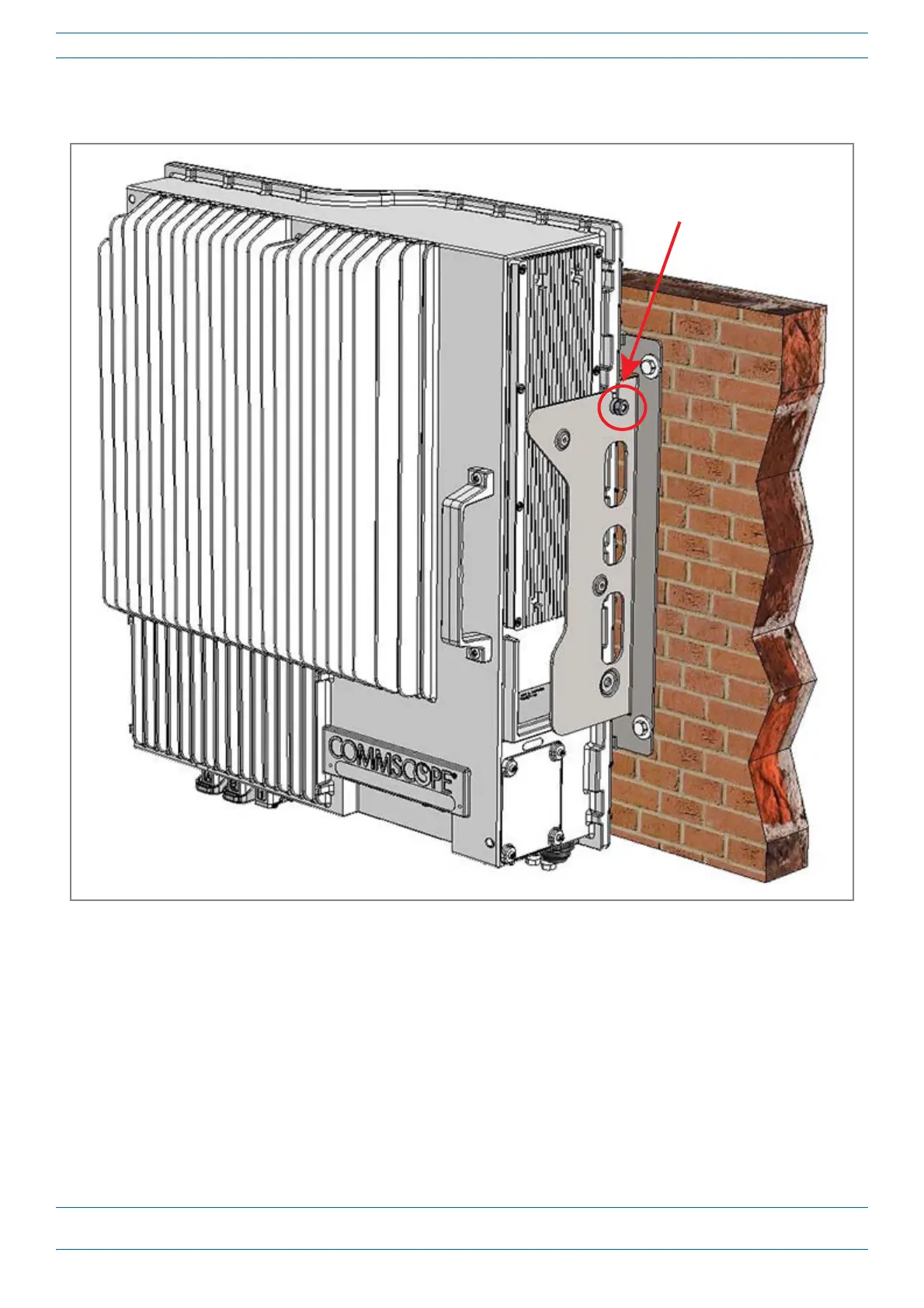

Align the M6 pins with the
Mounng Bracket slots
