Compaq ProLiant 3000 User Manual

4-1
Compaq ProLiant 3000 Servers, for use with Intel 350 MHz or greater processor-based servers only, Maintenance and Service Guide
Chapter 4
Connectors, Switches, Jumpers, and LEDs
This chapter provides connector, switch, jumper, and LED information for Compaq
ProLiant 3000 Servers.
Connectors
This section contains information concerning all connectors located on ProLiant 3000 Servers.
Rear Panel Connectors

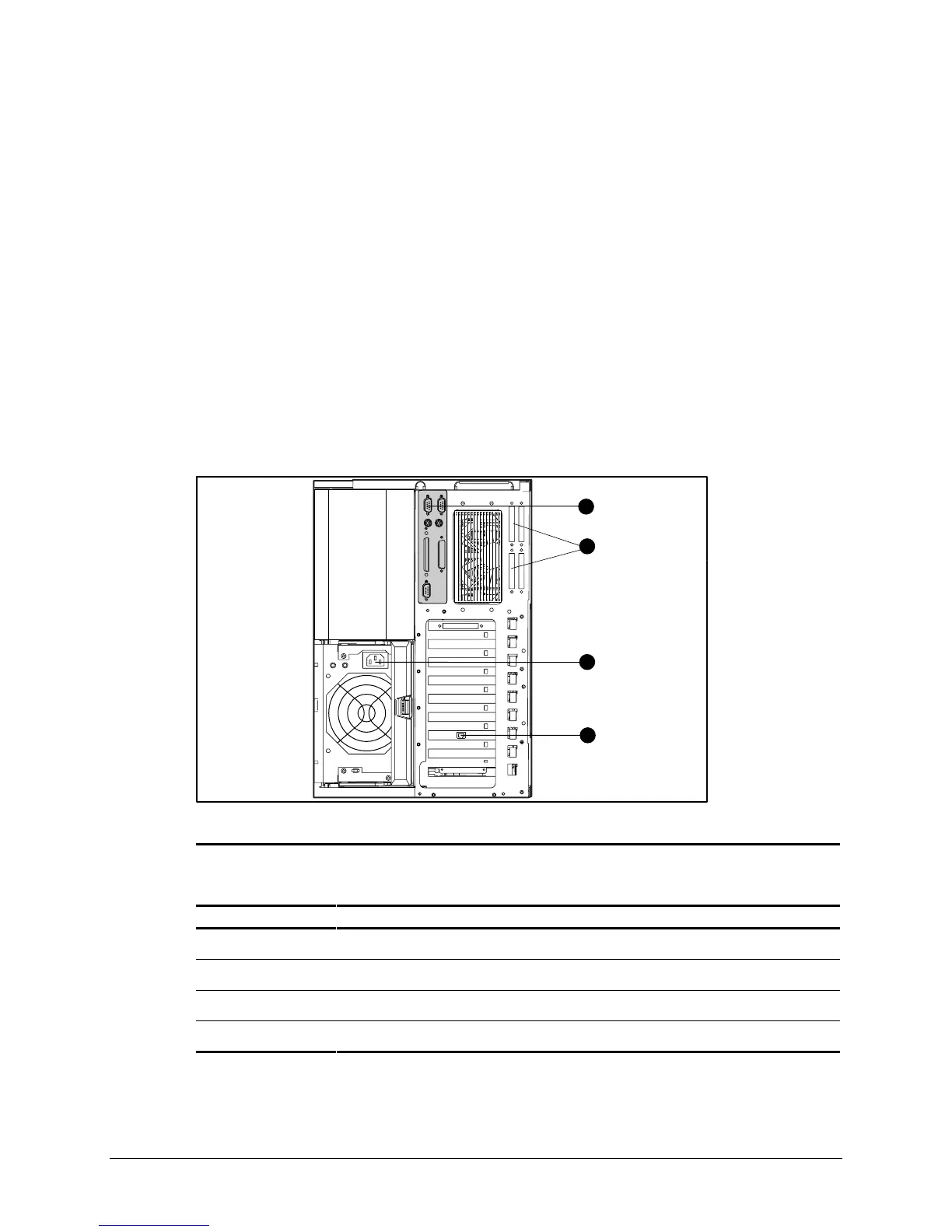

Figure 4-1 shows the rear panel connectors for ProLiant 3000 Servers. Table 4-1 gives the
corresponding connector descriptions.
3
1
4
2
Figure 4-1. Rear panel connectors
Table 4-1
Rear Panel Connectors
Reference Description
1 System I/O board rear connectors (See “System I/O Board Connectors” later in this chapter)
2 SCSI knockouts
3 AC power cord connector
4 Netelligent 10/100 TX UTP PCI controller connector (RJ-45)
