2-16 Removal and Replacement Procedures
Front Fan(s)
The front fans are removed for replacement or to replace the Integrated Management Display,
the fan baffle, or the drive cage.
To remove a front fan(s):
1. Perform the preparation procedures. See “Preparation Procedures” earlier in this chapter.
2. Remove the side access panel. See “Side Access Panel” earlier in this chapter.
3. Disconnect the fan cable from the system I/O board.
4. Push up on the latch on the side of the fan
1
.
5. Pull the fan straight out of the chassis
2
.
1
2

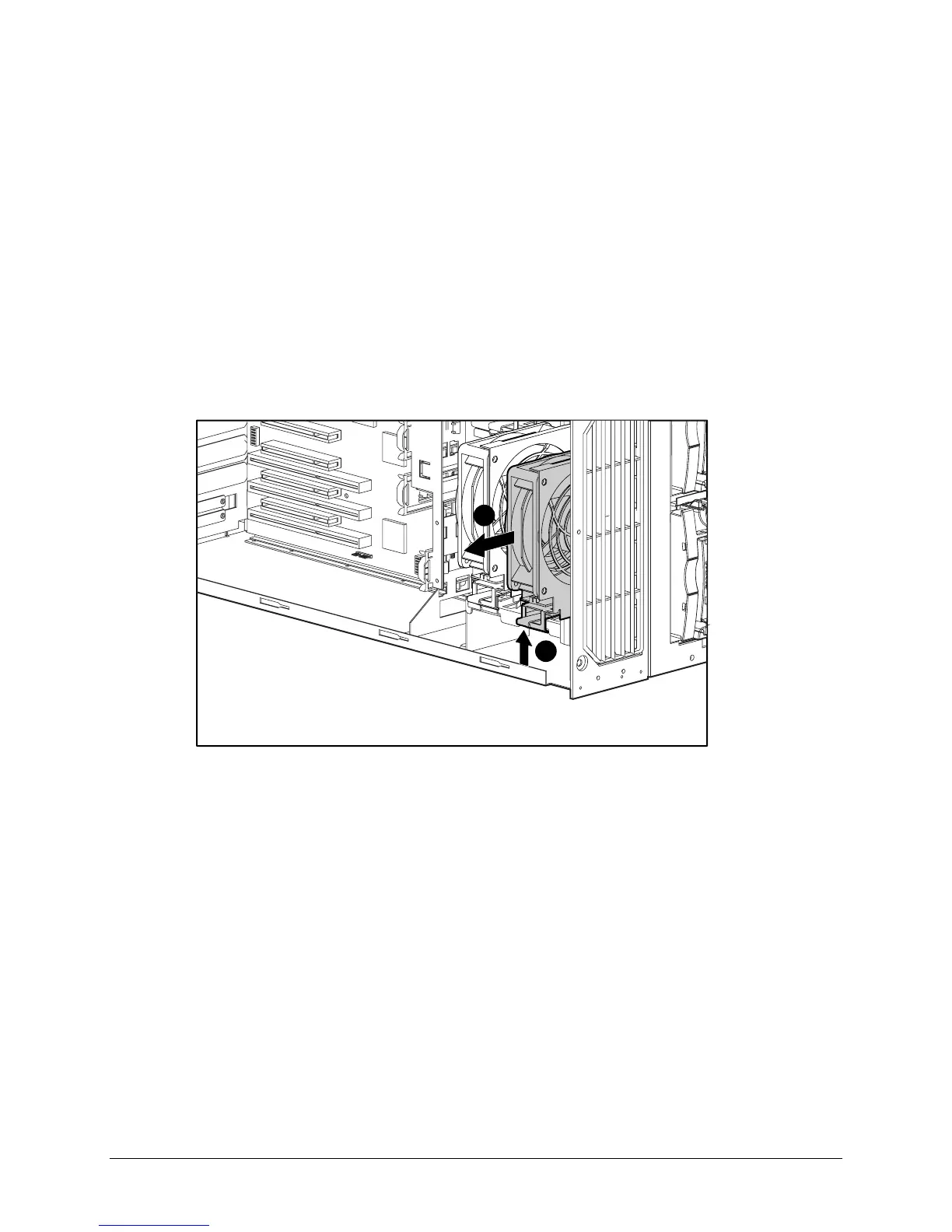

Figure 2-12. Removing a front fan
Reverse steps 1 through 5 to replace a front fan.
