Compaq ProLiant 3000 User Manual

2-36 Removal and Replacement Procedures
Processor Power Module
To remove a processor power module:
1. Perform the preparation procedures. See “Preparation Procedures” earlier in this chapter.
2. Remove the side access panel. See “Side Access Panel” earlier in this chapter.
3. Remove the top access panel. See “Top Access Panel” earlier in this chapter.
4. Push the two locking clips out to release the processor power module
1
.
5. Remove the processor power module
2
.
NOTE: The processor power module may be a different model than illustrated.
1
2

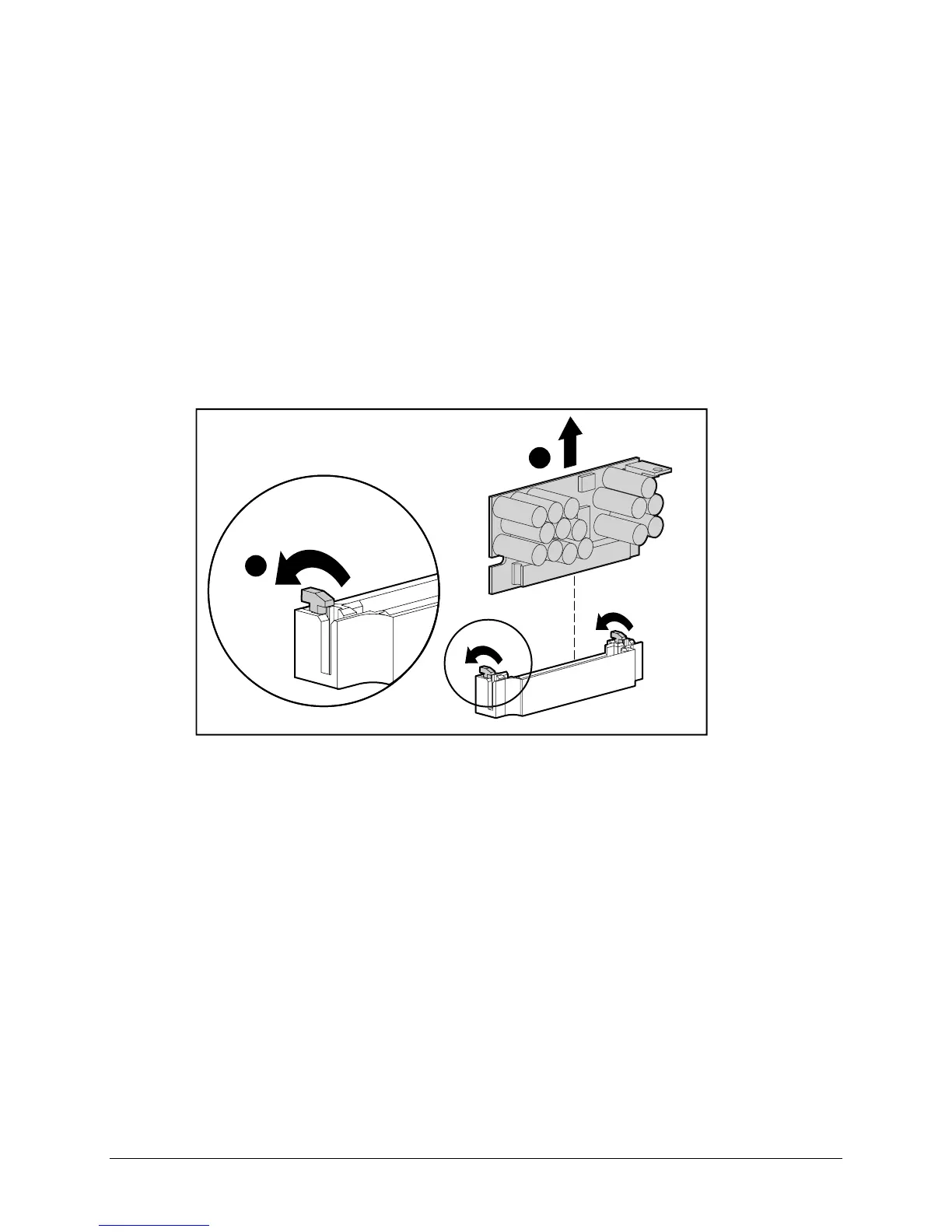

Figure 2-32. Removing the processor power module.
Reverse steps 1 through 5 to replace the processor power module.
NOTE: The locking clips lock into place when the processor power module is properly seated.
