Compaq ProLiant 3000

4-8 Connectors, Switches, Jumpers, and LEDs
Power Switch LED
The power switch LED is located on the front of the server beneath the power switch and
illuminates when the power is on. Figure 4-10 shows the location of the power switch LED for
ProLiant 3000 Servers.

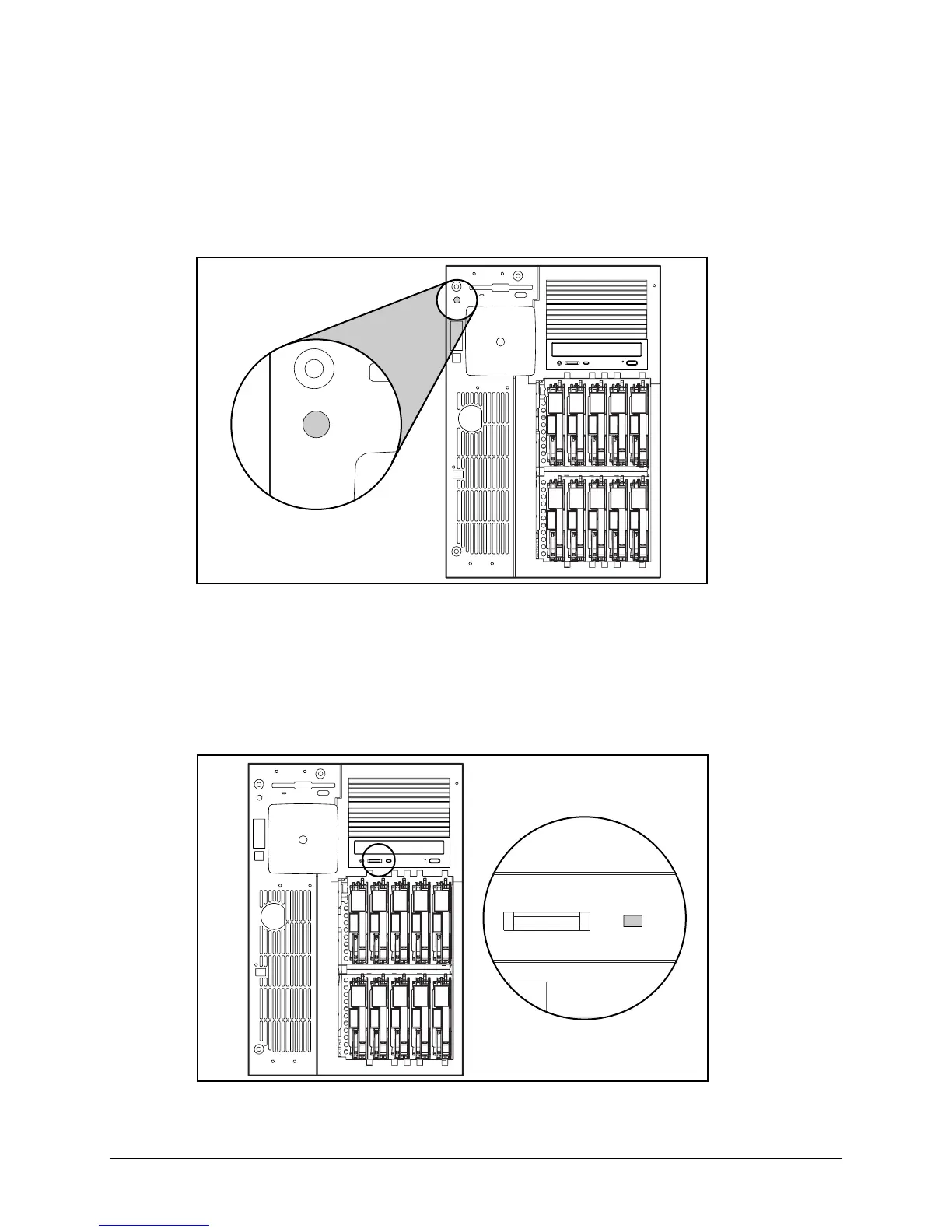

Figure 4-10. Power switch LED
CD-ROM Drive LED
The CD-ROM drive LED is located on the front of the CD-ROM drive near the volume wheel.
The LED illuminates green when the CD-ROM drive is in operation. Figure 4-11 shows the CD-
ROM drive LED location for ProLiant 3000 Servers.
Figure 4-11. CD-ROM Drive LED
