2-33
Compaq ProLiant 3000 Servers, for use with Intel 350 MHz or greater processor-based servers only, Maintenance and Service Guide
Smart Array 3200 Controller
The Smart Array 3200 Controller is removed for replacement or when replacing the I/O board or
the drive cage assembly.
To remove the Smart Array 3200 Controller:
1. Perform the preparation procedures. See “Preparation Procedures” earlier in this chapter.
2. Remove the side access panel. See “Side Access Panels” earlier in this chapter.
3. Disconnect any external cables from the PCI controller.
4. Open the slot release lever by pressing on its ribbed area
1
.
5. Grasp each end of the PCI controller, then gently remove it
2
without touching other
installed boards.
5
1
2

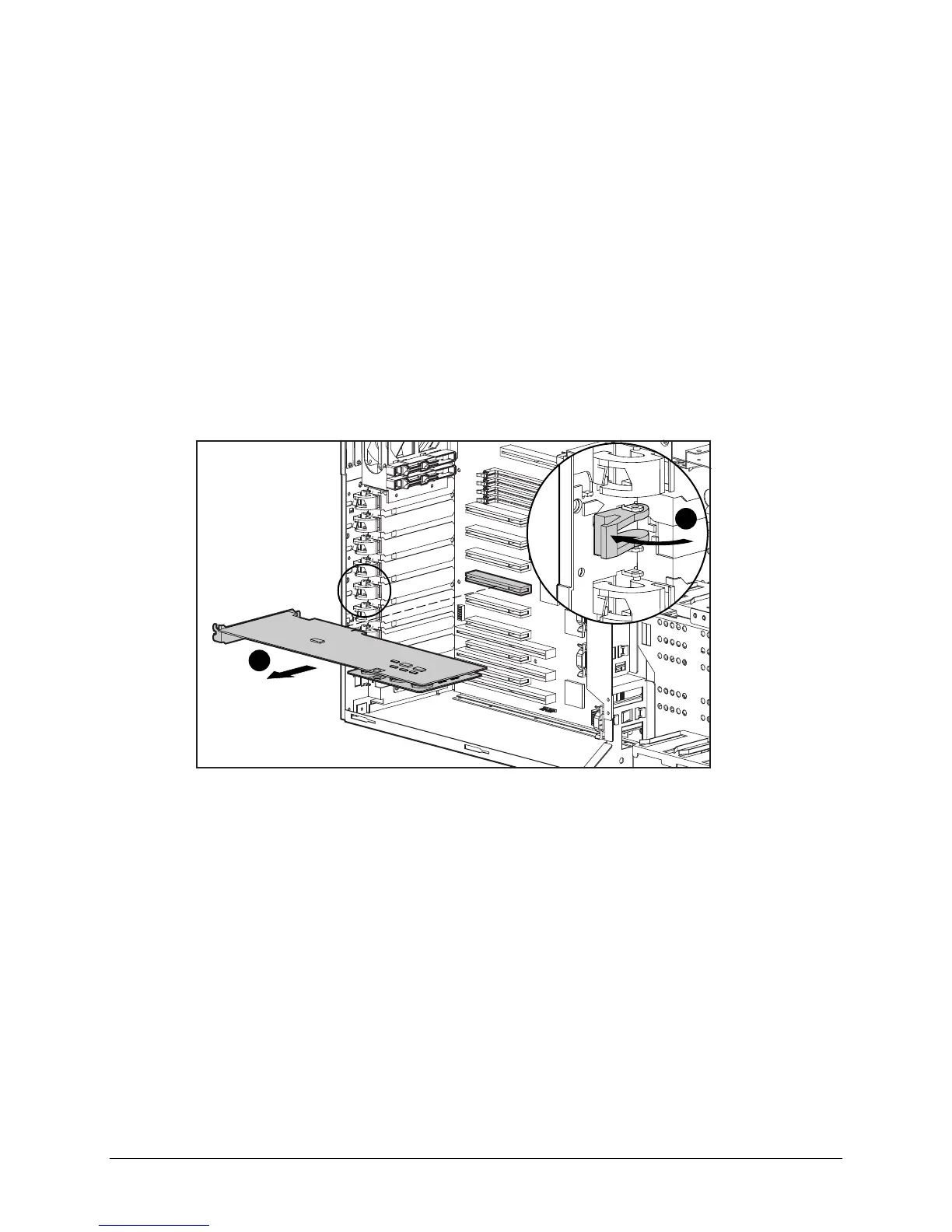

Figure 2-29. Removing the Smart Array 3200 Controller
Reverse steps 1 through 5 to replace a drive array controller. The Smart Array 3200 Controller
should only be used on Ultra2 drive cage assemblies. Refer to the Smart Array 3200 Controller
Reference Guide for further information.
