2-12 Removal and Replacement Procedures
Side Access Panel
WARNING: To reduce the risk of personal injury from hot surfaces, allow the
internal system components to cool before touching them.
To remove the side access panel:
1. Perform the preparation procedures. See “Preparation Procedures” earlier in this chapter.
2. Loosen the two screws at the front on the chassis with either a T-15 or
Phillips screwdriver.
3. Slide the side access panel backward, then pull it away from the chassis.
COMPACT

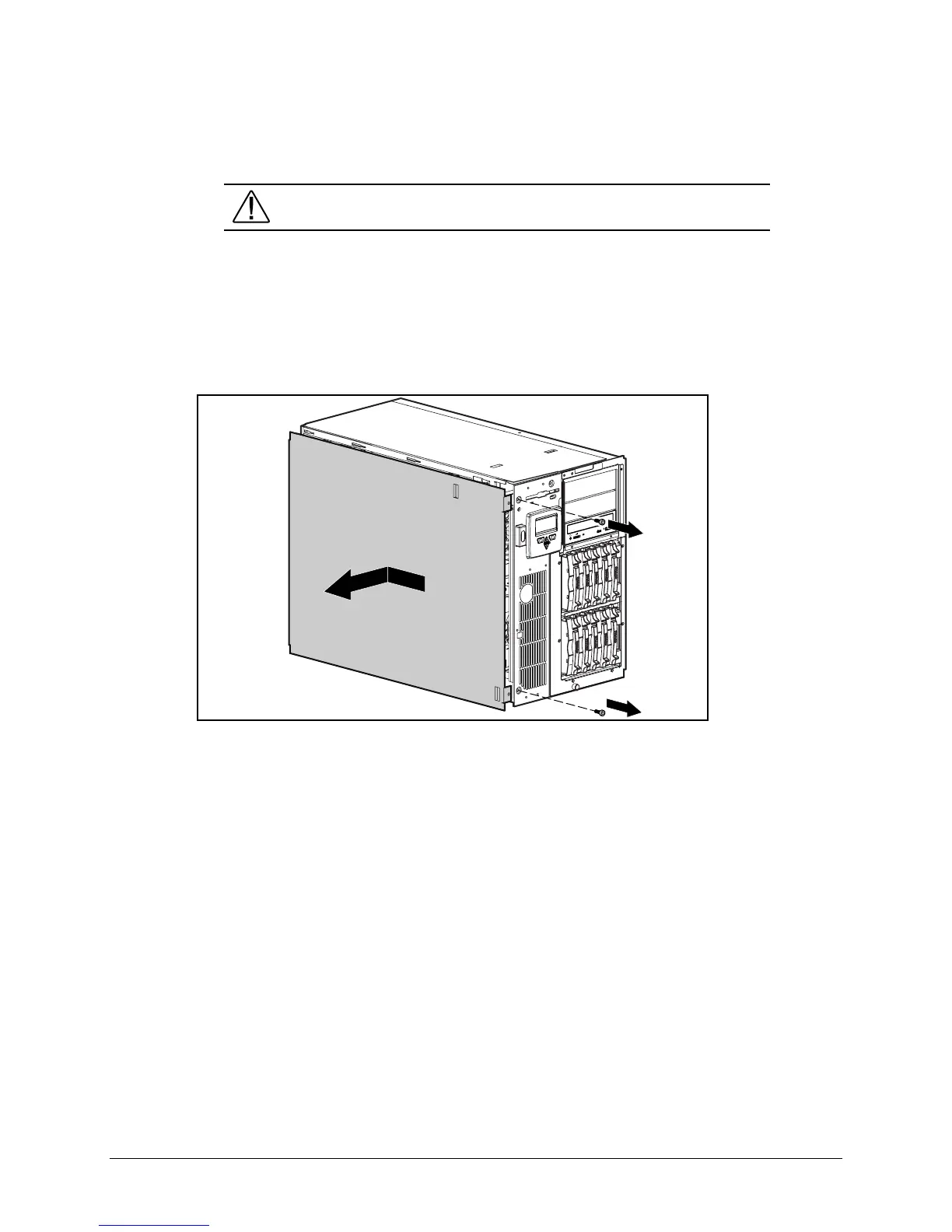

Figure 2-8. Removing the side access panel
NOTE: Drive cage may not be as illustrated.
Reverse steps 1 through 3 to replace the side access panel.
