Compaq ProLiant 3000 User Manual

2-30 Removal and Replacement Procedures
Memory
Compaq ProLiant 3000 Servers ship standard with either 128 MB or 256 MB Synchronous
DRAM (SDRAM) Dual Inline Memory Modules (DIMMs)installed in the DIMM 5 socket
location. Memory can be expanded to a maximum of 4 GB. Install SDRAM DIMM modules one
at a time in the proper socket. See Figure 2-27 and Table 2-2.
The following guidelines MUST be followed when installing or replacing memory:
■ Use only 32-, 64-, 128-, 256- or 512-MB SDRAM DIMMs.
■ Use Compaq SDRAM DIMMs only.
■ SDRAM DIMMs must all be rated 100 MHz and of the same manufacturer.
The recommended SDRAM DIMM installation order is:
■ First SDRAM DIMM in socket 5
■ Second SDRAM DIMM in socket 1
■ Third SDRAM DIMM in socket 6
■ Fourth SDRAM DIMM in socket 2
■ Fifth SDRAM DIMM in socket 7
■ Sixth SDRAM DIMM in socket 3
■ Seventh SDRAM DIMM in socket 8
■ Eighth SDRAM DIMM in socket 4

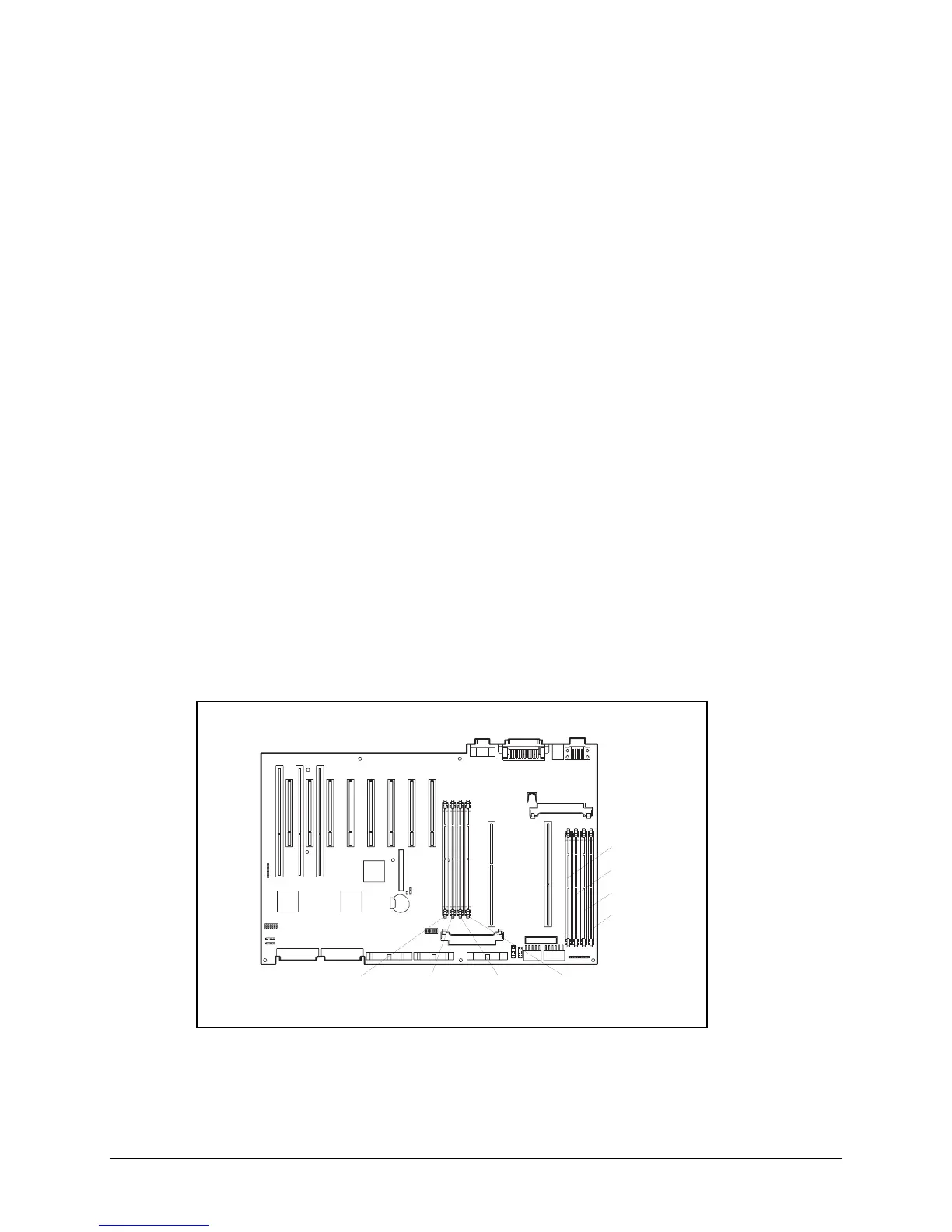

The following drawing shows the SDRAM DIMM socket locations.
SOCKET 1 SOCKET 2 SOCKET 3 SOCKET 4
SOCKET 5
SOCKET 6
SOCKET 7
SOCKET 8
Figure 2-27. SDRAM DIMM socket locations
