Compaq ProLiant 3000 Servers, for use with Intel 350 MHz or greater processor-based servers only, Maintenance and Service Guide
1
on
2
450 MHz
3456

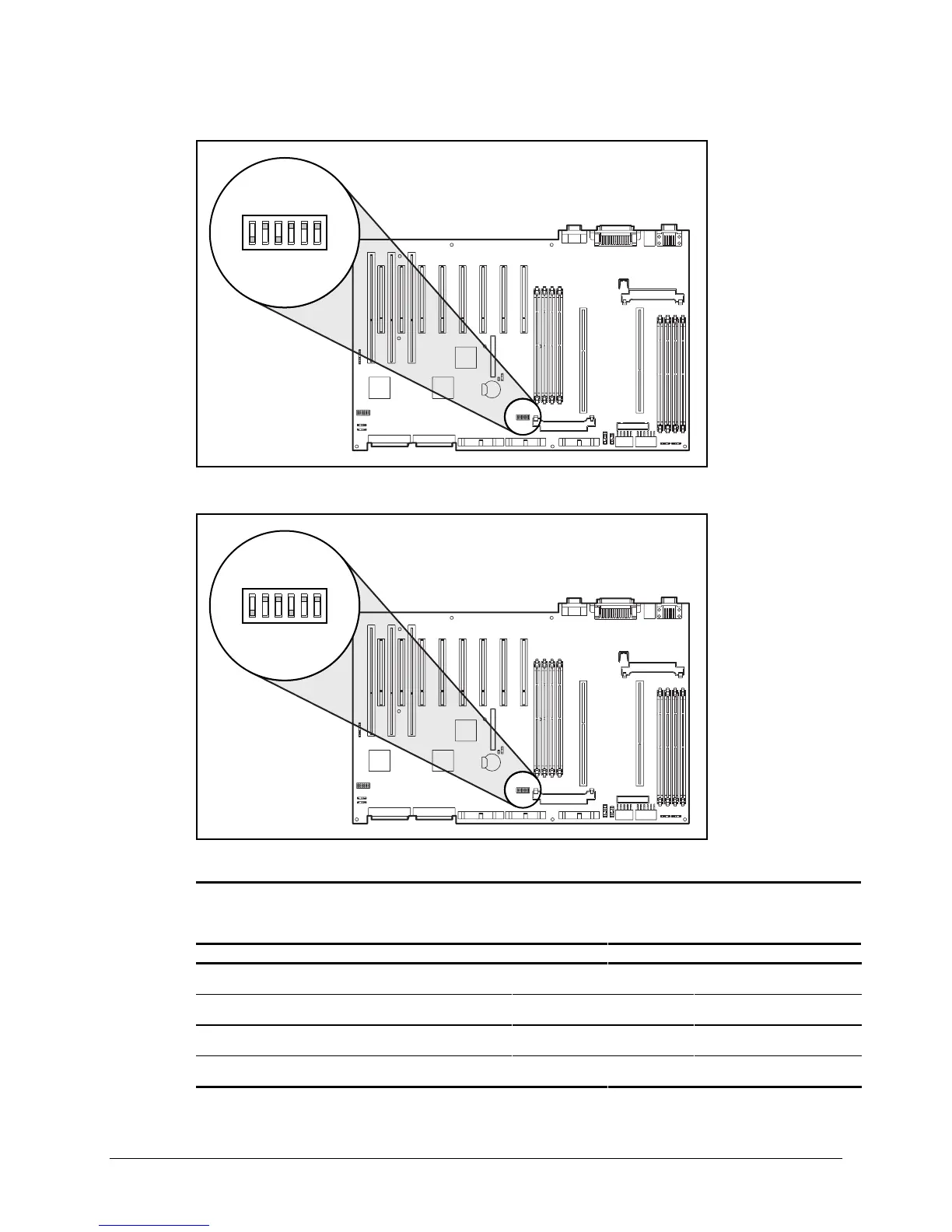

Figure 4-6. 450 MHz processor switch location and default settings
1
on
2
500 MHz
3456
Figure 4-7. 500 MHz processor switch location and default setting
Table 4-4
Processor Switch Settings
Processor Speed SW1 SW2 SW3 SW4 SW5 SW6
350 MHz ON ON OFF OFF OFF OFF
400 MHz ON OFF ON ON OFF OFF
450 MHz ON OFF ON OFF OFF OFF
500 MHz ON OFF OFF ON OFF OFF
