2-44 Removal and Replacement Procedures
3. Connect the battery cable to battery header E9 on the system board.
4. Remove the adhesive backing from the hook-and-loop fastener strip on the replacement
battery, then place the battery and the hook-and-loop fastener strip as indicated in the
following illustration.

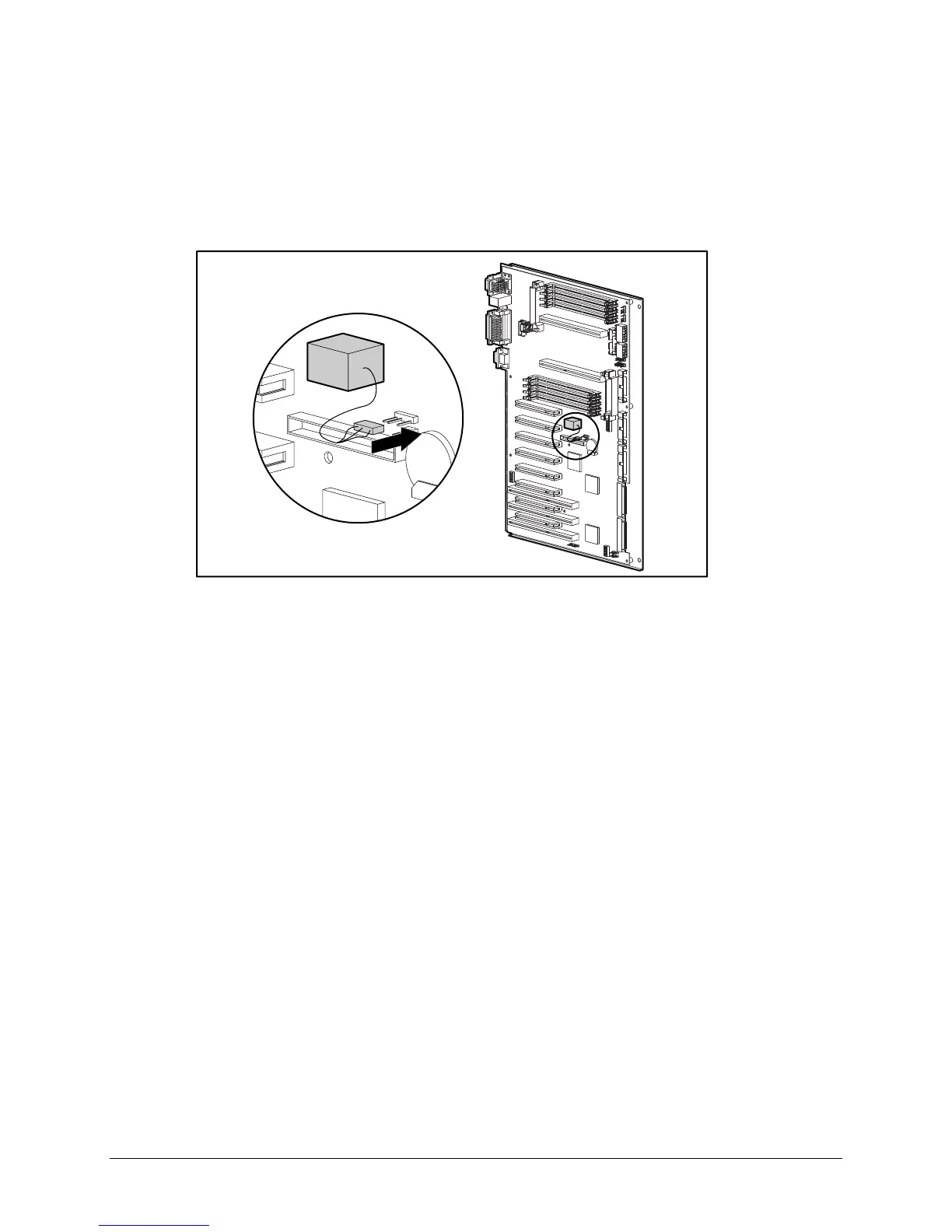

Figure 2-39. Installing the external replacement battery
5. Change toggle 1 on switchbank SW2 to the OFF position on the system board.
See Chapter 4, “Connectors, Switches, Jumpers, and LEDs” for more information on the
external replacement battery.
6. Place the label included with your battery kit on the back of your server above the
power connector.
7. Run the Compaq System Configuration Utility to reconfigure the system. See Chapter 3,
“Diagnostic Tools,” for more information.
NOTE: If the replacement battery fails or is defective, properly dispose of the failed battery and
repeat steps 3 through 7.
