17.2.2.2 Satellite/HDLC Interface Page

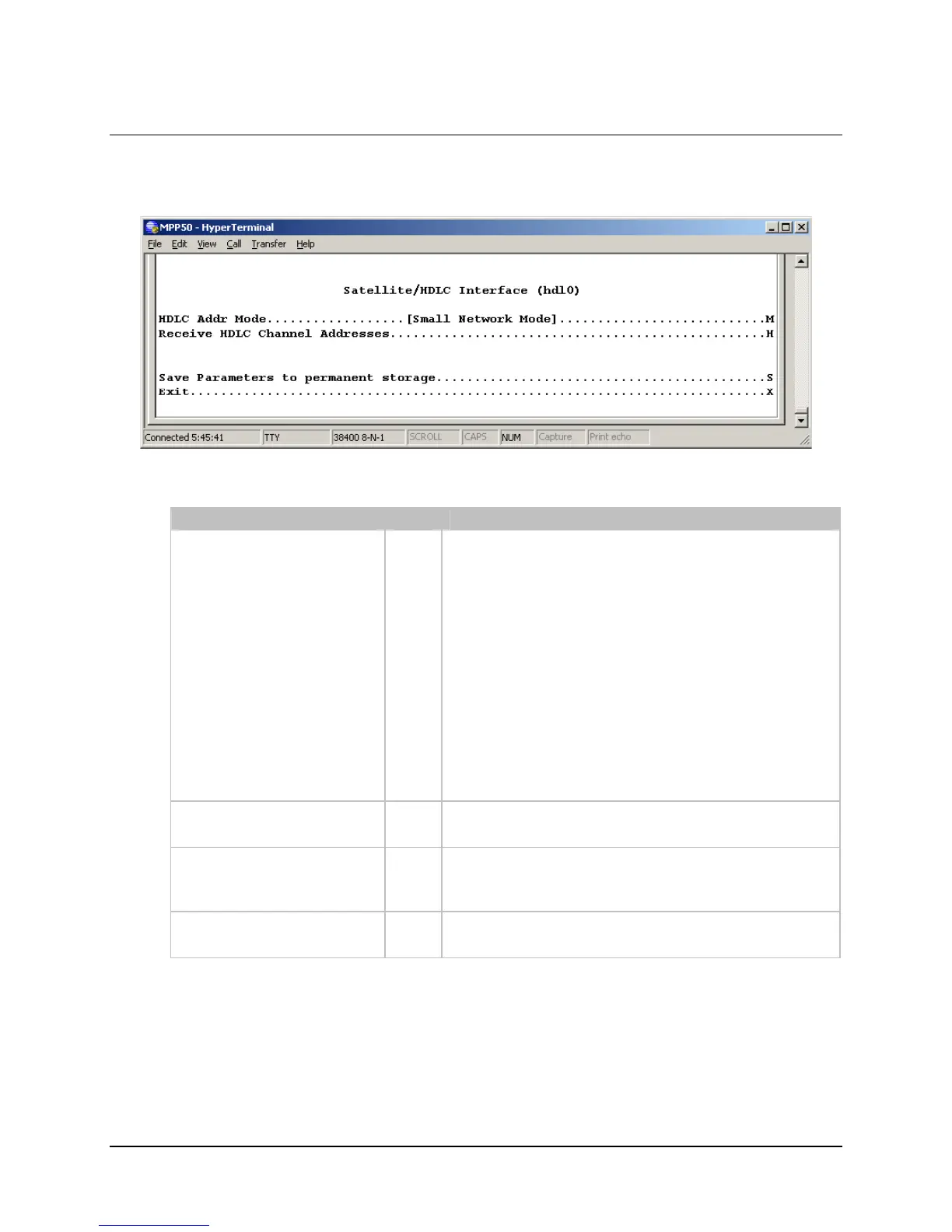

The Satellite/HDLC Interface) page is activated from the Interface Configuration page.
The Satellite/HDLC Interface page contains the following options/fields:
Menu Options/Fields Entry Description
HDLC Addr Mode
Read
Only
The HDLC Address mode is configured via the
Working mode which is found on the Administration
page.
Point-To-Point Mode – In this mode of operation, no
HDLC address is transmitted over the satellite link.
The restrictions on using this mode are that it can only
be used for pure Point-to-Point configurations.
Small Network Mode (up to 254 addresses) - In this
mode of operation a single byte HDLC address will be
transmitted over the satellite link (0x1 – 0xFE).
Large Network Mode (up to 32766 addresses) - In this
mode of operation a two byte HDLC address will be
transmitted over the satellite link (0x1 – 0xFFFE).
Receive HDLC Channel
Addresses
H
Activates Receiver HDLC Addresses page.
Save Parameters
S
This option allows a user to save the current
configuration to permanent storage. This configuration
will be restored on each successive power cycle.
Exit
X
This option allows a user to exit the current menu and
return to its parent menu.
