CDM-570/570L Satellite Modem with Optional IP Module Revision 4
IP Module - CLI and Telnet Operation MN/CDM570L.IOM

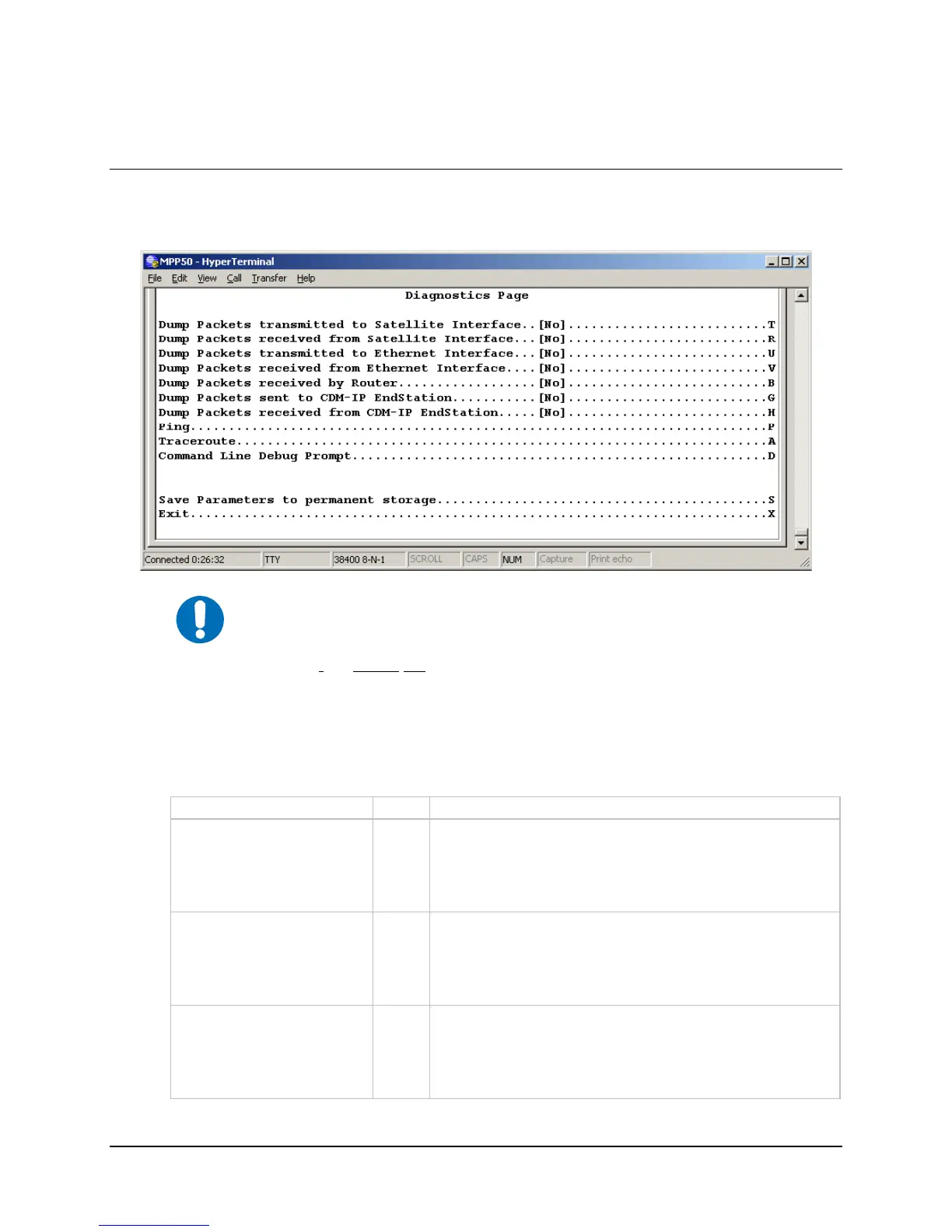

17.2.9.5 Diagnostics Page
The Diagnostics Page is activated from the Operations and Maintenance Page.
IMPORTANT
Using Dump Packets Diagnostics Utilities
1. The Dump Packet Utilities will display a hexadecimal representation of each
packet
and should not be used when the IP Module is on a “live” network.
2. Selecting the menu option a second time terminates the dump operation. Each
selection toggles the value of the dump engine.
The Diagnostics Page contains the following options/fields:
Menu Options/Fields Entry Description
Dump Packets transmitted
to Satellite Interface
T
Toggles [Yes] and [No]
Executing this menu option forces the
IP Module to
dump a hexadecimal representation of each packet that
it transmits over the Satellite Interface.
Dump Packets received
from Satellite Interface
R
Toggles [Yes] and [No]
Executing this menu option forces the
IP Module to
dump a hexadecimal representation of each packet that
it receives from the Satellite Interface.
Dump Packets transmitted
to Ethernet Interface
U
Toggles [Yes] and [No]
Executing this menu option forces the
IP Module to
dump a hexadecimal representation of each packet that
is transmitted to the Ethernet Interface.
17–75
