134 Condair CDA and CDA-S

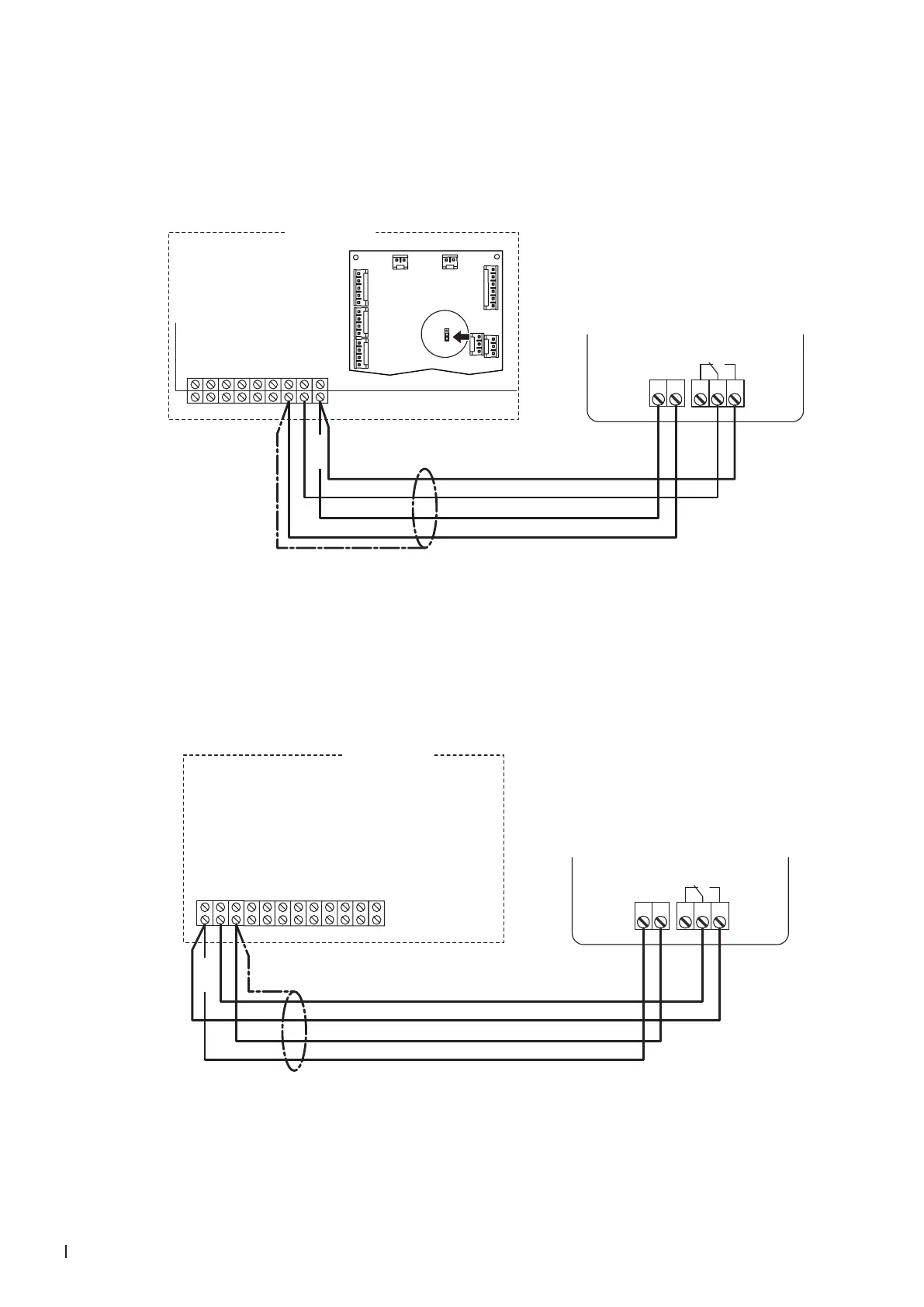

10.7.5 Connecting the Condair CDA to the Condair GS
1. Connect the Condair CDA to the corresponding terminals of the terminal block of the Condair GS
according to the wiring diagram below.
Note: The voltage supply of the Condair CDA is established via the terminals "24 VAC" and "GND"
of the terminal block or via an external 24 V AC/DC voltage supply.
1
2
3
4
5
67
89
24VAC
Safety Loop
GND GND
FTBD
CH1 CH2
+24 VDC
Condair GS
J1
J10
J3
J7
J8
J1
J2
JP2
24V 10V
12 11 141 2
L1 N
NC C NO
CDA
24 VAC
Driver board
Condair GS
10.7.6 Connecting the CDA to the Condair SE
1. Connect the Condair CDA to the corresponding terminals of the terminal block of the Condair SE
according to the wiring diagram below.
Note: The voltage supply of the Condair CDA is established via the terminals "24 VAC" and "GND"
of the terminal block or via an external 24 V AC/DC voltage supply.
12
11
10
9
8
76
54
321
24VAC 0-10V VDC Out On/Off Loop Ground Actuator Power Actuator Power Control Signal Limit Signal (SETC only) Full Tank Blowdown Ground Ground 5 VDC
Condair SE
12 11 141 2
L1 N
NC C NO
CDA
24 VAC
